1) Theory — what the stabilizer (sway) bar does
- The stabilizer bar is a torsion spring that ties the left and right suspension together. When one wheel moves up relative to the other (body roll), the bar twists and applies an opposing moment to reduce roll.
- It transmits lateral load through end links and is isolated from the chassis by bushings and brackets. The system needs a rigid mechanical connection (end links) and controlled interface (bushings) to work.
- Failures: worn/deteriorated bushings allow relative motion between bar and chassis (noise, reduced torque transfer). Broken/loose end links decouple the bar (no anti-roll effect, clunks). Bent bar or seized mounts change effective stiffness or prevent twist.
2) Diagnose and plan (do this first, theory applied)
- Symptom checks: push down on one corner and watch body roll and listen for clunks; drive test low-speed turns for clunking or excessive lean.
- Visual/feel: inspect bushings for cracks, flat spots, missing rubber; check end links for play (rock the link relative to arm and bar); look for bent bar or seized bracket bolts.
- Theory: diagnosis determines which element is restoring the torque path. End-link failure = no connection; bushing failure = noisy/sloppy connection but still partially effective.
3) Safety & vehicle setup (why it matters)
- Lift vehicle safely on ramps or jack stands. Support but leave wheels either on ground or at ride height per what you’re replacing: to set bushings correctly, the suspension should usually be at normal ride height when you tighten bushings/brackets.
- Theory: bushings compressed or tightened with the suspension unloaded will preload/twist them, causing noise and binding. End links and brackets should be torqued at ride height so the bar sits at correct neutral twist.
4) Remove components in logical order (how removal helps)
- Remove end links first (disconnect bar from control arms). This releases torsional load and makes bar removal easier. For ball-joint style links, hold stud while removing nut; for threaded links, unthread them. Use penetrating oil/heat for seized hardware.
- Remove bracket bolts and slide out brackets/bushings. Then lower and remove the bar.
- Theory: removing end links isolates the bar and lets you inspect the bar for cracks or bends and inspect the mating surfaces. It also prevents damage to control arms when removing/ reinstalling bushings.
5) Inspect parts (what you’re looking for and why)
- Bushings: look for splits, flat spots, hardening or collapse. If polyurethane, check wear and lubrication. Worn bushings allow bar to rotate relative to frame and create noise and loss of stiffness.
- End links: check for ball-joint play, worn bushings, threaded damage or breakage. A failed link removes the torque path.
- Bar and brackets: check for bends, corrosion where the bracket seats (uneven seating creates point loads and noise).
- Theory: determine which parts are life-limited and must be replaced to restore the original mechanical path.
6) Replace parts (what to install and why)
- Use matched parts: new OEM-style rubber bushings or polyurethane if you accept a firmer/noisier result. Replace end links with correct-length links (upgraded links are OK if geometry matches). Replace corroded brackets/bolts.
- Lubricate polyurethane with appropriate grease; do NOT grease rubber. Use anti-seize on bolts if desired.
- Theory: new bushings restore the intended compliance at the chassis interface so the bar stores and returns torsional energy predictably. New end links restore a stiff positive connection to the control arm so the bar can transmit torque.
7) Reassembly order and critical settings (exact order matters)
- Reposition bar and place bushings over it in their original orientation. Fit brackets and loosely install bolts. Attach end links to control arms and to the bar, leaving their nuts/bolts finger-tight.
- Lower vehicle to ride height (or put wheels back on ground) before final torquing of the bushing bracket bolts and end-link fasteners. Then torque to factory specifications.
- Theory: tightening bushings/brackets at ride height removes preload/twist from bushings so they sit neutrally. Proper torque ensures clamping without crushing or allowing play; correct end-link tightness ensures no free play but allows necessary articulation at the link joints.
8) Test & validate
- Bounce each corner, recheck for play and noise. Road test through turns and bumps to confirm clunk is gone and roll is reduced. Re-check torque after a short drive.
- If symptoms persist, re-inspect for missing steps: incorrectly tightened bushings, wrong-length end links, damaged control-arm bushings or other suspension wear that mimics sway-bar failure.
9) How the repair fixes the fault — concise physics
- Replacing worn bushings removes unwanted degrees of freedom between bar and frame, stopping bar rotation and noise and restoring the transmitted torque that resists roll.
- Replacing broken or loose end links reestablishes the mechanical path from wheel/arm movement into bar twist, restoring anti-roll function.
- Correct mounting and torque at ride height prevent preloading/twisting of the bar/bushings so the bar behaves as designed across its working range.

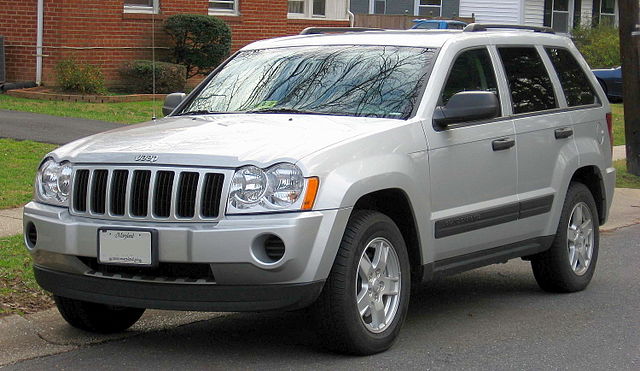

Jeep WH/WK notes (practical theory-relevant points)
- These models commonly fail at the front links and bushings; corroded bracket bolts are frequent—seized fasteners can mask a simple bushing/link failure.
- Upgrading to heavy-duty links or polyurethane changes system stiffness and NVH (noise, vibration, harshness): increased roll resistance but more noise over small inputs. Consider trade-offs.
