The Land Rover Freelander is a lightweight sport utility automobile (SUV) produced by the British maker Land Rover, in both two-wheel and four-wheel drive versions. The current generation is sold as the LR2 in North America and as the Freelander 2 in Europe. It uses a monocoque (unibody) framework, in common with almost all other 'soft roaders' in its class, but unlike traditional SUVs that were built with body-on-frame designs.Market research by the Rover Group in the late 1980s advised that Land Rover could enter the compact SUV market segment. In the early 1990s, the Rover Group had a restricted product development budget and looked for a companion to develop the project, which was codenamed CB40 (after Canley Building 40, where the concept was initially developed). Rover's then-partner Honda chose and declined to develop its own CR-V model that was launched in 1997.Rover decided to go it alone with the CB40, using present parts and components, as it had done with the MGF roadster. When BMW took over Rover Group in 1994, the CB40 project received the capital it needed to proceed.The Freelander had been launched in late 1997. It became Europe's best-selling four-wheel drive model until 2002. The last Freelanders in North America were sold as 2005 models.

There were a variety of models, based around five-door estate and three-door softback (semi-convertible), hardback, and commercial (van-like) variations. In 2004, Land Rover introduced an improved and upgraded form of the Mark I; changes included a new inside and major outside revisions, including a new face and rear.The three-door model had been available in E, S, SE, Sport and Sport Premium trim and the five-door model in available in Sport, S, SE, HSE, Sport and E Premium trim.

Engine choices include:

1.8 litre I4 Rover K-Series petrol (1997Ã2006), badged as '1.8i' (Not sold in North America)

2.0 litre I4 Rover L-series diesel (1997Ã2000), badged as 'Di' or 'XDi'

2.0 litre I4 BMW M47 diesel (2001Ã2006), badged as 'TD4'

2.5 litre V6 Rover KV6 Engine petrol (2001Ã2006), badged as 'V6'

Manual gearboxes dominated the early designs, but automatic Tiptronic-style gearboxes became increasingly popular and were standard on the V6.Hill Descent Control (HDC) allows smooth and managed hill descent in rough terrain without the motorist needing to touch the brake pedal. When on, the vehicle will descend using the ABS brake system to control each wheel's speed. If the vehicle accelerates without motorist input, the system will automatically apply the brakes to slow down to the desired vehicle speed. Cruise control buttons can adjust the speed to a comfortable level. Applying force to the accelerator or brake pedal will override the HDC system whenever the driver requires. The other name for this might be Hill Mode Descent Control.With Hill Descent Control drivers can be confident that even the ride down hills with slippery or rough terrain will be smooth and controlled, and that they will have the ability to keep control as long as sufficient traction exists. Four-wheel-drive (4WD) and All Wheel Drive (AWD) vehicles, these types of as Ford Territory, may have a Hill Descent Control system installed, using the ABS stopping to control the car's movement downhill, initially developed by Bosch for Land Rover. The system can be controlled, usually by the Cruise Control buttons near or on the steering wheel.Land Rover originally developed HDC for use on the Freelander model which lacks the low range gears usually provided on 4x4 vehicles. At the time it was derided by enthusiasts, and many claimed its set speed was too high for a controlled descent in hard conditions. Later implementations such as the Range Rover combine HDC with Traction Control and low-range gears, and also have actually reduced the set speed to slower than walking pace for extra control.Anti-lock braking system (ABS) is an automobile safety system that allows the wheels on an engine vehicle to maintain tractive contact with the road surface according to driver inputs while braking, preventing the wheels from locking up (ceasing rotation) and avoiding uncontrolled skidding. It is an automatic system that uses the principles of threshold braking and cadence braking which were practiced by skillful drivers with previous generation braking systems. It does this at a much faster rate and with much better control than a motorist could manage.ABS generally offers improved vehicle control and decreases stopping distances on dry and slippery surfaces for many drivers; however, on loose areas like gravel or snow-covered ABS, pavement can significantly increase braking distance, although still improving car control.Since initial widespread use in production cars, anti-lock braking systems have evolved considerably. Recent versions not only prevent wheel lock under braking, but additionally electronically control the front-to-rear braking system bias. This function, according to its particular capabilities and implementation, is known as electronic brakeforce distribution (traction, EBD) control system, emergency brake assist, or electronic security control (ESC).

Land Rover Freelander 1997-2006 factory workshop and repair manual 1998 1999 2000 2001 2002 2003 2004 2005 Download

The history of Land Rover dates back to the 1940s, when the Rover Company, a British car manufacturer, began developing a new type of vehicle that could be used on farms and in other rugged terrain. In 1948, the company launched the Land Rover, a boxy, four-wheel drive vehicle that quickly gained a reputation for its durability and off-road capabilities.

The original Land Rover was based on a Jeep design and featured a lightweight aluminum body mounted on a steel frame. It was powered by a 1.6-liter four-cylinder engine and had a top speed of around 50 mph. Despite its simplicity, the Land Rover quickly gained popularity among farmers, explorers, and other off-road enthusiasts.

In the 1950s, Land Rover introduced several updates and new models to the lineup. The Series II was launched in 1958, featuring a larger 2.25-liter engine and improved suspension. The Series IIA, launched in 1961, was an even more refined version and was available in a range of body styles, including a pickup truck, a station wagon, and a soft-top version.

In 1970, Land Rover launched the Range Rover, a luxury off-road vehicle that was intended to appeal to a more affluent consumer. The Range Rover featured a V8 engine, power-assisted brakes and steering, and a more comfortable interior. It was an instant success and helped to establish Land Rover as a major player in the luxury SUV market.

In the 1980s, Land Rover continued to expand its lineup with the launch of the Discovery, a midsize SUV that was designed to be more affordable and practical than the Range Rover. The Discovery was a hit with buyers and helped to establish Land Rover as a major player in the SUV market.

In the 1990s, Land Rover was acquired by BMW, which invested heavily in the brand and introduced a number of new models, including the Freelander, a compact SUV, and the Defender, a rugged, off-road vehicle. BMW's ownership of Land Rover was short-lived and in 2000, Ford Motor Company acquired the brand. Under Ford's ownership, Land Rover continued to develop and introduce new models, such as the LR3 and LR4.

In 2008, Tata Motors, an Indian multinational automotive manufacturing company, acquired Land Rover from Ford. Since then, the company has invested heavily in the brand and introduced several new models, such as the Evoque and the Velar, which helped to further strengthen Land Rover's position in the luxury SUV market.

Today, Land Rover continues to be a popular brand, known for its luxury and off-road capabilities. The company produces a range of popular models, including the Range Rover, Discovery, and Defender. Land Rover has a strong reputation for producing high-quality vehicles that are built to last and are capable of tackling even the toughest off-road conditions.

In summary, Land Rover has a rich history, starting as a rugged boxy vehicle designed to be used on farms and in other rugged terrain, evolving over time to include a range of luxury models such as the Range Rover, Discovery, and Defender. Land Rover has changed hands several times, being owned by Rover company, BMW, Ford and Tata Motors. The company has a strong reputation for producing high-quality vehicles that are built to last and are capable of tackling even the toughest off-road conditions.

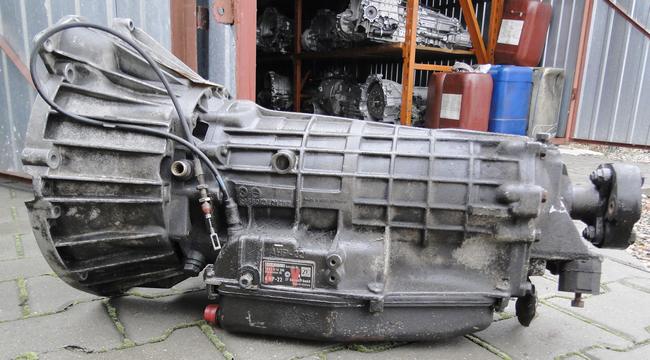

1) Verify symptoms and scope
- Do: Road-test and note exactly when overdrive fails (won’t engage, slips under load, drops out, delayed, harsh), record engine rpm/vehicle speed, and check transmission DTCs and live data (requested gear, line pressure, solenoid commands).
- Theory: Different failure modes point to different systems. No engagement → control/valve/actuator fault. Engagement but slip → hydraulic leakage or worn friction. Intermittent drop-out → one‑way clutch/sprag or intermittent hydraulic loss.

2) Check fluid and filter first
- Do: Inspect fluid level, color/odor, metal particles, and replace filter and fluid if dirty/burnt.
- Theory: Low/contaminated fluid reduces apply pressure and destroys clutch friction material; replacing filter/fluid removes contamination and restores correct fluid properties required for proper clutch engagement.

3) Electrical & control checks
- Do: Read solenoid resistances and compare to spec, verify wiring/connector integrity, monitor solenoid duty/command vs actual pressure.
- Theory: Modern ZF units use solenoids/TCU commands to modulate OD apply. An open/shorted solenoid or bad wiring means the hydraulic circuit never gets commanded/regulated, so overdrive won’t be applied regardless of internal condition.

4) Static and dynamic hydraulic tests
- Do: Measure line/gear apply pressures at the valvebody/test ports with gear commanded (park, drive, OD). Perform stall/gear‑apply tests if safe.
- Theory: Apply pressure is what compresses clutch pack or actuates servo. Low pressure at the OD apply circuit indicates pump wear, regulator/valvebody leaks, or internal bypasses; restoring pressure fixes ability to clamp clutches.

5) Valvebody and solenoid pack inspection/rebuild
- Do: Remove valvebody, inspect valves/bores for scoring, soft spots, plugged passages, check OD shift valve, accumulators and springs; replace worn valves, springs, solenoids, and gaskets or get a valvebody rebuild kit.
- Theory: The valvebody routes and meters hydraulic flow. Sticking valves, worn bores or weak accumulator springs allow pressure bleed or delayed apply. Cleaning/replacing these restores correct metering and timing so OD is supplied with full apply pressure.

6) If valvebody repair doesn’t cure, inspect pump and regulator
- Do: Check pump output and torque converter pressure, inspect pump wear ring and rotor clearances; replace pump or wear components if pressures are low.
- Theory: The pump creates system pressure. Excessive pump clearance or worn regulator lets pressure fall under load → clutches can’t be held. Repair restores necessary system pressure.

7) Drop pan and begin internal inspection
- Do: With pan off, inspect magnet for metal, examine clutch piston bores/accumulators visible, remove valvebody/separator plates and then disassemble to access overdrive drum/planetaries/clutch packs/sprag.
- Theory: Metallic debris and visible condition usually show which friction elements or bearings have failed; internal leaks or mechanical damage are direct causes of OD failure.

8) Inspect and test clutch packs and apply pistons
- Do: Measure friction and steel thickness, check for burnt glazing, broken friction snaps, bent steels; inspect piston seals and bore scoring; replace worn frictions, steels, piston seals, and restore piston surface finish as required.
- Theory: Clutch packs transmit torque. Worn friction/steels reduce torque capacity; damaged piston seals let pressure bypass (reduced clamp). Replacing these restores torque transfer and prevents slip.

9) Inspect one‑way clutch/sprag, planet carriers, gears and bearings
- Do: Check sprag/roller engagement surfaces for glazing, cracks or slipping, inspect planetary gears, ring gear, sun gear, bearings and thrust washers for wear or damage; replace faulty sprags/bearings and correct worn gear components.
- Theory: Overdrive often depends on a one‑way device or particular planetary arrangement to hold or free elements. A failed sprag or damaged gear means the planetary set can’t hold torque or lock correctly — replacing it restores correct mechanical function.

10) Check and correct clearances/endplay
- Do: Measure clutch pack clearance, piston-to-plate clearances, carrier end play and pump/regulator clearances; fit shims or new thrust washers as required to factory spec.
- Theory: Proper clearance ensures correct piston travel and pressure build-up. Excess endplay or incorrect clearances cause delayed or weak apply; correcting dimensions ensures hydraulic forces translate into clamping force.

11) Replace ancillary wear items
- Do: Install new seals, O‑rings, gaskets, filter, solenoids, and any recommended wear rings/bushings; rebuild torque converter if contaminated or if pump pressure deficits existed.
- Theory: New seals stop internal leakage, new bushings restore alignment and reduce internal leakage paths — all restore efficient hydraulic force transmission and mechanical alignment required for OD engagement.

12) Reassemble to factory specs
- Do: Rebuild with correct torque values and sealants, install valvebody, refill with correct ZF fluid to the correct level and temperature, and clear/reset transmission adaptive memory if applicable.
- Theory: Proper assembly and correct fluid ensure the hydraulic system works at designed pressures and the control unit can relearn correct shift timing/pressures.

13) Post‑repair verification
- Do: Repeat static/dynamic line pressure checks, road-test under varied loads, verify OD engages, holds under load, and does not slip; check for leaks and re‑scan for codes.
- Theory: Pressure tests confirm hydraulic integrity; road test verifies the mechanical clamping capacity and that the planetary/set components and one‑way devices are functioning under real load.

How each major repair action fixes the fault (summary)
- Fluid/filter change: restores hydraulic medium and removes debris that cause valve sticking and clutch damage.
- Solenoid/valvebody repair: restores correct metering and command-to-pressure conversion so OD apply is actuated.
- Pump/regulator repair: restores base system pressure so clutches get full apply force.
- Replacing clutch packs/piston seals: eliminates slipping caused by worn friction or hydraulic leakage, restoring torque capacity.
- Replacing sprag/planetary components: fixes mechanical inability to hold or free planetary members required for OD.
- Correcting clearances and replacing bushings/seals: eliminates internal leakage and misalignment so hydraulic force produces mechanical clamp.
- Relearning and road testing: confirms the control strategy and pressures match the repaired mechanics.

Use factory service manual for model‑specific procedures, torque values, shim sizing and test port locations.
rteeqp73

1) Fault diagnosis (what’s wrong, why bearings are suspect)
- Symptoms: whining/growling at specific RPM/load, increased shaft endplay, metal in fluid/strainer, low hydraulic pressure, gear misalignment or harsh shift.
- Theory: bearings support rotating shafts and control radial/axial positions. When they wear (spalled rollers, flattened surfaces, brinelling), shafts shift, loads concentrate on gear teeth and clutch packs, clearances change, pump efficiency falls and metal contamination accelerates failure. Replacing bearings restores correct support and geometry, reducing friction, restoring endplay and alignment, and stopping progressive damage.

2) Preparation and safety
- Gather factory service manual for that ZF model (torques, shim sizes, clearances). Use press, pullers, dial indicators, micrometers, bore gauges, heat source, clean workspace.
- Theory: accuracy and cleanliness are essential — small clearance errors or contamination cause immediate re-failure.

3) Remove transmission and drain, strip external ancillaries
- Drain fluid, remove cooler lines, electrical connectors, bellhousing bolts, cooler pump if needed, torque converter (or remove torque converter after separating trans from engine).
- Theory: you must free the gearbox and remove torque converter to access input shaft and internal shafts without stressing bearings.

4) Split the case and remove valve body/pump/clutches as required
- Separate case halves per manual, remove valve body, pump and clutch assemblies to expose shafts and bearing retaining features. Keep parts in order and tagged.
- Theory: case split exposes the bearing journals and retaining rings; removing hydraulic components prevents contamination and damage during disassembly.

5) Remove shafts and retaining hardware in order
- Sequentially remove input, intermediate/counter, and output shafts per manual, noting thrust washers, shims, snap rings, and gear orientation.
- Theory: bearings are located on or around these shafts; removing shafts lets you access and remove bearings. Thrust washers/shims set axial position — note their arrangement for measurement.

6) Extract the bearings
- Remove snap rings, bearing caps or seats, then press/pull bearings off shafts or out of housings using an appropriate press, heater/cooler for interference fits, or bearing pullers. Do not hammer.
- Theory: bearings are interference or transition fit to journals/housings; correct tooling prevents damage to journals or bores. Preserving seating surfaces is critical for fit accuracy.

7) Clean and inspect mating parts; measure
- Clean all mating surfaces; inspect shafts for wear, scoring, hardened pitting; inspect bearing races and case bores for ovality or scoring. Measure shaft diameters, bearing bores, and case bore diameters with micrometer/telescoping and bore gauge; measure shaft radial runout and axial endplay with dial indicator.
- Theory: replacement bearings only solve the problem if shafts and bores are within tolerance. Worn bores require re-bushing, line-boring, or case replacement; worn shafts may need grinding or replacement. Accurate measurement determines whether simple bearing replacement will restore geometry.

8) Decide corrective action if bores/shafts are out of spec
- If bores worn: install new bronze bushings or have case line-bored and sleeved per spec. If shafts are undersize, replace or resurface and fit oversize bearings. Replace associated gears/clutches if damaged by metal contamination.
- Theory: bearings rely on precise journal geometry. Sleeving/bushing restores the correct journal diameter and concentricity; otherwise new bearings will run on distorted geometry causing rapid failure.

9) Prepare and install new bearings correctly
- Clean and pre-lubricate. Fit bearings using recommended method: heat the bearing cup to controlled temperature or cool shaft (dry ice) for easy fit; press uniformly to seat; observe orientation for tapered/needle bearings; replace seals and snap rings. Use specified interference or loctite only where manual allows.
- Theory: correct interference fit ensures the bearing does not creep on the journal or bore, maintaining concentric support under load. Uniform seating prevents distortions that cause uneven load distribution.

10) Re-establish axial preloads and clearances
- Reinstall shafts with new thrust washers/shims as required. Measure shaft endplay (axial float) with dial indicator and adjust shim stack or thrust thickness to reach factory spec. Check radial clearance/runout and correct if out of limit. Torque bearing caps/bolts to spec in correct sequence.
- Theory: axial clearance (endplay) controls clutch engagement geometry and gear spacing; radial alignment keeps gear teeth in correct mesh and pump clearances correct. Proper preload prevents excessive slop while avoiding excessive bearing preload that creates heat and failure.

11) Reassemble hydraulic components, pump and case
- Reassemble pump, valve body, and case halves using new gaskets/o-rings; torque all fasteners to spec. Ensure filter/strainer are clean or replaced.
- Theory: a clean hydraulic system prevents bearing starvation from debris, while correct pump clearances restore pressure, which affects clutch actuation and lubrication.

12) Fill, bench-test (if possible), and fit back to vehicle
- Fill with correct type and amount of ATF, bench-test pump output and pressure if equipment available, then reinstall torque converter/transmission, torque bellhousing, reconnect lines and electronics. Run engine/transmission and check for leaks, noises, and correct endplay under rotation. Road test and re-check fluid level hot/cold per procedure.
- Theory: correct fluid and pressures ensure bearings receive film lubrication and that clutches and valves operate under intended clearances. Road testing verifies dynamic behavior under load.

13) How the repair fixes the fault (summary)
- Replacing worn bearings removes damaged rolling elements and races that caused noise and metal contamination. Proper installation restores concentric support to rotating shafts, correcting radial alignment and axial endplay. This re-establishes correct gear mesh, pump clearances, and clutch pack engagement geometry, reduces localized loading and heat, prevents further metal generation, and restores hydraulic pressure behavior. If bores/shafts are restored or replaced where needed, the root cause (worn journal geometry) is addressed rather than masking it.

Concise cautions
- Use the correct service manual for model-specific clearances and torque values.
- Do not reuse bearings, seals, or severely scored shafts/races.
- Maintain cleanliness and use proper tools (press, dial indicators).
- Excessive preload or incorrect shims damages bearings quickly.

This is the ordered theory-forward workflow; follow model-specific specs and tooling for actual dimensions and torques.
