Tools & consumables
- Jack, jack stands (or a lift), wheel chocks
- Socket set, ratchet, extensions
- Torque wrench
- Flare-nut wrenches (metric sizes common on Toyotas: 10, 11, 12, 14mm)
- Tubing cutter (for brake line steel)
- Tubing deburring tool / round file
- Tube bender (spring bender or hand bender)
- Double‑flare tool kit (or the correct flare type kit — see note below)
- Bench vise (or clamp) for flaring
- Penetrating oil (PB Blaster, etc.)
- Line‑locking pliers or brake line clamp
- Brake line fittings, unions, copper crush washers/banjo washers (new recommended)
- Replacement hard brake line (pre‑formed line or steel tubing to fabricate)
- Replacement rubber flex hoses if needed
- Brake fluid (DOT 3/4 as specified for vehicle)
- Bleeder kit (vacuum bleeder, pressure bleeder, or 2‑person pump/bleed)
- Safety glasses, nitrile gloves, rags, catch pan
- Wire brush, rust penetrant, anti‑seize (for non‑pressure threads)

Safety precautions (must do)
- Work on a flat surface, chock wheels. Never rely on a jack alone — always use rated jack stands.
- Wear eye protection and gloves. Brake fluid is corrosive to paint — cover panels and wipe spills immediately.
- Open master cylinder cap before loosening lines to avoid vacuum locking and to allow fluid to move.
- Catch all fluid; dispose of used brake fluid properly.
- If heating seized fittings, protect rubber lines, nearby wiring, and paint — heat only as a last resort using a small torch and experience.
- After repair, fully bleed system and do static/leak tests before driving. Road test at low speed.

Preliminary checks
- Identify which line(s) need replacement: hard line from master to proportioning valve, chassis lines, or flex hose to caliper/ wheel cylinder.
- Decide: buy a pre‑formed replacement line (recommended) or fabricate a new one. Pre‑formed reduces risk of incorrect flares/bends.
- Verify flare type for the vehicle (Toyota 5L‑E era typically uses SAE double flares on steel brake lines — confirm by inspecting existing fitting). If unsure, buy pre‑flared lines or consult repair manual.

Step‑by‑step replacement (generalized — follow exact routing/manifold/valve locations for your model)
1) Prepare
- Park, chock rear wheels, loosen front wheel lugs slightly if removing front wheel.
- Open master cylinder cap and clean area around it to avoid contamination.
- Jack and support vehicle on stands. Remove wheel for access.

2) Relieve and protect
- Apply penetrating oil to unions and flare nuts; let it soak.
- Clamp the line downstream of the work area with a line clamp to minimize fluid loss and air ingress (if you’re able to isolate only a section).
- Place catch pan under the fitting you’ll open and have rags handy.

3) Remove old line
- Using a flare‑nut wrench, back off the flare nut at the caliper/union/valve. Use a second wrench to hold the fitting if necessary.
- If removing banjo bolt/hose, remove the banjo bolt and discard old copper crush washers. Keep fittings oriented for routing reference.
- Unbolt any retaining clips/brackets and remove the line from chassis clips. If line is rusty and snaps, be prepared to remove remaining clipped pieces with cutters and replace the clip and line.

4) Prepare replacement line
Option A — Preformed line:
- Match new line to old line by shape and fitting positions. Fit rubber hose ends if included.
Option B — Fabricate new line:
- Cut tubing to length with tubing cutter: rotate cutter around tube, tighten gradually until cut is clean. Do not squeeze; take your time.
- Deburr inside and outside with a deburring tool or file. Internal burrs will cause poor seating and restrict flow.
- Bend tubing using tube bender: make smooth radius bends, avoid kinks. Use appropriate bend radius — don’t overbend.
- Mark and fit to ensure routing clears suspension components, steering, and exhaust.

5) Flare ends (if fabricating)
- Clean tube end, cut square, deburr.
- For double flare (most common):
a) Insert tube into flaring bar so the tube end is flush with the bar’s face slot for the flare thickness specified.
b) Use the pilot cone to form a bubble/flare lip.
c) Switch to the larger cone to compress the bubble into a double flare (the kit instructions show the exact sequence).
d) Inspect flare for even, concentric shape and no cracks. The flare should seat fully against mating surface.
- A single 45° flare is different; confirm the vehicle’s required flare and use the correct adapter in your kit. Wrong flare = leak.

6) Install new line
- Route line as original and secure with clips; use new clips if old ones are corroded/brittle.
- Fit new union/flare nut and hand‑start threads. Use flare‑nut wrench to snug — do not round the nut.
- Tighten to manufacturer torque if available. If torque spec is unknown, snug the nut and then apply a small additional fraction turn — do not over‑tighten.
- For banjo fittings, use new copper crush washers on both sides and torque to spec.

7) Reconnect hoses/calipers and refill
- Reinstall wheel(s) if removed; lower vehicle slightly so wheels touch ground (helps bleeding).
- Fill master cylinder to recommended level with clean brake fluid.
- Bleed brakes starting from the farthest wheel from the master cylinder (usually rear RH -> rear LH -> front RH -> front LH on RHD, but confirm location) until no air and pedal is firm. Use vacuum bleeder or pressure bleeder for single‑person convenience.
- While bleeding, top off master cylinder frequently to avoid introducing air.

8) Leak check and final verification
- With someone holding firm brake pressure, inspect all new fittings and along the line for leaks.
- Pump pedal repeatedly with engine off; then start engine and press again to check pedal firmness. Expect a firm pedal; soft spongy pedal indicates remaining air.
- Torque check flare nuts/banjo bolts after initial road test per manual.
- Clean any spilled fluid and touch up paint where needed.

Common pitfalls & how to avoid them
- Wrong flare type: Inspect old fitting or buy pre‑formed lines. Using a single instead of double flare (or vice versa) causes leaks.
- Poor flare quality: Don’t rush the flaring steps. Cut square, deburr, clamp properly, and follow the double‑flare sequence. Cracked or uneven flares leak.
- Rounding flare nuts: Always use flare‑nut (line) wrenches sized correctly. If stuck, apply penetrating oil and bidirectional rocking; heat as last resort while protecting rubber lines.
- Kinked tubing: Use a proper tube bender to maintain cross‑section. Kinks mean replace line — a kinked line weakens and may fail.
- Not replacing crush washers: Always use new copper crush washers on banjo fittings and unions. Re‑using old washers often leaks.
- Air in system: Bleed thoroughly and keep master cylinder topped off. Use a pressure or vacuum bleeder for best results.
- Incorrect routing: Ensure lines don’t rub, stretch, or contact hot/exhaust parts. Replace any lost chassis clips.
- Corroded mating surfaces: Clean fitting seats with a wire brush; replace severely corroded unions.

When to replace parts rather than repair
- Severely rusty, pitted or cracked hard lines — replace entire section or use preformed replacement lines.
- Old, swollen or cracked flexible hoses — replace with new OEM or OE‑equivalent hoses.
- If unions/caliper threads are damaged, replace the caliper or union fitting as required.
- If uncertain about flare quality or access, buy pre‑flared, pre‑bent replacement lines (these are plug‑and‑play and reduce headache).

Final checks before driving
- Brake pedal should be firm at first press. No leaks at any pressure.
- Do a low‑speed brake test in a safe area to confirm braking performance and ABS operation (if equipped).
- Recheck fittings after first few miles and again after a day of use.

Done correctly, replacement is straightforward; do not compromise on correct flares, new crush washers, secure routing, and thorough bleeding.
rteeqp73

- Safety first
- Always work on a flat, level surface; chock rear wheels and set parking brake.
- Use a hydraulic floor jack rated above the vehicle weight and quality jack stands — never rely on the jack alone.
- Wear safety glasses, gloves, and use wheel chocks.
- Get the factory service manual or a reliable repair manual for your specific Toyota model for torque specs and any model‑specific instructions.

- Quick overview of what “suspension alignment” means
- Alignment = setting wheel angles so the tires sit correctly relative to the road and each other: primarily toe, camber, and caster.
- Proper alignment prevents tire wear, improves handling, and keeps the steering wheel centered.
- Most DIYs can set toe accurately and check camber/caster roughly; exact camber/caster often require shop equipment or part adjustments specific to the vehicle.

- Tools you probably already have (basic tools) — what they are and how to use them
- Floor jack
- Purpose: lift the vehicle safely.
- Use: place under manufacturer lift point, pump to lift, lower onto jack stands; don’t work under vehicle on a jack alone.
- Jack stands (pair)
- Purpose: support the vehicle securely while you work.
- Use: set height, lock pin, position under frame or control-arm mounting points, lower vehicle onto stands.
- Lug wrench or impact wrench
- Purpose: remove and re‑fit wheel nuts.
- Use: break lug nuts loose before lifting, remove after wheel is off; tighten progressively in a crisscross pattern when refitting.
- Combination wrench set / socket set (metric)
- Purpose: loosen/tighten tie rod ends, control-arm bolts, strut nuts, etc.
- Use: select correct size, hold one side while turning the other, use socket and breaker bar for seized bolts.
- Pliers and adjustable wrench
- Purpose: grip cotter pins, small fasteners.
- Use: remove cotter pins, hold jam nuts on tie rods when adjusting.
- Torque wrench (click‑type)
- Purpose: tighten fasteners to specified torque to avoid overtightening or loose parts.
- Use: set required torque, tighten until click; get torque specs from manual.
- Tape measure (metric), long (3–5 m)
- Purpose: measure distances for toe adjustments using simple methods.
- Use: measure between front and rear edges of rims at hub height; use same points both sides.
- Straightedge or long piece of tubing/metal bar
- Purpose: help check camber or straightness of wheel face when used with a ruler.
- Use: place against wheel face to get a straight reference.
- Marker, chalk, or painter’s tape
- Purpose: mark center of rim, steering wheel center, or reference lines on tires.
- Use: mark center wheel tread and steering wheel position before adjustments.

- Extra alignment tools (recommended; why they’re needed and how to use)
- Toe plates or string alignment kit
- Purpose: give an accurate, repeatable reference for measuring and setting toe without a shop rack.
- Use: toe plates sit against wheels; connect a straight string around the car at hub height and measure distances from string to wheel rim front and back OR use plates and a dial indicator. String kit: run string around car, adjust until parallel with hub centers, then measure.
- Why needed: far more accurate and repeatable than eyeballing; essential to set toe properly.
- Camber/caster gauge or digital inclinometer (wheel alignment gauge)
- Purpose: measure wheel camber angle and caster angle accurately.
- Use: zero the gauge on a known vertical or use on hub/rotor; read degrees and compare to spec. Digital units display angles directly.
- Why needed: camber/caster are measured in degrees; you can’t set them accurately with a tape alone.
- Turn plates or spinner plates (for front wheels)
- Purpose: allow front wheels to turn freely and measure steering angle during caster checks.
- Use: place wheels on plates so the tire can rotate while you measure; needed when checking caster change as steering is turned.
- Why needed: caster measurement requires moving the wheels and tracking steering axis movement.
- Dial indicator (optional)
- Purpose: check wheel runout and hub wear.
- Use: clamp to suspension and spin wheel to check wobble.
- Why needed: helps diagnose wheel bearing or rotor issues that affect alignment.

- How to prepare the vehicle before any alignment work
- Inflate tires to recommended pressure (check driver’s door placard).
- Check tire condition and wear patterns (inner/outer wear indicates camber or toe issues).
- Replace obviously damaged tires before aligning.
- Ensure fuel tank and load approximate usual driving weight (alignment specs measured at curb weight).
- Check and correct ride height — sagging springs or uneven height changes camber/caster; measure and note if uneven.
- Inspect suspension components for wear or play (see “Parts that commonly need replacement” below).
- Center the steering wheel: measure and mark steering wheel center with tape or marker.

- How to check for worn parts before attempting alignment (basic checks)
- Wheel bearing play
- Tool: pry bar or grab wheel at 12 & 6 o’clock and rock; excessive movement or grinding suggests bearing replacement.
- Tie rod end play
- Tool: pry bar or jack the front wheel and try to move tie rod; looseness indicates worn tie rod end.
- Ball joints and control-arm bushings
- Tool: jack wheel, place pry bar between control arms and hub; play or clicking indicates wear.
- Shock/strut condition
- Visual check for leaking fluid or bent/damaged components.
- If any of these show play or wear, alignment will not hold and parts must be replaced first.

- Parts that commonly need replacement and why
- Outer or inner tie rod ends
- Why: wear causes loose steering and incorrect toe; tie rods are the primary toe adjustment point.
- Replacement part: OEM or quality aftermarket tie rod ends matched to your model.
- Ball joints
- Why: worn ball joints allow movement in suspension geometry, changing camber/caster and making toe change while driving.
- Replacement part: ball joint or complete control arm assembly if non‑serviceable.
- Wheel bearings/hubs
- Why: play in bearings moves wheel position and makes alignment unstable.
- Replacement part: hub bearing assembly specific to vehicle.
- Control-arm bushings
- Why: worn bushings allow movement of control arms altering alignment angles under load.
- Replacement part: pressed-in bushings or entire control arm depending on severity.
- Struts/shocks or springs
- Why: sagging springs change ride height and camber; bad struts affect handling and toe changes under load.
- Replacement part: strut assembly or shock absorber and springs as required.
- Sway-bar links and mounts
- Why: worn links allow excessive movement and can affect handling/alignment feel.

- Basic DIY alignment procedure (toe-first method you can do at home)
- Ensure tires are inflated, vehicle on flat surface, car at curb weight, steering wheel centered and locked in that neutral mark.
- Measure initial conditions
- Use tape measure or string method to measure toe. With the string method: run a tight string around the car parallel to centerline at hub height, adjust ends so string is equidistant from hubs, then measure distance from string to front and back edges of each rim. Record measurements.
- If using toe plates: attach plates, measure front and rear distances, compare left vs right.
- Check and record camber with a digital inclinometer placed on the wheel face if you have one.
- Adjust toe (most important for DIY)
- Locate the outer tie rod and jam nut (on most Toyotas you turn the tie rod to change length).
- Loosen the jam nut with two wrenches (one holds the tie rod end, one turns the jam nut).
- Rotate the tie rod or tie rod end to lengthen or shorten side: turning changes toe. Shorten both sides equally to dial toe‑in, lengthen both to toe‑out. Adjust one side, then the other until measurements match specifications (or until front and rear measurement differences equal desired toe).
- Re‑tighten jam nuts to specified torque.
- Recenter the steering wheel by counting turns from center while adjusting both sides equally; verify wheel is straight and tighten everything.
- Recheck toe measurements and make fine adjustments.
- Check camber/caster roughly
- Use a camber gauge or digital inclinometer on wheel face. Compare to factory specs.
- If camber or caster are out and your vehicle has cam bolts, eccentric bolts, or adjustable upper arms, adjust per vehicle manual.
- If your vehicle does not have adjustment points, or if adjustments require shims or new parts (control arms, camber bolts), note that these changes are more advanced and may require a shop.
- Tighten and torque all fasteners to factory specifications, lower the vehicle, and road test
- After adjustments, torque tie-rod jam nuts and any loosened fasteners to spec.
- Lower the vehicle, test drive to ensure steering is centered and car tracks straight.
- Recheck alignment measurements after a short drive and adjust if necessary.
- Final check
- Make sure no binding, clunks, or looseness is present. Re-torque after 50–100 km as a precaution.

- When you should go to a professional alignment shop
- You lack a toe plate/string kit, camber/caster gauge, or turn plates — shop has alignment rack and sensors for precise settings.
- Camber and caster are out of spec and require shims, eccentric bolts, or replacement control arms to correct.
- After replacing suspension parts (tie rods, ball joints, control arms, bearings) the shop will give a precise computerized alignment and ensure steering geometry is correct.
- If you want guaranteed factory specs and a printout — go to a pro.

- Typical specs and why you need the manual
- Alignment specs (toe in/out in mm or degrees, camber/caster in degrees) vary by Toyota model and year. Use the factory service manual or alignment printout from a shop for exact numbers.
- Torque values for suspension fasteners are model‑specific; using the wrong torque can be dangerous.

- Quick troubleshooting notes
- Steering off-center after matching toe: either you adjusted one side more than the other — recenter steering wheel and adjust tie rods equally — or there is worn component affecting geometry.
- Uneven inner or outer tire wear: camber issue (inner = negative camber; outer = positive camber) — inspect for bent parts or worn bushings.
- Steering wander or pull to one side: check tire pressures, then alignment and wear on suspension parts.

- Final summary (what to expect)
- You can accurately set toe at home with basic tools plus a string kit or toe plates and a tape measure.
- Camber and caster generally require gauges and sometimes special adjustment points; many Toyotas need shims or specific bolts — a shop may be needed.
- Replace worn tie rods, ball joints, bearings, bushings, or sagging springs before aligning; otherwise settings won’t hold.
- For safety and precision, if you don’t have alignment tools, plan to do an initial DIY toe correction and follow up with a professional computerized alignment.

- Recommended next steps (no extra questions)
- Get a repair manual for your exact Toyota 5L-E model (Hilux/HiAce/whatever body), acquire a toe alignment kit or string kit and a camber gauge, inspect and replace any worn parts found, then perform the toe procedure above and finish with a professional alignment if camber/caster remain out of spec.
rteeqp73

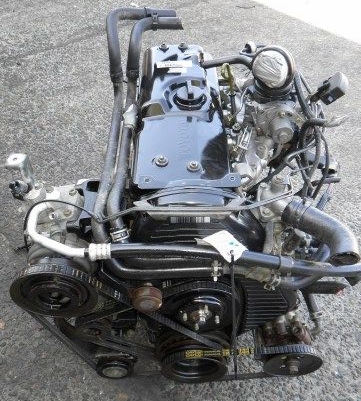

Below is a focused, technician-style procedure for changing the manual gearbox (transmission) oil on a Toyota powered by the 5L‑E engine. This covers required tools, safety, parts, step‑by‑step procedure, how to use the tools, and common pitfalls. Confirm the exact gearbox model, oil spec and oil capacity for your vehicle with the factory service manual or door/VIN data before starting.

Tools & consumables
- Correct gear oil (see Notes below for spec). Buy slightly more than the capacity.
- New crush washer(s) or O‑ring(s) for the drain plug and any filler plug (use copper crush washer if OEM).
- Socket set (8–19 mm typical), right‑angle/box sockets as required.
- Torque wrench (0–100 N·m).
- Breaker bar or ratchet.
- Oil drain pan (capacity ≥5 L).
- Hand pump or fluid transfer pump with hose (for filling through the filler hole).
- Funnel and clear hose (optional).
- Clean rags, brake cleaner.
- Wire brush or gasket scraper (to clean mating faces).
- Magnetic pick‑up tool (to inspect/clean magnet).
- Gloves, safety glasses.
- Floor jack and appropriate jack stands or ramps.
- Creeper or protective mat.

Safety precautions
- Work on a level surface. Chock wheels and set parking brake.
- Raise vehicle safely using jack stands or ramps — NEVER rely on a jack only.
- Wear gloves and eye protection; gear oil is dirty and can irritate skin.
- Let the transmission warm up (short drive) before draining — warm oil drains easier but not scalding hot.
- Dispose of used oil at an approved recycling center.

Parts to replace
- Gear oil (correct spec and quantity).
- Drain plug crush washer / O‑ring (recommended every change).
- Filler plug O‑ring if applicable.
- Optional: replacement drain/fill plug if damaged.

Notes on oil spec & capacity
- Do NOT guess the oil type. Many Toyota manuals call for GL‑4 hypoid gear oil, 75W‑90 or 80W‑90. Using GL‑5 can harm some synchronizer/brass components — confirm the spec.
- Typical manual gearbox capacities for Toyota trucks/vans with 5L engines are often around 1.6–3.0 L depending on gearbox model. Check the service manual or under‑hood/filler label for exact liters.

Step‑by‑step procedure
1) Prepare
- Confirm oil spec & capacity.
- Warm the vehicle with a 5–10 minute drive to operating temperature.
- Park on level ground, engage park/gear, set parking brake, chock wheels.
- Raise the vehicle and secure on jack stands or drive onto ramps.

2) Locate drain and fill plugs
- Find the manual transmission drain plug (lower plug) and fill plug (usually on the side). Clean around plugs to prevent contamination.
- Note orientation so you refill through the correct fill hole.

3) Open the filler plug first
- Loosen and remove the filler plug with the appropriate socket/hex. This confirms you can refill — if the filler can’t be removed you must address that before draining.

4) Drain the gearbox
- Position drain pan under the drain plug.
- Remove the drain plug with socket/breaker bar. Let oil drain completely (5–15 minutes).
- Inspect oil: look for metal flakes (small particles normal; large chunks or lots of bright metal = problem).
- Clean magnet(s): some transmissions have a magnet on the drain plug or inside the case — wipe collected metal off the magnet and inspect.
- Clean the plug threads and mating surface. Replace the crush washer.

5) Reinstall drain plug
- Install plug with new crush washer. Tighten by hand, then torque with torque wrench to factory spec. (Typical range: 25–45 N·m — check manual for exact value.)

6) Fill the gearbox
- Insert pump hose into the filler hole. Pump in correct oil until oil begins to drip from the filler hole (that indicates it’s at the correct level).
- If no pump, use funnel and small clear hose; be patient — gearboxes fill slowly.
- Reinstall filler plug with new O‑ring if applicable and torque to spec.

7) Clean up & test
- Wipe any spills, lower vehicle.
- Start engine, cycle through gears (with vehicle stationary and parking brake on) to circulate oil.
- Short test drive, then recheck for leaks and re‑check filler plug for seepage.
- Recheck oil level if required by manual (some recommend checking after a few miles).

How each tool is used (concise)
- Socket set & breaker bar: break loose and remove drain/filler plugs. Use correct size to avoid rounding.
- Torque wrench: ensure correct final torque on plugs to avoid leaks or thread damage.
- Fluid transfer pump: insert hose into filler hole, pump until oil appears at the filler hole.
- Drain pan: collect used oil; ensure it won’t overflow.
- Magnetic pick‑up & rag: remove metal debris from magnet and gearbox lip.
- Jack & jack stands: raise and safely support vehicle for access.

Common pitfalls & how to avoid them
- Removing drain plug before filler: If filler is seized you won’t be able to refill. Always remove filler first.
- Wrong oil (GL‑5 vs GL‑4): Using GL‑5 in a gearbox specified for GL‑4 can lead to synchro wear. Confirm spec.
- Not replacing crush washer/O‑ring: Leads to slow leaks. Replace washers every time.
- Overfilling or underfilling: Fill until oil reaches the bottom of the filler hole. Overfilling can cause foaming; underfilling causes poor lubrication.
- Cross‑threading or overtightening plugs: Use correct socket and torque wrench. Hand‑start threads first.
- Not warming the gearbox: Cold oil drains slower and may not remove suspended debris.
- Poor working support: Never work under a vehicle only supported by a jack.
- Ignoring metal contamination: Large chunks or excessive shiny particles indicate internal damage — investigate before refilling.

Disposal
- Store used oil in sealed containers and take to an approved recycling center or waste oil collection point. Do not pour down drains or onto ground.

Final checks
- After change and short drive, re‑inspect for leaks, check shift quality. Note any abnormal noises or metal shavings on the magnet — further diagnosis may be required.

If you want, tell me the vehicle model/year and the gearbox code from the VIN or the gearbox tag and I’ll give the exact oil specification, capacity and torque values for the drain and filler plugs.
rteeqp73

To understand how to replace the fuel filter on a Toyota 5L-E engine and how the repair fixes potential faults, let's break it down into the theoretical aspects and practical steps.

### Theory Behind Fuel Filter Replacement

1. **Function of the Fuel Filter**: The fuel filter’s primary function is to remove contaminants and impurities from the fuel before it reaches the engine. This helps maintain optimal engine performance and longevity.

2. **Signs of a Clogged Fuel Filter**: A clogged fuel filter can lead to various issues, such as reduced engine performance, hard starting, stalling, and poor fuel efficiency. The filter can become blocked with dirt, rust, and other particles over time.

3. **Impact of Replacement**: By replacing a clogged or damaged fuel filter, you restore proper fuel flow to the engine, ensuring that it receives clean fuel. This allows for efficient combustion, better performance, and improved fuel economy.

### Steps to Replace the Fuel Filter on a Toyota 5L-E Engine

1. **Preparation**:
- **Safety Precautions**: Work in a well-ventilated area and wear safety goggles and gloves.
- **Gather Tools**: You will need a wrench set, a fuel line disconnect tool, a container for fuel spillage, and a new fuel filter.

2. **Relieve Fuel Pressure**:
- Locate the fuel pump relay in the fuse box and remove it or disconnect the battery to relieve pressure in the fuel system. This prevents fuel spray during the replacement.

3. **Locate the Fuel Filter**:
- The fuel filter is typically located along the fuel line, either under the vehicle or in the engine compartment. Consult the vehicle manual for precise location.

4. **Disconnect Fuel Lines**:
- Using the fuel line disconnect tool, carefully detach the fuel lines from the filter. Be prepared for some fuel spillage; use a container to catch it and avoid exposure to skin.

5. **Remove the Old Fuel Filter**:
- Unscrew or unclip the old filter from its mounting bracket. Pay attention to the orientation of the filter for proper installation of the new one.

6. **Install the New Fuel Filter**:
- Position the new filter in the same orientation as the old one. Secure it in place and reconnect the fuel lines, ensuring they are seated properly to prevent leaks.

7. **Reapply Fuel Pressure**:
- Reconnect the fuel pump relay or battery. Turn the ignition key to the “ON” position without starting the engine to allow the fuel pump to pressurize the system. Check for leaks around the filter connections.

8. **Start the Engine**:
- Start the engine and observe its operation. Ensure it runs smoothly and check for any leaks again.

### Conclusion

By replacing the fuel filter, you eliminate any restrictions in the fuel flow caused by contaminants. This repair directly resolves issues related to fuel delivery, enhancing engine performance and efficiency. Regular replacement of the fuel filter is crucial for the overall health of the fuel system and engine longevity.
rteeqp73
