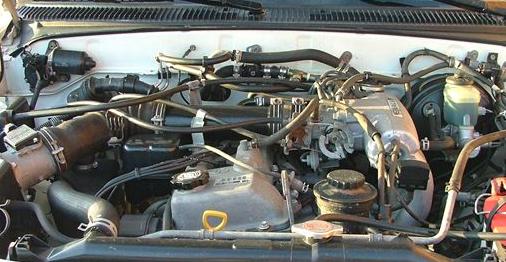

The 3RZ-FE is a 2.7-liter inline four-cylinder gasoline engine produced by Toyota from 1994 to 2004. It was a replacement for the well-known 22R-E and used mostly in commercial trucks and four-wheel drive vehicles such as Toyota Tacoma, T100, Land Cruiser Prado, 4Runner. After 10 years in production, the engine gave way to a new 2.7L engine - 2TR-FE.

The 3RZ engine has a deep-skirt cast iron cylinder block. Bore and stroke sizes are both 95.0 mm (square engine). The engine uses a forged crankshaft - fully balanced, with eight counterweights and a torsional damper pulley. Connecting rods are shot-peened and forged from carbon steel. The 3RZ also got aluminum pistons with resin-coated skirts. Inside the cylinder block, there are oil jets installed to spray oil on the bottom of the pistons for additional cooling. Engine crankcase is equipped with two gear-driven balance shafts.

On top of the engine block, there is an aluminum cylinder head with two overhead camshafts (DOHC layout). It has four valves per cylinder - two intake and two exhaust valves with 19 degrees included valve angle between them. The intake valve diameter is 37.5 mm; the exhaust valve diameter is 30.5 mm. There are no hydraulic lifters/buckets. Valve adjustment is provided by a shim over bucket arrangement (preferably every 25-30k miles). The 3RZ FE engine has a timing chain, which drives the intake camshaft only. The intake camshaft rotates the exhaust camshaft by a scissors gear. Camshaft specifications: intake duration - 230 degrees; exhaust duration - 224 degrees. The engine has a hydraulic timing chain tensioner and oil jet to lubricate the chain.

The intake manifold is made from aluminum alloy. It has by two intake runners for each cylinder, specially designed to increase torque. The engine got an electronically controlled, multiport fuel injection system and Toyota's Electronic Spark Advance (ESA) ignition which was able to determine ignition timing by the ECM based on inputs from sensors. The early engines had a simple distributor and one ignition coil instead of a coil pack.





Tools & supplies
- Metric socket set (8–19 mm), deep & shallow sockets, 1/4" & 3/8" drives, extensions, universal joint.
- Torque wrench (0–100 ft·lb) + breaker bar.
- Ratchet, box-end wrenches.
- Flat plastic scraper and thin metal gasket scraper (use carefully).
- Rubber mallet or dead-blow hammer.
- Drain pan, rags, brake cleaner or parts cleaner, nylon brush.
- Jack, two jack stands or vehicle ramps, wheel chocks.
- Safety glasses, nitrile gloves.
- Oil filter wrench, funnel.
- New oil (quantity per service manual), new oil filter.
- New oil pan gasket (OEM or high-quality aftermarket), new drain-plug crush washer.
- RTV silicone gasket sealant (sensor-grade/Silicone specified by Toyota or equivalent) — only if service manual calls for it.
- Small pick or awl (for cleaning bolt holes), torque-angle gauge if required.

Safety precautions (do these first)
- Work on a level surface. Chock rear wheels.
- Use quality jack stands; never rely on the jack alone.
- Allow engine to cool to avoid hot oil/burns.
- Wear safety glasses and gloves. Keep rags away from hot/cold components when cleaning with solvent.
- Disconnect negative battery cable if you will be working near electrical connections or removing accessories.

High-level overview
1. Drain oil.
2. Remove obstructions (splash shields, crossmember, exhaust pieces, steering rack supports as required by application).
3. Remove oil pan bolts and take off pan.
4. Clean mating surfaces thoroughly.
5. Install new gasket/sealant per Toyota procedure.
6. Reinstall pan, torque in correct sequence and increments.
7. Refill oil and check for leaks.

Step-by-step procedure (3RZ-F / 3RZ-FE)
1) Prepare
- Park, chock wheels, raise vehicle on ramps or jack and secure with jack stands.
- Put drain pan under oil pan and remove oil filler cap to allow faster drain.

2) Drain oil
- Remove oil drain plug; allow oil to drain completely. Replace crush washer on reinstall.
- While draining, loosen but do not remove oil pan bolts (some engines you can start with loosened bolts).

3) Remove obstructions
- Remove engine undercover/splash shield and any brackets, braces, or crossmembers that block access to the oil pan. On some models you may need to remove steering rack lower bolts or a transmission crossmember — support the component before dropping it.
- Remove oil filter if desired (recommended to replace with oil).

4) Remove oil pan
- Remove all oil pan bolts in stages. Keep bolts organized by length/position.
- If pan is stuck, tap gently with rubber mallet to break seal. Do NOT put metal prying tool between mating surfaces aggressively — cut the seal carefully with a plastic scraper or use a thin putty knife at the seam, working evenly around to avoid warping the pan flange or damaging timing cover/transmission flange.
- Lower pan carefully; tilt to allow remaining oil to pour into the drain pan.

5) Clean parts & inspect
- Remove old gasket material from pan flange and engine block mating surface. Use plastic scraper first; metal scraper only if necessary and carefully. Clean bolt threads and bolt holes (use low-pressure air or rag; avoid pushing debris into engine).
- Clean inside of pan; remove sludge and magnet-haul metal — a heavy metal presence indicates internal wear.
- Inspect pan for damage, warped flange, cracks, or corrosion. Replace pan if damaged beyond cleaning.
- Inspect oil pickup tube and screen for blockages; remove and clean if needed and check pickup tube bolts torque.

6) Prepare new gasket/sealant
- If using a one-piece molded gasket: place gasket on pan. Some Toyota manuals call for a small bead of RTV at the timing chain cover seam or at the front/rear corners — apply accordingly. Typical practice: apply a thin continuous 2–3 mm bead of RTV where gasket meets the timing cover and at corners; do NOT put RTV along entire flange unless manual requires.
- If using semi-permanent RTV-only seal: apply a continuous bead offset from bolt holes; refer to service manual for bead size and pattern.
- Replace drain plug crush washer.

7) Reinstall pan
- Position pan and gasket assembly carefully so bolt holes line up. Start bolts by hand to avoid cross-threading.
- Tighten bolts finger-tight in a crisscross pattern or as Toyota specifies. Do this in stages: first snug all bolts, then progressively tighten to final torque in two steps.

8) Torque sequence & values
- Use an even tightening sequence working from center outward in a spiral/crisscross pattern. Tighten in two or three incremental passes (e.g., 50%, then 100% of final torque).
- Typical torque ranges (verify with factory manual): oil pan bolts ~ 8–12 ft·lb (10–16 Nm). Oil drain plug ~ 25–35 ft·lb (34–47 Nm). If the service manual lists specific bolt lengths with different torques follow those exactly.
- Use the torque wrench properly: set value, snug to click once per bolt, move to next bolt in sequence.

9) Cure & final assembly
- If RTV used, allow recommended cure time before filling (often 15–30 minutes to set, up to 24 hours for full cure — short drives okay in many cases but follow sealant directions).
- Reinstall any removed crossmembers, shields, brackets. Reinstall/replace oil filter.
- Refill engine with specified oil type/quantity for 3RZ-F/3RZ-FE (check manual, typically 4.5–5.5 liters depending on vehicle and filter change).
- Reconnect negative battery if disconnected.

10) Start & check
- Start engine and check for leaks around pan and drain plug. Re-torque drain plug after warm-up if desired (again, follow factory guidance).
- Recheck oil level and top as necessary. After 100–200 miles recheck pan bolts for tightness and for leaks.

How the main tools are used
- Torque wrench: set to desired ft·lb/N·m. Tighten bolts in sequence until wrench clicks/indicates torque; do incremental passes. Do not use an impact gun to final torque.
- Scraper/paint scraper: used to remove gasket residue. Keep at a low angle; use light strokes to avoid gouging mating surface.
- Dead-blow/ rubber mallet: tap pan edges to break seal without distorting flange.
- Jack & jack stands: lift vehicle using recommended jacking points; place stands under strong frame points; lower vehicle onto stands — test stability before working under vehicle.
- Socket set & extensions: remove bolts; use appropriate length and keep bolts organized by location.

Replacement parts list (recommended)
- Oil pan gasket (OEM part number for your specific vehicle; buy a correct 3RZ-F/3RZ-FE pan gasket).
- Oil drain plug crush washer (copper or aluminum washer).
- Oil filter.
- Engine oil (correct grade & quantity).
- RTV gasket sealant (if manual requires or gasket design calls for it).
- Optional: new pan bolts if stripped/corroded, replacement oil pan if warped/damaged.

Common pitfalls & how to avoid them
- Reusing old gasket: leads to leaks. Always replace gasket and crush washer.
- Not cleaning mating surfaces: causes imperfect seal. Clean thoroughly.
- Over-tightening bolts: warps pan flange or strips threads — use torque wrench and proper spec.
- Using excessive RTV: RTV squeezed into oil passages causes contamination. Apply small beads only where required.
- Forgetting to support components: removing crossmembers without support can damage mounts or cause injury. Support transmission/engine as needed.
- Not inspecting pickup: clogged pickup causes low oil pressure. Clean screen and verify pickup bolts are tight.
- Cross-threading bolts on reinstall: start bolts by hand and use correct bolts in original locations (some bolts are longer).
- Ignoring bolt lengths: pan bolts can be different lengths—mixing them can damage gasket or threads.
- Not replacing drain plug washer: leads to slow leak.
- Using an impact wrench for final torque: you will over-torque; use torque wrench.

Finish checklist
- No leaks at pan flange or drain plug.
- Oil level correct.
- No unusual noises on start-up (verify oil pressure gauge/idi light).
- Recheck after short drive and after 100–200 miles.

End.
rteeqp73

Tools & supplies
- Four-wheel alignment machine (computer/CCD) with wheel clamps and turn plates OR laser/string & tape or toe plates, camber/caster gauge.
- Turn plates (or slick plates) for front wheels.
- Jack, hydraulic floor jack and appropriate jackstands (rated).
- Wheel chocks.
- Torque wrench and sockets (wheel lug torque).
- Wrenches/sockets to adjust tie rods, control arm bolts, strut top bolts, cam bolts, eccentrics.
- Pry bar, hammer, pick/feeler gauges for play checks.
- Penetrant, anti-seize, thread locker (as required).
- Tire pressure gauge.
- Gloves, safety glasses.
- Service manual / factory alignment specs for the exact model/year.

Safety precautions
- Work on a level, hard surface. Chock rear wheels before jacking.
- Use jackstands — never rely on the jack alone.
- Park vehicle in neutral (or Park for automatic) with parking brake on when jacked; chock wheels not lifted.
- If using sensors/clamps, avoid clamping on valve stems or damaging ABS sensor wires.
- Re-torque fasteners to OEM specs after adjustments.
- After adjustments, perform a low-speed test drive to verify behavior before highway driving.

Overview — what you’re checking
- Visual/safety inspection of suspension & steering for worn parts.
- Measure and record current toe, camber, caster, and thrust angle.
- Adjust damaged/worn components first; then set camber/caster (if adjustable) and finally toe.
- Re-torque everything and road-test; recheck readings.

Step-by-step procedure

1) Preparation
- Inflate tires to manufacturer-specified cold pressures.
- Remove heavy loads and leave spare where normally stored.
- Center the steering wheel (count turns from full lock or use steering wheel marks). Ensure front wheels point straight ahead.
- Confirm vehicle ride height is normal (no extra load) — if not, restore normal ride height prior to alignment.

2) Pre-alignment inspection (do not skip)
- Check tire wear patterns and tread depth; uneven wear may indicate worn parts.
- Check wheel bearings for play (grab wheel at 12/6 and 3/9 o’clock, feel for looseness).
- Check tie rod ends (inner & outer) and steering rack boots for play or torn boots.
- Check control arm bushings, ball joints and sway bar links for wear/play.
- Inspect struts/shocks for leaks and mounting condition.
- Replace any worn or loose components before attempting final alignment. (Worn parts are the most common cause of failure to hold alignment.)

3) Set up alignment machine or string method
- With an alignment machine: position vehicle on turn plates, center front wheels on plates, clamp sensors to all four wheels according to the machine instructions. Zero/calibrate sensors per manufacturer procedure.
- With string method: establish vehicle centerline with strings run parallel to chassis (use rear wheel hubs or axle center for reference). Use toe plates or straightedge to measure distance from string to rim at front and back of front wheels.

How the measurement tools are used:
- Alignment machine sensors clamp to wheels; machine reads wheel angles relative to vehicle centerline. Turn plates allow the front wheels to be rotated during caster sweep without scrubbing. The machine will usually compute camber, caster, toe, and thrust angle automatically.
- Camber gauge: mount on wheel face or hub; reads tilt of wheel from vertical in degrees. Some digital gauges require calibration on a known vertical surface.
- Caster gauge: attach to hub; measure caster by turning the wheel through known angles and letting the gauge compute the caster angle (machine does this automatically).
- String/tape toe method: measure distance from string to wheel rim at front and rear of rim, use difference to calculate toe (toe-in if front distance < rear distance).
- Turn plates: sit under front wheels so wheels can rotate freely; necessary for accurate caster readings and to avoid scrubbing during turning sweeps.

4) Record existing readings
- With system zeroed, record front camber, caster, toe (per wheel), total toe, and thrust angle. Also record rear camber/toe if adjustable or measured.
- Compare to the vehicle-specific specs in the factory manual. If you don’t have exact values, use general safe ranges: caster ~ +2° to +6° (front), camber ~ -1° to +1°, total front toe ~ 0.00° to 0.12° toe-in — but always verify OEM specs.

5) Adjustments order & methods
- Order: repair/replace worn parts → set ride height → set camber & caster → set toe → set thrust angle (rear alignment) → torque & recheck.
- Toe adjustment (front): turn the inner tie rod (or steering tie rod assembly). Turn both inner tie rods equally to move toe in/out while keeping wheel centered. Many vehicles use a locknut on the outer tie rod end — loosen it, make adjustment, then torque locknut.
- Camber adjustment:
- MacPherson strut vehicles: camber is commonly changed by moving strut top bolts in the strut tower (cam bolts) or by using aftermarket camber bolts. Loosen strut-to-knuckle bolts, tap knuckle to required position, tighten to spec.
- Double-wishbone: usually via eccentric bolts on lower arm or by shims.
- Caster adjustment:
- Some vehicles use adjustable control arm washers, eccentric bolts or bolt-in placement. If not adjustable, caster changes when control arm bushings are replaced/offset or with aftermarket parts.
- Rear alignment (if adjustable): adjust toe/camber via eccentric bolts, shims, or adjustable rear toe rods depending on model.
- Thrust angle: adjust by setting rear toe to equal both sides; if thrust angle is off relative to vehicle centerline, adjust rear toe arms or axle locating components.

6) How to perform a caster measurement and adjustment
- On an alignment machine: use the machine’s creep/caster sweep function. Turn wheel to specified angle (machine prompts) and it calculates caster from the difference in camber as wheel is swept.
- Adjust caster via control arm position or eccentrics as per vehicle design. Small changes in control arm mounting can produce caster changes — adjust in small increments and re-measure.

7) Finalizing adjustments
- After each adjustment, re-center the steering wheel and re-check readings with wheels straight.
- Once all values are within spec, torque all adjusted fasteners to OEM torque values and apply thread locker where specified.
- Tighten wheel lug nuts in correct pattern to proper torque.
- Lower vehicle, remove chocks, perform a road test with normal driving (various turns and straight-line) and then recheck alignment readings — components can settle after initial torque/road driving.

Replacement parts commonly required
- Outer and inner tie rod ends (when play exists).
- Ball joints and control arms if worn.
- Struts/shocks or strut mounts if collapsed or noisy.
- Wheel bearings if excessive play or noise.
- Bushings (control arm, subframe) that show play.
- Camber/caster eccentric bolts or aftermarket adjustable camber bolts if stock not adjustable.
- Toe adjustment sleeves if corroded/seized.

Common pitfalls & how to avoid them
- Trying to align with worn components — replace worn parts first.
- Incorrect tire pressures/unequal front-to-rear pressures — always set to spec first.
- Not using turn plates for caster sweep — causes scrubbing and inaccurate caster values.
- Forgetting to center the steering wheel — leads to improper steering wheel position after alignment.
- Adjusting only one side for camber/caster — adjust sympathetically and re-center steering.
- Over-tightening or under-torquing suspension bolts — always use OEM torque.
- Clamping sensors on valve stems or hot wheels — can damage sensors or rims; follow clamp instructions.
- Using measurement ranges from other vehicles — always use vehicle-specific specs from TIS or factory manual.

Quick troubleshooting signs
- Car pulls right/left: check tire pressure, then toe/thrust angle, then camber/caster and worn parts.
- Steering wheel off-center: steering column not centered during alignment or incorrect thrust angle.
- Rapid inner shoulder wear: excessive toe or camber.
- Return-to-center issues: worn steering rack or tie rod ends or incorrect caster.

Notes
- Always consult the factory service manual (TIS) for the exact model/year 3RZ-F / 3RZ-FE vehicle alignment specifications and torque values. Engine code doesn’t change the alignment method, but suspension/axle design and specs vary by model/year.
- If you do not have a professional alignment machine, the string method or toe plates + camber gauge can get a good result for toe and camber; caster is much easier and more accurate with an alignment machine.

Done — follow factory specs, replace worn parts first, adjust in the order above, torque correctly, road test and recheck.
rteeqp73

The fuel pressure regulator on a Toyota 3RZ-F (3RZ-FEI) engine is responsible for maintaining the correct fuel pressure in the fuel system, ensuring optimal performance and engine efficiency. Here's an explanation of how it works, the theory behind it, and the process of repairing or replacing it.

### Theory of Fuel Pressure Regulation

1. **Function**: The fuel pressure regulator controls the pressure of the fuel supplied to the fuel injectors. It ensures that the injectors receive a consistent fuel pressure, which is critical for proper fuel atomization and combustion.

2. **Mechanism**: The regulator typically has a diaphragm that responds to changes in pressure. When fuel enters the regulator, it exerts pressure on the diaphragm. If the pressure exceeds a predetermined level, the diaphragm moves to open a return path to the fuel tank (or return line), allowing excess fuel to bypass the injectors. This maintains a stable pressure within the fuel rail.

3. **Vacuum Reference**: Many regulators are vacuum referenced, meaning they adjust fuel pressure based on the engine's vacuum. When the engine is under load and vacuum decreases, the regulator increases fuel pressure to ensure that injectors can deliver the necessary fuel despite changes in demand.

### Repair Process

1. **Diagnosis**: Identify symptoms of a faulty fuel pressure regulator, such as poor fuel economy, rough idling, or fuel leaks. Use a fuel pressure gauge to measure the pressure at the fuel rail. Compare readings to manufacturer specifications.

2. **Removal**:
- **Safety First**: Relieve fuel pressure by disconnecting the fuel pump fuse and running the engine until it stalls.
- Disconnect the battery (negative terminal).
- Remove any components obstructing access to the regulator.
- Disconnect the fuel lines (use caution as fuel may still be present).
- Unbolt the regulator from the fuel rail.

3. **Inspection**: Check the old regulator for signs of wear, leaks, or damage. Inspect the diaphragm for cracks or tears, as this can lead to pressure inconsistencies.

4. **Replacement**:
- Install the new fuel pressure regulator by reversing the removal process.
- Ensure all connections are secure and use new O-rings or gaskets if necessary to prevent leaks.
- Reconnect the fuel lines and any components removed during disassembly.

5. **Testing**: After installation, reconnect the battery and fuel pump fuse. Start the engine and check fuel pressure using a gauge to ensure it is within specifications. Monitor for leaks and ensure the engine runs smoothly.

### Conclusion

Repairing or replacing the fuel pressure regulator restores proper fuel pressure to the injectors, correcting issues related to fuel delivery. This ultimately improves engine performance, fuel efficiency, and reduces emissions, addressing the faults caused by a malfunctioning regulator.
rteeqp73
