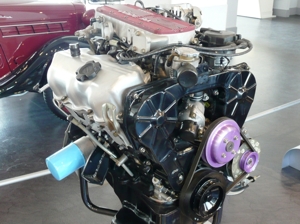

About the Nissan VG30E Engine

The VG engine family consists of V6 piston engines designed and produced by Nissan for several vehicles in the Nissan lineup. The VG series started in 1983 becoming Japan's first mass produced V6 engine. VG engines displace between 2.0 L and 3.3 L and feature an iron block and aluminum heads. The early VG engines featured SOHC, 12 valve heads. A later revision showcased a slightly different block, and DOHC, 24 valve heads with Nissan's own variation of variable valve timing for a smoother idle and more torque at low to medium engine speeds. The block features a single piece main bearing cap. The production blocks and production head castings are utilized successfully in the Nissan GTP ZX-Turbo and NPT-90 race cars which won the IMSA GT Championship three years in a row.The VG series engine found its way into thousands of Nissan vehicles, starting in 1984. The VG design had been retired in 2004, by which time period all V6-powered Nissans had switched to the VQ engine series.The 3.0 L (2,960 cc) VG30E produced 153 hp (114 kW) and 182 lb (247 Nm). Bore is 3.43 in (87 mm) and stroke is 3.27 in (83 mm). In 300ZX form, it prepared 160 hp (120 kW) and 173 lbft (235 Nm). On April 1987 the "W" series VG30 had been released, adding 5 horsepower but leaving torque unchanged. In 1989, the Maxima received the 160 hp (120 kW) review, but also utilized a variable intake plenum improving torque to 182 lbft (247 Nm) @3200 rpm.

It was utilized in the following cars:

1984–1989 Nissan 300ZX/Nissan Fairlady Z (160 hp/165 hp) 9.0:1 compression ratio for NA

1984–1989 Nissan Laurel

1985–1994 Nissan Maxima (160 hp)

1987–1988 Nissan 200SX SE

1988–1996 Nissan Homy & Caravan series E24

1990–1992 Infiniti M30/Nissan Leopard

1990–1995 D21 Hardbody Truck

1990–1995 Nissan Pathfinder/Nissan Terrano

1992–1999 Nissan Gloria/Nissan Cedric (179 hp)

1993–1998 Nissan Quest/Mercury Villager (modified to become a non-interference design)

About the Nissan VG30E Engine

The KA engines were a show of inline-4 four-stroke gasoline piston engines produced by Nissan, which were granted in 2.0 L and 2.4 L versions. The engines blocks were made of cast-iron, while the cylinder heads were made of aluminum.Despite their big capacity, this motor was not equipped with balance shafts.After utilized in the passenger cars both versions of the KA24 used a crank girdle, as opposed to individual caps. In the Nissan Hardbody and Frontier applications a crank girdle was not used.The KA24E was a SOHC12-valve engine produced from July 1988 through January 1997. It uses SEFI fuel injection, and features forged steel connecting rods, an internally balanced forged steel crankshaft, and a cast aluminum intake manifold.

Specifications

   Bore Stroke: 89.0 96.0 mm

   Maximum power: 140 hp (105 kW) @ 5600 rpm

   Maximum torque: 152 lbft (206 Nm) @ 4400 rpm

   Valve Configuration: SOHC, 12 valves

   Compression ratio: 8.6:1 (9.1:1 for early 1989 240SX)

Applications

   1989–1990 Nissan 240SX

   1990–1997 Nissan Hardbody Truck

   1990-1995 Nissan Pathfinder

   1989–1995 Nissan Axxess / Nissan Prairie (not UK except parallel imports for wheelchair conversions posting 1991)

   1990–1992 Nissan Stanza (USA-spec)

   1989–1992 Nissan Pintara / Ford Corsair

   1993-1996 Nissan Terrano 2 Europe



Below is a compact, ordered procedure for diagnosing, cleaning, testing, and (if necessary) replacing the hot‑wire mass air flow (MAF) sensor used on Nissan VG30E and KA24E engines, plus the theory behind each action and why the repair fixes the fault. No extra chatter.

1) Theory — how the MAF works
- Type: these cars use a hot‑wire/hot‑film MAF. The sensor heats a fine wire/film above intake air temperature.
- Principle: airflow cools the wire; the ECU drives current to keep the wire at a constant temperature. The current (or resulting sensor voltage) is proportional to the mass of incoming air.
- ECU use: the ECU reads the MAF signal and calculates fuel injection duration and ignition trim. Contamination, wiring faults, or leaks cause incorrect airflow readings → incorrect fueling (rich/lean, poor idle, hesitation, increased emissions).

2) Symptoms that point to MAF problems
- Poor idle, stumbling on acceleration, surge, high/low idle, black smoke/rich smell, poor MPG, check-engine light with related codes (e.g., P0100–P0104 family).
- Confirm: check stored codes (OBD-I/OBD-II depending on year) and live MAF readings if you have a scan tool.

3) Visual inspection (do this first)
- Locate MAF: between airbox and throttle body. Inspect intake hose, clamps, and boot for cracks, leaks, or loose clamps.
- Connector/wiring: look for broken wires, corrosion, bent pins, or melted insulation.
Why: intake leaks or wiring faults cause wrong readings even if the sensor element is OK.

4) Read codes and live data
- Read fault codes; note MAF-related codes.
- With scan tool or multimeter backprobe, observe MAF signal at idle and while revving. Expect the signal to change smoothly with airflow (voltage/frequency rises with RPM or by blowing air through sensor).
Why: differentiates electrical fault from sensor contamination or intake leak.

5) Simple electrical checks
- Check reference voltage and ground at MAF connector (usually 5 V ref and good ground). Use a DMM.
- Check signal wire continuity to ECU if suspect.
Why: a dead reference or poor ground will make the sensor misreport; repair wiring instead of replacing sensor.

6) Cleaning (most common successful repair)
- Tools/consumables: MAF sensor cleaner aerosol (do NOT use brake or carb cleaner), small screwdriver, gloves.
- Procedure in order:
a) Turn engine off. (Battery disconnect optional but usually not required.)
b) Unplug MAF electrical connector carefully.
c) Loosen clamps and remove the MAF assembly or open airbox to access the element.
d) Hold sensor body; do not touch the wire/film.
e) Spray several short bursts of MAF cleaner directly at the hot wire/film and internal surfaces until visible contamination is removed. Do not scrub.
f) Let sensor air‑dry fully (10–30 minutes).
g) Reinstall, reconnect, clear codes.
Why cleaning fixes it: oil, dust, or residue forms an insulating layer on the wire/film, reducing cooling and causing the ECU to overcompensate (wrong current), producing incorrect air mass reading. Cleaning removes the insulating film so the wire again senses true air cooling and outputs correct signal.

7) Functional test after cleaning
- Start engine, monitor MAF signal/voltage vs. RPM. Smooth rising curve expected.
- Road test and check driveability and fuel trims.
Why: confirms that cleaning restored correct sensor behavior and ECU fuel trim.

8) Advanced bench/diagnostic tests (if needed)
- With engine off, measure sensor element resistance per service manual; compare to spec.
- Use oscilloscope to view signal waveform under varying airflow—should be stable and smooth.
Why: differentiates a mechanically/electronically failed sensor from contamination or wiring issues.

9) Replacement (if cleaning and wiring checks fail)
- Replace with OE or equivalent MAF assembly.
- Install, clear codes, and perform idle/trim relearn if required by ECU (some ECUs self‑learn; others may need specific procedures).
Why replacement fixes irreparable faults: burned or internally shorted elements or failed electronics cannot be cleaned or repaired reliably; a new sensor restores correct sensing.

10) Post‑repair checks and root‑cause actions
- If failure was contamination: check upstream (air filter, oil‑mist prefilters, aftermarket oiled air filters) and correct.
- If failure was wiring/connector: repair with solder and heat-shrink or replace harness; ensure proper grounding.
- If failure was intake leak: repair boots/clamps and retest.
Why: preventing recurrence ensures the new or cleaned sensor stays accurate.

Quick troubleshooting checklist (ordered)
1. Read codes and live data.
2. Visual wiring and intake inspection.
3. Check reference voltage & ground.
4. Clean sensor with MAF cleaner.
5. Re-test live data & road test.
6. Replace sensor if signal or bench tests out of spec.
7. Fix upstream causes (filter, leaks, wiring) to prevent repeat failure.

That's the complete ordered theory + actions and how each repair step corrects the fault.
rteeqp73

### Tools Needed:
1. **Oil Filter Wrench** - To remove the old oil filter.
2. **Socket Set** - For loosening the oil drain plug.
3. **Oil Drain Pan** - To catch the old oil.
4. **Rags or Shop Towels** - For cleaning and wiping spills.
5. **Funnel** - For pouring new oil.
6. **Torque Wrench** (if required for the drain plug).
7. **Gloves** - To protect your hands.
8. **Safety Glasses** - To protect your eyes.

### Parts Needed:
- **New Oil Filter** - Ensure it is compatible with VG30E or KA24E.
- **New Engine Oil** - Check the owner's manual for the correct type and amount.

### Safety Precautions:
1. **Work in a well-ventilated area.**
2. **Allow the engine to cool down** before starting work.
3. **Wear gloves and safety glasses** to protect yourself from oil and debris.

### Step-by-Step Instructions:

1. **Prepare the Vehicle:**
- Park the vehicle on a flat surface and turn off the engine.
- Engage the parking brake and wear your gloves.

2. **Drain the Old Oil:**
- Place the oil drain pan under the oil pan.
- Use the socket set to loosen and remove the oil drain plug. Allow the old oil to drain completely into the pan.

3. **Remove the Old Oil Filter:**
- Use the oil filter wrench to loosen and remove the old oil filter. Turn it counterclockwise.
- Be cautious as some oil may spill out when removing the filter.

4. **Prepare the New Oil Filter:**
- Take the new oil filter and apply a small amount of new oil to the rubber O-ring on the top of the filter. This helps create a better seal.
- Check the old filter against the new one to ensure they match.

5. **Install the New Oil Filter:**
- Screw the new oil filter onto the engine by hand, turning it clockwise. Tighten it according to the manufacturer's specifications (usually hand-tight plus a quarter turn).

6. **Reinstall the Oil Drain Plug:**
- Once all the oil has drained, clean the area around the oil drain plug.
- Reinstall the drain plug and tighten it securely (use a torque wrench if specified).

7. **Add New Engine Oil:**
- Open the hood and remove the oil filler cap.
- Using a funnel, pour the new engine oil into the filler neck. Refer to the owner’s manual for the correct oil capacity.

8. **Check Oil Level:**
- After adding oil, wait a minute and then check the oil level using the dipstick. Add more oil if necessary.

9. **Run the Engine:**
- Start the engine and let it run for a few minutes. Check for leaks around the oil filter and drain plug.
- Turn off the engine and recheck the oil level, adding more if needed.

10. **Dispose of Old Oil and Filter:**
- Properly dispose of the old oil and filter at a recycling center or auto parts store.

### Common Pitfalls to Avoid:
- **Over-tightening the Oil Filter:** This can cause leaks or damage the filter.
- **Not Cleaning the Filter Mount:** Ensure no debris or old O-ring is left on the mount before installing the new filter.
- **Forgetting to Replace the Drain Plug:** Double-check that the plug is secured to avoid leaking oil after filling.
- **Using the Wrong Oil Filter or Oil:** Always confirm compatibility with the vehicle’s specifications.

### Conclusion:
Following these steps will help ensure a successful oil filter change on a Nissan VG30E or KA24E engine. Always consult the vehicle’s service manual for specific details regarding torque specifications and capacities.
rteeqp73

Tools & supplies
- Basic hand tools: socket/ratchet set, torque wrench, pliers, screwdrivers, pry bars, shop rags, compressed air.
- Engine removal gear if head-off: hoist, engine stand.
- Valve spring compressor (internal or external type appropriate for VG30E/KA24E heads).
- Valve keeper/retainer tool or strong magnet for keepers.
- Valve stem seal pliers or small pick.
- Valve seat cutter set (carbide or HSS three-angle cutters) with pilot sizes that fit the valve guides, or a powered seat grinder/rotary cutter with pilots.
- Valve seat diamond stones (final finishing stones) and 45° stones if required.
- Valve lapping tool and coarse/fine lapping paste (for light reconditioning only).
- Dial caliper/micrometer, depth gauge, small telescoping gauge, bore gauge (for guide clearance).
- Straightedge, magnifying glass, bright light.
- Cleaning tools: brass brushes, nylon brushes, solvent/degreaser, shop vacuum, compressed air, gasket scraper.
- New valve stem seals, valve springs (optional), valves (if worn), valve guides or seat inserts (if required), head gasket, RTV as required.
- Cutting oil, shop towels, safety glasses, gloves, respirator for dust, hearing protection.

Safety precautions
- Work in a well-ventilated area. Wear eye protection, gloves, and a respirator when grinding/cutting.
- Disconnect battery and drain coolant/oil as needed. Support engine/head securely on a stable bench or head stand—vibration during cutting can ruin jobs or cause injury.
- Keep sparks and open flames away; cutting/grinding creates hot chips.
- Use magnetic trays for small parts; keep track of valve keepers.
- Clean all metal chips thoroughly—swarf in oil/coolant passages ruins engines.
- Never use a grinder/cutter without secure pilot/fixture—wandering cutters will damage guides and seats.

Overview of the job
1) Determine extent: light pitting — lapping or stone may suffice; moderate wear/damaged seat — reface/cut; severe damage or improper angle — need seat insert or head machining.
2) Plan: heads can be serviced on the car for simple lapping but precision cutting requires the head removed and mounted on a stable surface.

Step-by-step procedure
1. Remove head (recommended)
- Drain coolant and oil, disconnect intake/exhaust, fuel, wiring, and ancillary components.
- Follow OEM sequence to remove cylinder head. Clean mating surfaces and place head on a stable head stand or bench. Replace head gasket when reassembling.
- Note: If you choose to do only valve lapping, you can leave head on car, but cutting/refacing requires removal.

2. Disassemble valves
- Use valve spring compressor to compress each spring, remove keepers, then remove springs, retainers, valve seals and valves. Keep valves labeled per cylinder/position.
- Inspect each valve face and stem for wear, burning, pitting, bent shafts.

3. Inspect guides & seats
- Check valve guide clearance (measure valve stem and guide bore). Excessive clearance means guide replacement or reaming.
- Inspect valve seats for pitting, cracks, or glazing. Determine if seats are integral or pressed-in inserts. If seats are loose/damaged, plan for seat insert replacement.

4. Clean head
- Remove carbon and deposits from bowl and seat area with non-metallic brushes first, then brass if needed. Blow out passages and oil/coolant galleries. Mask off openings or plug them.

5. Choose method
- Light defects: use 45° stone or lapping with coarse then fine paste until good pattern.
- Moderate to heavy: use seat cutter/rotary cutter with pilots. Prefer three-angle cutting for improved flow: e.g., a multi-angle cutter set (top relief, 45° seat, and lower relief).

6. Setup for cutting
- Mount head securely and perfectly level.
- Select pilot that snugly fits the valve guide (pilot must run true). Use the valve stem as a final check for alignment if needed. Pilot must prevent wobble—wrong pilot will ruin guides.
- Install cutter/arbor into the tool, set to a very small depth for the first pass.

7. Cutting technique (hand-held or powered cutter)
- Apply cutting oil to the cutter and seat to lubricate and carry chips.
- Spin the cutter by hand slightly to seat it, then use slow controlled strokes—do not plunge rapidly. Make multiple light passes; remove only small amounts per pass.
- After each pass, clean chips away and check seat contact with a valve and Prussian blue or Sharpie/engineer’s dye on valve face. Rotate valve on seat by hand to inspect contact area.
- Goal: consistent concentric contact band 1.5–2.5 mm (typical) on intake; exhaust often slightly wider depending on engine design. Do not cut so wide that you undermine seat shoulders or reduce contact area excessively.
- If using three-angle cutters, cut relief angles with appropriate cutters and finish with the 45° seat cutter to produce the seating surface.

8. Check seat runout and width
- Measure seat width and concentricity. Ensure no eccentric contact; correct by re-cutting with a properly fitting pilot.
- If seat moves or does not cut cleanly, tool alignment or pilot is wrong—stop and correct.

9. Final finishing
- Use a fine diamond or stone to remove any burrs.
- If only lapping: apply fine paste and lap with suction handle until blue/pattern is uniform. Clean thoroughly after lapping.
- Install new valve stem seals at this point.

10. Reassembly inspection & parts replacement
- Replace valve stem seals always when head is off.
- Replace valve springs and valves if weak/worn. Replace keepers/retainers if deformed.
- If valve guides were worn beyond serviceable limits, replace or ream and fit oversize valves as required.
- If seats were too damaged to recut or are loose, install pressed-in seat inserts or have a machine shop perform seat insert replacement.

11. Clean thoroughly & reassemble head
- Blow out all passages with compressed air, solvent-clean everything. Ensure no chips remain.
- Reinstall valves, springs, retainers, and keepers (use correct compressor). Check seating with Prussian blue after final assembly to ensure fit. Torque head to spec and reassemble engine per service manual.

How the cutter tool is used (concise)
- Pilot centers the cutter in the valve guide; arbor holds cutter. The pilot’s outside diameter must closely match guide ID so the cutter follows the guide centerline.
- Cutter rotates (by hand or powered) and slices a narrow ring off the seat. Use light, controlled passes and cutting fluid. Periodically remove tool, wipe chips, check contact pattern, and re-align as needed.
- For three-angle work, you use sequential cutters with different included angles, finishing with the 45° cutter for the seating surface.
- Final polishing with diamond stone—light strokes, keep stone flat on the seat face, do not change angle.

Common pitfalls to avoid
- Using wrong pilot size — causes eccentric seats and ruined guides.
- Cutting too deep or removing too much material — weakens seat and can break combustion seal.
- Skipping pilot/alignment checks — will produce off-center seats and poor sealing.
- Not replacing valve stem seals — leads to oil burning.
- Failure to clean chips — swarf left in passages causes catastrophic damage.
- Trying to lap severely damaged seats — lapping masks issues and results in quick failure.
- Not measuring stem/guide clearance — excess clearance causes leaking even with good seats.
- Mixing valves — always note intake/exhaust and cylinder location if reused.

Replacement parts typically required or recommended
- Valve stem seals (always replace).
- New valves if bent, burned, or badly pitted.
- Valve springs if weak or out of spec (spring tester recommended).
- Valve guides (if worn) or valve seat inserts if seats are cracked/loose.
- Head gasket and any other gaskets you disturb.
- In many rebuilds, replace keepers/retainers if worn.

When to consult a machine shop
- If seats are excessively damaged, if guides are worn beyond service limits, or if you lack the correct pilots and cutters. Machine shops have specialized fixtures and can press/fit inserts and perform precise angle and concentricity work.

Final note
- Follow OEM specs for clearances, seat widths, and torque values—consult Nissan service manual for VG30E and KA24E when reassembling. Perform a leak-down or compression test after reassembly to verify work.
rteeqp73
