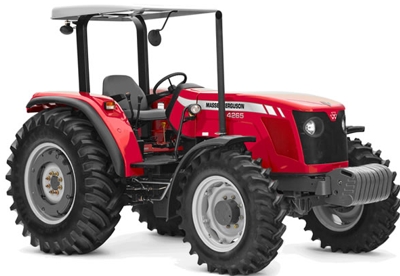

Massey Ferguson, a brand of AGCO Corporation, is a global manufacturer of agricultural equipment. The MF4200 tractor model is a series of tractors that were first introduced in the early 2000s, as part of the company's mid-range line of tractors.

The MF4200 series tractors were designed to provide farmers with a reliable, versatile, and cost-effective option for their farming needs. These tractors were powered by a four-cylinder diesel engine and were equipped with a range of features such as power steering, hydraulic brakes, and a cab with air conditioning. They were available in a variety of configurations and sizes, with options for different types of attachments and implements.

The MF4200 series tractors were popular among farmers for their efficiency, durability and versatility. They were used for a wide range of farming operations such as tillage, planting, and harvesting.

Massey Ferguson MF4200 series production ended around 2010, it was replaced by the MF 5400 series and later MF5700 series. But the MF4200 series tractors are still found in many farms and continue to be used and maintained by farmers around the world.

- **Safety Gear**
- **Safety Glasses**: Protect your eyes from debris.
- **Gloves**: Protect your hands from sharp edges and chemicals.
- **Steel-Toed Boots**: Protect your feet while working under the tractor.

- **Basic Tools Required**
- **Wrench Set**: A set of open-end and box-end wrenches (preferably metric) for loosening and tightening nuts and bolts.
- *Use*: Fit the wrench over the nut/bolt and turn counter-clockwise to loosen and clockwise to tighten.
- **Socket Set**: A ratchet and socket set (metric and standard) for faster and easier removal of bolts.
- *Use*: Choose the correct socket size, attach it to the ratchet, and turn counter-clockwise to remove bolts.
- **Pry Bar**: A long metal bar used to apply leverage to help remove stubborn parts.
- *Use*: Insert the flat end under the part to be removed and push down on the other end to lift it.
- **Jack and Jack Stands**: To lift the tractor safely and securely.
- *Use*: Place the jack under a solid part of the tractor frame and pump until the tractor is elevated. Place jack stands under the frame for support before working underneath.
- **Hammer/Mallet**: To gently tap stubborn bolts or parts without damaging them.
- *Use*: Use the hammer to lightly tap on the end of the bolt or part to loosen it.
- **Torque Wrench**: Ensures bolts are tightened to the manufacturer's specifications.
- *Use*: Set the desired torque level, and turn the bolt until the wrench clicks.

- **Additional Tools (if necessary)**
- **Impact Wrench**: For removing stubborn bolts quickly (optional).
- *Use*: Attach the correct socket and pull the trigger to quickly loosen bolts without manual effort.
- **Cutting Tool (Angle Grinder or Sawzall)**: If any parts are rusted or damaged beyond repair.
- *Use*: Use the appropriate cutting blade to cut through damaged parts if necessary.

- **Part Replacement**
- **Trailing Arm**: This is the main part being replaced. It's crucial if it’s bent, cracked, or excessively worn.
- *Why Replace?*: A damaged trailing arm can affect the tractor's stability and handling, leading to unsafe conditions.
- *Replacement Part*: Purchase a new trailing arm specific to the Massey Ferguson MF4200 model.

- **Steps for Trailing Arm Replacement**
- **Preparation**: Ensure the tractor is on a flat surface and the engine is off.
- **Lifting the Tractor**: Use a jack to lift the rear of the tractor and support it with jack stands.
- **Removing the Old Trailing Arm**:
- Locate the bolts securing the trailing arm to the tractor frame and axle.
- Use the appropriate wrench or socket to remove these bolts.
- If the bolts are stubborn, gently tap them with a hammer or use a pry bar to assist in loosening them.
- **Inspecting Other Components**: Check for any wear on bushings or other parts connected to the trailing arm that may also need replacement.
- **Installing the New Trailing Arm**:
- Align the new trailing arm with the mounting points.
- Insert and hand-tighten the bolts initially, then use the torque wrench to tighten them to the manufacturer’s specifications.
- **Final Steps**:
- Double-check all connections and ensure nothing is loose.
- Lower the tractor and test the new trailing arm by moving the tractor slowly to ensure everything is functioning correctly.

- **Clean-Up**: Properly dispose of any old parts and clean your workspace. rteeqp73

Summary first: the MF4200 headlight system is a simple 12‑volt electrical circuit: power (through a fuse/relay and the light switch) goes to the lamp filament; the filament converts electricity to light; the lamp returns current to chassis ground. If the lamp doesn’t work, the fault is the bulb, wiring/connectors, switch, fuse/relay, or ground. Below are the components, why this repair is needed, exact step‑by‑step replacement instructions for both replaceable‑bulb and sealed‑beam types, testing, aiming, troubleshooting, and maintenance — written for a beginner mechanic.

Theory / How the system works (analogy)
- Think of the electrical system as a water system:
- Battery = water tank (source of pressure).
- Fuse/relay = gate/valve (protects or controls flow).
- Switch = faucet.
- Wiring = pipes.
- Bulb filament = nozzle that turns flow into light (resistance → heat → light).
- Chassis ground = drain back to the tank.
- When you turn the headlight switch, the circuit closes and current flows from battery → fuse/relay → switch → lamp → chassis ground → back to battery. Interrupt anywhere and the lamp won’t come on. Corrosion or a poor ground acts like a clogged drain, reducing or stopping flow.

Main components (what each one is and does)
- Headlamp bulb (or sealed beam assembly)
- Replaceable bulb (e.g., H4/H7 types common in tractors): glass bulb with filament(s), metal base with prongs. Converts electrical energy to light and heat.
- Sealed beam: entire lens/reflector/bulb is one sealed unit; replace whole unit.
- Reflector and lens
- Reflector shapes and focuses the light forward; lens can protect and shape beam pattern.
- Headlight housing / bucket
- Holds the lamp and protects it; mounts to tractor body/frame.
- Bezel/trimming ring & mounting screws
- Cosmetic/retention parts that secure the lamp in place.
- Rubber gasket / seal
- Keeps moisture and dirt out of the lamp/housing.
- Wiring harness and socket
- Wires carry power to the bulb and return ground; socket connects the bulb to wires.
- Connectors
- Male/female plugs; often use tab terminals, spade connectors, or waterproof plugs.
- Fuse(s) and fuse box
- Protects the circuit from overcurrent; often a single fuse for lights.
- Relay (if equipped)
- A small switch powered by the headlight switch to carry heavy current; prevents high current running through the dash switch.
- Headlight switch/dimmer (dashboard control)
- User control for on/off and high/low beam.
- Ground connection
- Bolted/chassis point where the lamp’s return wire is bonded to the tractor frame.

Why this repair is needed
- Burnt bulb: filaments fail after use or due to vibration.
- Water/condensation: causes corrosion or shorting.
- Connector corrosion / broken wires: intermittent or no power.
- Broken mounting / damaged housing: misalignment or broken seal.
- Faulty switch, relay, or fuse: no power to the lamp even with good bulb.

Tools & materials you’ll need
- Replacement bulb or sealed beam assembly (confirm model with manual — typical system is 12V; bulbs vary).
- Basic hand tools: screwdrivers (Phillips/flat), socket set/ratchet (common sizes 8–13 mm), pliers.
- Clean cloth and gloves (avoid touching halogen glass with bare fingers).
- Multimeter (for troubleshooting voltage/continuity).
- Dielectric grease or contact cleaner.
- Replacement connector/terminals and shrink tubing or electrical tape (if needed).
- Silicone sealant or replacement gasket (if seal damaged).
- Safety glasses, rags.
- Optional: phone camera to photograph connections for reassembly.

Safety first
- Park tractor on level ground, engage parking brake, turn key off, remove key. For extra safety, block wheels.
- Disconnect the negative battery terminal to avoid shorts and accidental startup.
- Allow bulbs to cool before touching.
- If dealing with wiring near fuel components, keep sparks/metal tools away.

Step‑by‑step: how to replace the headlight (replaceable bulb type)
1. Verify bulb type
- Check owner’s manual or remove existing bulb to read part number. If unsure, bring old bulb to parts store.
2. Prepare the tractor
- Turn off and remove key. Disconnect negative battery terminal.
3. Access the lamp
- Remove the bezel/trim ring: usually held by 2–4 screws or clips. Keep screws in a small container.
- Remove retaining ring or spring clip that holds the bulb in the housing (some tractors have a rear access panel).
4. Remove old bulb
- Grip the bulb base (not glass). Twist or unclip as the design requires; pull straight out of socket.
- If it’s a sealed beam, remove the screws holding the sealed beam in the bucket; disconnect the wiring pigtail.
5. Inspect socket and wiring
- Look for corrosion, melted plastic, broken wires, or green/white corrosion on terminals. Check rubber boots/gaskets for cracks.
- Clean terminals with contact cleaner; use a wire brush if heavily corroded.
6. Install new bulb
- If halogen replaceable bulb: avoid touching glass with fingers (oils make hot spots and shorten life). Use cloth or gloves. Insert bulb in correct orientation; secure retaining clip/ring.
- If sealed beam: connect pigtail to the back of the sealed beam, seat it in the housing, and replace mounting screws and bezel.
- Replace gasket or apply new silicone if needed to keep moisture out.
7. Reassemble
- Replace bezel/trim ring and screws.
- Reconnect negative battery terminal.
8. Test
- Turn on headlights and check low and high beams. Check beam direction and brightness.
9. Final checks
- If lights work, secure any loose wiring and verify rubbers/gaskets are seated to prevent water entry.

Step‑by‑step: how to replace a sealed beam headlamp
- Same general steps, but you remove whole lens/reflector unit from housing (usually 3–4 screws) and unplug wiring. Fit new sealed beam and wiring connector, secure screws, seal and test.

How to test the circuit if lamp still doesn’t work
- With multimeter:
- Check fuse: visual and continuity test.
- Check for 12V at the bulb socket with switch on (low and high): one terminal should have battery voltage on low or high depending on switch position; the ground terminal should read near 0V or continuity to chassis.
- If no voltage at socket, check relay (listen for click when toggling switch) and check voltage on relay terminals. If relay missing or suspect, bypass test carefully (use caution) or swap with a known good relay.
- Check ground: continuity between lamp ground terminal and chassis (<1 ohm). If high, clean ground bolt and reattach.
- If voltage present and ground good but no light, bulb is bad.

Beam alignment (why it matters and how to do it)
- Why: Poor aim blinds oncoming drivers and reduces useful visibility.
- Simple method:
- Park tractor on level ground facing a wall or garage door ~7–8 meters (25 ft) away. Make sure vehicle is level and tires are at normal pressure.
- Measure lamp center height to the ground and mark that height on the wall.
- Turn on low beams and set beam pattern. The top cutoff of the beam should be slightly below center mark and slightly to the right (for right‑hand traffic) by a few inches; consult manual for exact specs.
- Adjust using the lamp’s vertical and horizontal adjustment screws until pattern matches.
- Analogy: aiming headlights is like aiming a flashlight — a small twist changes where the bright spot lands.

Common things that can go wrong (and how to fix)
- New bulb blows immediately:
- Wrong voltage or wattage bulb; vibration or bad mounting; short in wiring. Use correct spec bulb and secure it.
- Intermittent failures:
- Loose connector, corroded contacts, broken conductor inside wire. Wiggle test while on; repair/replace connector and cut back to clean wire if needed.
- Dim lights:
- Low battery voltage, poor ground, corroded connector, or dirt on lens/reflector. Check battery voltage with lights on (>12V ideally 13–14V with engine running), clean contacts and lens.
- One beam (high/low) doesn’t work:
- Dual‑filament bulb: one filament broken. Replace bulb. If both filaments not getting correct current, check switch or wiring to separate filaments.
- Water inside lamp:
- Seal failed. Replace gasket/assembly, dry interior, and use silicone sealant or new gasket.
- Blown fuse repeatedly:
- Short circuit somewhere; trace wiring for damaged insulation, melted connectors, or foreign metal contact. Don’t keep replacing fuse without finding short.
- Switch or relay failure:
- Replace switch or relay if other components test good.

Maintenance and preventive tips
- Keep rubber seals in good shape; replace when cracked.
- Apply a tiny amount of dielectric grease to terminals to slow corrosion.
- Use the correct bulb type and wattage — higher wattage generates more heat and can melt housing.
- Inspect wiring harness for chafing against metal, use cable ties to secure.
- When replacing bulbs, always note orientation and capture photos to aid reassembly.

Parts and specifications note
- Confirm bulb type and specs in the MF4200 operator/service manual or by checking the existing bulb. MF tractors commonly use 12V systems but the exact bulb (replaceable vs sealed beam and the part number) varies by model year and region. If unsure, bring the old bulb or assembly to a parts supplier.

Quick troubleshooting checklist (fast)
- Bulb blackened or broken? Replace.
- Fuse blown? Replace fuse and find short if it recurs.
- No voltage at socket? Check switch/relay/fuse.
- Voltage present but no light? Faulty bulb or poor ground.
- Water in housing? Dry and reseal.

That’s the full procedure and background. Follow the steps, keep the battery disconnected while doing heavy work, don’t touch halogen glass with bare hands, and replace any corroded connectors or seals you find.
rteeqp73

1) Safety and preparation
- Park on level ground, lower implements, set parking brake, chock wheels, shut off engine, remove key. Disconnect battery if you’ll be working under covers near electrics.
- Gather tools: wrenches/sockets, pliers, screwdriver, replacement shift cable (match ends/length), grease, penetrating oil, rag, zip-ties/clips.

2) Understand the system (theory)
- The shift cable is a flexible inner wire running inside a fixed outer sheath. It transmits linear push–pull motion from the hand/mid mount shifter (or shuttle lever) to the gearbox shift lever or shuttle fork.
- The outer sheath must be fixed at both ends so all movement is borne by the inner wire. If the sheath moves, the cable loses effective travel.
- Proper gear selection requires accurate, repeatable position of the gearbox lever. Small loss of travel, increased friction, or excessive free play prevents full engagement, causes missed/partial shifts, grinding or inability to shift.
- Common failure modes: inner wire frays/breaks, inner wire seizes from corrosion, sheath crushed/abraded or end fittings worn, mount brackets broken, or adjuster locknuts backed off. These create high friction, intermittent movement, or lost travel.
- Replacing the cable removes seized/frayed wire and degraded sheath, restoring low-friction, full travel and correct positional feedback to the gearbox. Proper routing and adjustment restore neutral and full engagement positions.

3) Preliminary diagnosis/verification (before removal)
- With engine off, move the shifter through its range and observe the gearbox lever at the transmission (or under-hood connection). Note binding, lost travel, or slop.
- If movement is small or sticky at certain angles, that indicates a cable problem rather than internal gearbox failure.
- Note routing/clips and exact orientation of end fittings so you can replicate it.

4) Remove old cable (ordered steps)
1. Access: remove any panels, covers or battery trays blocking the cable route. Keep track of fasteners.
2. Unclip: remove cable from retaining clips along frame so cable is free to move.
3. At shifter end: disconnect the cable end from the shifter lever — typically a clevis pin, cotter pin, or clip. Support the lever and remove the fastener, then free the cable end.
4. At trans end: free the cable from the gearbox lever/clevis. Remove any bracket bolts holding the sheath so the sheath is free.
5. Pull cable out following the same path, noting any grommets/bushings and end fittings. Inspect mounting brackets and the gearbox/shifter lever for wear.

5) Inspect and prepare mounting points
- Check sheath anchor points, bushings and lever holes for elongation. Replace or ream to correct size if badly worn.
- Clean pivot points and apply light grease to shifter and gearbox lever pivots (not inside the sheath end).
- Compare old and new cable lengths and end fittings to ensure proper match.

6) Install new cable (ordered steps)
1. Route the new cable exactly as the old one was routed, avoiding tight bends, high-heat exposure (exhaust), and pinch points. Use original grommets/bushings where present.
2. Secure the sheath ends in their mounting brackets so the sheath cannot move under load. The inner wire must move relative to a fixed sheath.
3. Connect the trans end: attach the inner wire end to the gearbox lever with the correct clevis/pin/retaining clip. Make sure the wire’s end fitting seats fully and the pin is secure.
4. Connect the shifter end: attach the inner wire to the shifter lever and secure with pin/clip.
5. Replace and tighten any bracket bolts. Reinstall any panels removed.

7) Adjustment and setting neutral (theory plus ordered steps)
- Theory: The cable adjuster (threaded barrel or turnbuckle) sets the neutral/center position and correct free play. Too tight = preloading and partial engagement; too loose = not reaching gears. Correct free play lets the gearbox detents fully engage with the shifter centered.
1. Locate the adjuster (usually near one end of the sheath). Loosen the adjuster locknut.
2. Center the hand shifter in neutral.
3. On the gearbox lever, ensure its detent/neutral position is centered (if necessary, slightly move the lever to neutral).
4. Turn the adjuster so that the inner wire just takes up slack — avoid any preload. There should be a small recommended free-play (often a few millimeters) at the shifter — if no manual available, aim for just perceptible play before the gearbox lever begins to move.
5. Lock the adjuster nut securely.
6. Cycle through all gear ranges and observe the gearbox lever travel; verify full engagement of each gear detent without excessive shifter effort.

8) Final checks and test
- Re-secure all clips and panels; ensure cable cannot rub on framing or moving parts.
- Start engine, with brake on and PTO disengaged, slowly shift through all gears and ranges while stationary, listening for grinding.
- Take a short test drive under light load and shift through gears; after a short run, re-check adjuster tightness and clip security.
- Re-inspect for any unusual slop or binding.

9) How the repair fixes the fault (concise)
- Replacing a worn/seized frayed cable removes the mechanical source of lost travel and high friction. A new inner wire slides freely inside a sound sheath, transferring full push–pull motion from shifter to gearbox.
- Proper anchoring of the sheath makes sure the effective travel of the inner wire equals the required lever travel at the transmission. Proper adjustment centers the gearbox in neutral and ensures detents fully engage, eliminating missed shifts, grinding and inability to select gears.

10) Preventive notes (short)
- Keep cable clear of heat and abrasive contact, periodically inspect for fray/abrasion, and lubricate inner wire if the replacement cable spec allows. Check sheath anchors and replace worn bushings to prolong life.

That’s the ordered procedure with the underlying theory and why the replacement cures shifting faults.
rteeqp73
