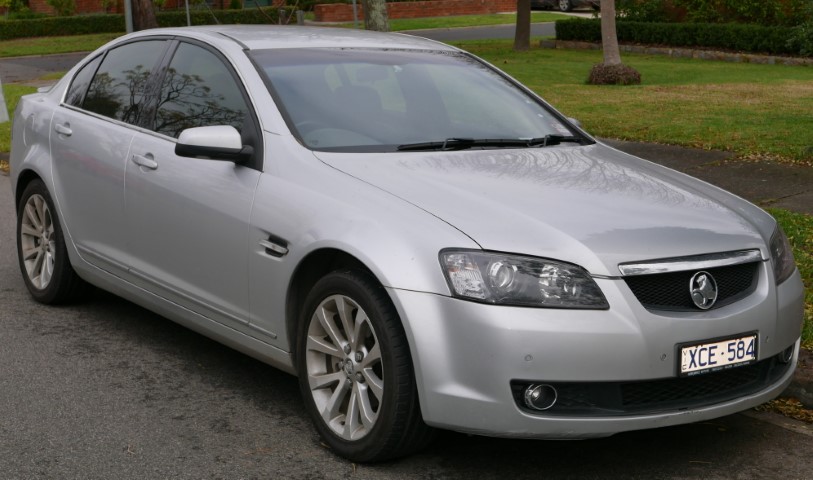

Holden Commodore VE Workshop Service Repair Manual download 2006-2013

The Holden Commodore (VE) is an executive car that was produced by Holden from 2006 to 2013. It was the first iteration of the fourth generation of the Commodore. Its range included the luxury variants, Holden Berlina (VE) and Holden Calais (VE); utility models were included as the Holden Ute (VE).As opposed to the VZ and all models previous which used Opel-sourced platforms adapted both mechanically and in size for the local market, the whole-new VE programme is the first Commodore to be developed exclusively by Holden in Australia. Despite its status as an all-new model, enginesÃcomprising the 3.6-litre V6 and more powerful 6.0-litre V8Ãhave been largely carried over from the VZ series. Clever features to help minimise export redevelopment costs, such as a symmetrical centre console housing a flush-fitting hand brake lever, facilitated the conversion to left-hand drive. Internationally, the VE was badge engineered as the Chevrolet Lumina, Chevrolet Omega and Pontiac G8. Holden implemented a staged roll-out of the VE variants, releasing the sedan first in July 2006. Prior to this, Holden stated they would manufacture two parallel generations of Commodores until the new station wagon and utility body styles were launched. Variants by Holden's performance vehicle partner, Holden Special Vehicles (HSV), were released soon after the sedan's debut alongside the long-wheelbase WM Statesman/Caprice models. The VE Ute did not enter production until 2007 when it was accompanied by the previewing of a Sportwagon concept. The Sportwagon itself was subsequently introduced in July 2008 with the standard Commodore wheelbase instead of the extended wheelbase of previous Commodore wagons. Updates to the VE have come in the form of model year (MY) changes from early 2007 onwards. Typically subtle in nature, these recurring changes have involved alterations to colours and trim, increased standard equipment, and a reduction in fuel consumption. More noteworthy adjustments have come in the form of a smaller 3.0-litre V6 engine for entry-level versions and "Series II" styling revisions in late 2010. Official manufacture of the sedan began at Holden's Elizabeth, South Australia production facility on 13 July 2006. Three days later, Holden publicly revealed the car at the Melbourne Convention Centre, broadcast simultaneously via the Internet. The launch occurred alongside that of the flagship WM Statesman/Caprice. Previous to this, Holden announced that VE station wagon and utility variants would be postponed and the VZ equivalents would remain in production. Sales of the VE Ute commenced on 22 August 2007. This was shortly followed by the unveiling of a Sportwagon concept, the production version of which was released in July 2008. Holden's designers and engineers began laying down the basics of a clean-sheet Commodore sedan in 1999. In the seven years of development, the car came to be Holden's largest and most expensive project, representing an expenditure exceeding A$1 billion and 3.4 million kilometres (2.1 million miles) of testing. In 1999 Peter Hughes, Holden's manager of exterior design, produced a two-dimensional image of a sketch drawn earlier by Michael Simcoe, Holden's design director at the time. Known in house as the "Bill of Design", the sketch formed the design basis for the production-ready car. Various elements of the sketch were changed, including the rear tail lamps, the low-profile side window cluster and the drawn out wheelbase, but the aggressive stance remained. In 2004, just two years before the release of the VE Commodore, Holden unveiled the Torana TT36 concept car at the Australian International Motor Show in Sydney. The TT36 served as a preview of the VE and allowed Holden to gauge public reaction to its styling. Much of the Torana's styling drew on the essence of the VE's design. Some production-ready components even carried over from the TT36 including the steering wheel, the window and rear-view mirror switch cluster and the handbrake lever. Shortly after stylists penned the first design sketches, Holden engineers began work on developing the chassis. Opel, which had provided the basis for all previous Commodore generations, ceased production of their rear-wheel drive Omega in 2003. This meant that Holden had two options: to use another GM platform, or to develop an all-new vehicle. GM's new premium rear-wheel drive Sigma platform was to see production in the 2002 Cadillac CTS. Holden's engineers were offered this platform, but decided it was not appropriate. The Sigma platform's double A-arm front suspension and extensive use of aluminium were too costly for the VE's market segment. The luggage compartment was deemed too small and the Sigma interior package could not be stretched sufficiently to become a family-sized car. In particular, the rear-seat shoulder width was too tight. These major drawbacks made Holden decide to develop an all-new platform, known as the GM Zeta platform, on which a number of forthcoming GM vehicles would also be based. The Zeta suspension system comprises new double-pivot MacPherson strut for the front and a four-link independent rear setup. These replace the previous simple MacPherson strut design front and much criticised semi-trailing arm rear suspension, for improved ride and handling. Denny Mooney was appointed chairman of Holden on 1 January 2004, by which time development of the VE Commodore was well underway. Key design and engineering work was being finalised, and investment was already being made in making the tooling with which to manufacture the car. One of Mooney's priorities was to improve the perceived quality issues that surrounded the previous generations of Commodores. The interior quality benefited dramatically from this additional emphasis; Mooney pushed for panel gaps to be reduced by a further 0.5 millimetres (0.020 in) over previous targets. Smaller panel gaps are just one of the ways that Holden have developed the VE to pitch it against the European competitors. Through the use of advanced steels and intensive design, the body structure is 50 percent stiffer than the outgoing model, benefiting from noise and vibration reductions, handling and crash safety. However the new body has resulted in substantially increased weight over the outgoing model. The development of the new car led Holden to redesign the Elizabeth plant in South Australia so that entire sections of the car can be assembled off the foremost production line. This new production method allows for complete sub-sections like the engine and transmissions to be constructed seamlessly together on rigs that simplify production. This process is applied to the front-end module of the VE Commodore, consisting of the headlights, bumpers, airbag sensors and other accessory components. It can be easily removed as one-piece leading to lower repair costs and easier access to the engine bay. This design represents the first time such a method has been used within GM, and garnered the SAE Australasia's 2006 Automotive Engineering Excellence Award. A modular design structure known within Holden as "Flex Vision" has been applied to the interior where fundamentally different components such as audio units and instrument clusters can be swapped out for the different Commodore variants, creating radically varied interior look and feel without much higher costs. The upshot of this is much greater differentiation between the variants than the outgoing model creating three distinct interior looks, dubbed: Functional, Performance and Luxury. The closely related long-wheelbase WM Statesman/Caprice derivatives feature a fourth interior type referred to as Prestige. Additional detail touches were added to the VE, such as a new four-strut hinge system for the boot to replace space intrusive, much maligned "gooseneck" hinges as used on previous Commodores. High-specification variants see expandable door pockets and a Saab-like "blackout" feature which illuminates only the speedometer at night to enhance driver focus on the road. An innovative flush-fitting handbrake set into a symmetrical centre console means the lever can be easily reversed to sit on the opposite side of console for left-hand drive export markets, minimising redesign costs. Unlike its predecessor, which utilised a longer wheelbase, the Sportwagon (MY09ÃMY09.5 SV6 pictured) shares the sedan's 2,915 mm (114.8 in) wheelbase Introduced in July 2008, the A$110 million VE Sportwagon programme represented a departure from previous Commodore station wagons. Holden was concerned that the traditional wagon market was being severely eroded by growing sport utility vehicle (SUV) sales and over-reliance on fleet purchasing. Up to 90 percent of VZ wagons were bought by fleet companies and Holden sought to attract more retail customers. The decision was made to develop a sportier, more stylish wagon as an alternative to SUVs. The Sportwagon, unlike the previous VZ wagon, which shared its long-wheelbase with the Statesman/Caprice is built on the same short-wheelbase platform as the sedan. This shift in thinking means cargo capacity is reduced from VZ's 1,402 to 895 litres (370 to 236 US gal) but the sedan's near 50:50 weight distribution is retained. The Sportwagon is styled with an aggressively sloping rear profile. To ensure the cargo opening is sufficiently large with such a profile, the tailgate hinges part way up the roof line. The design of the tailgate is compact enough to open in just 268 millimetres (10.6 in) of space, a publicised feature in Sportwagon television commercials. Revisions were made to the suspension over the sedan's setup. These included stiffer springs, anti-roll bar changes and an additional ball-joint in the rear suspension to handle the extra load.Weight increases by 91 kilograms (201 lb) over the sedan. Aggressive pricing means Sportwagon variants of each specification level receive a A$1,000 premium over the sedan and are cheaper than the outgoing VZ wagons. 2007 saw the launch of the VE Ute, a coupe utility based on the VE Commodore. It was unveiled to the media in August, with showroom sales began later in the month. This generation of the Holden Ute is aimed as a "lifestyle vehicle", a shift from the traditional "workhorse" market. The VE series Ute was marketed as the Holden Ute rather than as the Holden Commodore Ute. Omega: The base model, having similar standard features to the Commodore Omega sedan but can carry more than the SS V, SS and SV6. It has the standard 3.6-litre V6 180 kW . The manual version of the Omega came with the 3.6-litre High-Output V6 with 195 kW but only until the mid-2009 MY10 update. SV6: A sportier version of the V6 Ute, the SV6 replaced the S-pack from previous models. This has the 3.6-litre High-Output V6 with 195 kW . Which has been recently updated to 210 kW engine. SS: The SS Ute is the basic V8 version with the same 6-litre V8 as the Commodore sedan with 270 kW . SS V: A higher spec edition of the SS and based on the SS V Sedan, it has a 6-litre V8 with 270 kW . SS V Redline (Series II):A performance version of the SS V offering Brembo brakes, 19-inch Alloy wheels, FE3 Super Sports Performance Suspension and a tyre inflater kit. SS V Z Series: A variant that combines luxury and sport features, sold in late 2012/early 2013. Standard features include: 19" forged alloy wheels, front Brembo brakes with red calipers, FE3 suspension, sunroof (Sedan only), Z series carpet mats, Z series badges, rear view camera, rear park assist, exterior chrome highlights, leather wrapped steering wheel, chrome highlights in instrument cluster. Unlike the previous VUÃVZ generation, no double-cab, cab-chassis or AWD variants are offered. Holden, concerned about the risks of introducing a new platform and drivetrain at the same time, introduced the Australian-built Alloytec V6 engine in the proven VZ model. This allowed time to address any issues or faults before fitting it to the VE. The original base V6 benefited from power increases over the VZ, with engine noise reduced by using new timing chains among other modifications.An updated version of the long-serving four-speed GM 4L60-E automatic transmission remained for this engine. Manual transmission options are the Aisin AY6 and Tremec TR6060 six-speeder. Two automatics featuring Active Select; the five-speed GM 5L40-E and six-speed GM 6L80-E were also offered. The latter was reserved exclusively for a modified L76 V8 engine, giving an extra 10 kilowatts (13 hp) of power compared to the VZ. This new engine designated L98 does not readily support fuel-saving Active Fuel Management technology, unlike the L76. In October 2006, Holden introduced a bi-fuel version of the Alloytec V6, available to the Omega and Berlina. Able to run on both petrol and LPG, it features an advanced sequential vapour gas injection (SVGI) system and hardened valve seats to cope. The bi-fuel V6 produces 5 kW less than the conventional V6 when run on LPG, for a total of 175 kW (235 hp). Although LPG prices are lower, the engine uses a large 100 kg (220 lb) cylindrical gas tank which causes decreased boot space and slightly increased fuel consumption. Holden was able to take advantage of a loophole in government legislation, allowing an A$2,000 rebate on LPG installation because the unit is fitted post-production by Holden's customisation arm HSVi.Normally, people would only be entitled to a A$1,000 rebate for new cars pre-installed with LPG. Due to the possibility that these bi-fuel Commodores may have been fitted with undersized O-rings in the service valve hand tap, Holden issued a recall affecting the first 981 of these models on 10 April 2007. There were also two VE recalls previous to this. The initial 16 October 2006 recall affecting 1,521 V8 Commodore and WM Statesman/Caprice models involved a faulty fuel hose, causing a fuel smell to enter the cabin.A second 10 November 2006 recall affecting 12,830 Commodores and WM models built prior to 11 September 2006 resulted from defective rear seat belt anchors.On 7 December 2007, another recall was issued for over 86,000 VE and WM V6 models. This was due to the possibility that one of the fuel lines in the engine compartment may have a rub condition with a fuel vapour hose clip, possibly causing a fuel smell to become evident. For the 2008 Australian International Motor Show in Sydney, Holden announced the MY09.5 upgrade involving the standardisation of the "premium" Alloytec V6 across the Commodore range from 1 November 2008, whereas previously it had been reserved for the SV6 and Calais. Omega and Berlina variants acquired variable valve timing, like the High Output engine, but not the "premium" dual exhaust system and the five-speed automatic transmission. These changes result in the base petrol V6 producing 5 kW (7 hp) less power and 5 Nm less torque than the engine it replaces. However, Omega and Berlina sedans benefit from a two percent fuel efficiency improvement, or four percent for wagons. Additionally, emissions have also been reduced allowing petrol-powered variants to achieve Euro VI certification, a pending emission standard for European introduction in 2014. These changes extend further than the petrol engine as bi-fuel LPG variants benefit from an eight percent improvement in fuel economy when run on LPG. This reduced fuel consumption does however, come at a costÃLPG-equipped models are rated at 318 Nm less than before. Also announced at the 2008 motor show was a version of the 6.0-litre V8 engine fitted with Active Fuel Management (AFM) technology, known as the L76. Originally omitted from the L98 V8, AFM aids fuel consumption under light engine loads, although it is available only when paired with the automatic transmission and power output is reduced by 10 kilowatts (13 hp). The announcement of AFM coincided with the announcement of EcoLine, a badge highlighting Holden vehicles employing fuel saving technologies or those powered by fuels other than petrol. For the VE Commodore, both AFM and LPG-powered versions fall under the EcoLine umbrella. On 7 April 2009, Holden announced that dealerships were receiving their first deliveries of EcoLine-branded models, including the new L76 V8s. On 4 August 2009, Holden announced the MY10 revisions to the VE and WM range to be released in September. For the VE Omega and Berlina, the 3.6-litre Alloytec V6 has been downsized to 3.0-litres, the lowest engine displacement of a Commodore since the straight-six engine fitted to the 1986 VL series. This smaller capacity engine features Spark Ignition Direct Injection (SIDI) technology, and is officially claimed to reduce fuel consumption by up to 12 percent depending on the variant. Power increases to 190 kW (255 hp), although torque is reduced to 290 Nm. Along with the 3.0-litre engine, a 3.6-litre version of the same, producing 210 kW , was also unveiled. Other than the manual transmission version of the SV6, all SIDI V6 models are coupled to GM's 6L50 automatic and fall under Holden's EcoLine banner. Benefits to fuel economy for the 3.6-litre SIDI can also be attributed to an improved "deceleration fuel cut" system, which terminates the fuel supply during engine coasting; a higher efficiency alternator and voltage regulator; a 50 rpm lower idle speed (to 550 rpm); and a new "turbine damper" for the automatic transmission that works to suppress vibrations at low rpms, thus enabling earlier upshifts. Omega versions of the Ute and all bi-fuel versions retain the existing 3.6-litre and four-speed automatic combination, although the LPG engine has been tweaked for further efficiency gains. Replacing both the outgoing Commodore Executive and Acclaim (nameplates introduced in 1983 and 1993, respectively), the Omega offers a halfway point in terms of equipment levels. The most significant gain over the Executive is the electronic stability control system (Bosch version 8.0) now standard across the range. Like all VE models, the Omega uses a "space saver" spare tyre, which has come under scrutiny. The tyre can be driven for 500 kilometres (310 mi) at a maximum speed of 80 km/h (50 mph). Concerns have been raised by the public over its usefulness in remote Australian outback areas, far from any tyre repair centres and asserts that it is a cost-cutting measure. Similar concerns have been raised in the media, although Holden maintains that this is a weight-saving feature and allows for full-size spare tyres to be purchased at an additional cost. Likewise, critics found the omission of standard air conditioning for the Omega model unforgivable, given both the overall hot Australian climate, and the cost of the car. This, however, was rectified in the MY09 upgrade of the Omega (see below). Holden have offered five limited edition models based on the Commodore Omega: V-Series: introduced in October 2006, the Commodore V featured air conditioning, a sports-oriented body kit including 17-inch alloy wheels, a rear spoiler and colour-matched wing mirrors and exterior door handles. Lumina: debuted in June 2007 with a luxury theme including the Berlina grille and the original Calais V seven-spoke alloy wheels. Specified identically to the V-Series with exception to the rear spoiler, the Lumina saw the addition of rear parking sensors and Bluetooth connectivity. 60th Anniversary: released on 1 May 2008 to commemorate the 60th anniversary of the 48Ã215, Holden's first vehicle. Aside from the unique 18-inch alloy wheels, leather seat inserts, and "60th Anniversary" badging, the anniversary model is essentially identical to the Lumina in terms of both equipment and styling. International: sedans and Sportwagons entered production in mid-March 2009. Internationals are appointed with launch VE Calais V alloy wheels, front foglamps, a six-disc CD changer, leather upholstered trim and steering wheel, Bluetooth connectivity and rear park assist. Holden reintroduced the International in October 2009. Offered in sedan and Sportwagon body styles, the second iteration was fitted with the 3.0-litre SIDI V6 engine and six-speed automatic transmission; a 3.6-litre LPG Alloytec V6 engine with four-speed automatic transmission option was available for the sedan only. Extra features include 18-inch alloy wheels, Berlina front grille, leather seat trim and steering wheel, Bluetooth connectivity and rear park assist for the sedan (already standard on Sportwagons).Z Series: released on 5 September 2012 as a special edition Commodore. It was released to help boot the slowing sales of the VE range and to help send off the last model VE's before the VF was released. The Z Series combined luxury and sports features for great value. The models that had the Z badging were the Omega, SV6, SS and SS V. Features included leather seat trim (Omega and SS V), Bluetooth connect, rear parking sensors, rear parking camera, 18" WM Caprice alloys (Omega), rear lip spoiler, 19' alloys (SV6 and SS). The Sedan and Sportwagon came as Z Series, SV6 Z Series, SS Z Series and SS V Z Series. The Ute came with all except for the Omega-based Z Series model. Commodore SV6 Building on the Omega, the SV6 is equipped with the more powerful High Output variant of the Alloytec V6 engine, coupled to a six-speed manual or five-speed automatic transmission. Air conditioning, a key feature missing on the launch Omega, came standard on the SV6. A body kit and sports suspension similar to the V8 Commodore SS/SS V variants is also fitted. The SV6 sports the Performance interior look, an accentuated matte black centre console and red lighting, as opposed to the silver Functional-style interior of the Omega. Thunder SV6 Ute The thunder SV6 ute received charcoal coloured 19-inch alloy wheels, satellite navigation, leather seat bolsters and Thunder badging. SV6 Z Series Released on the 5th September 2012, the Z Series combined sportiness with luxury for maximum value. It was used to market off the final VE models before the launch of the VF and to promote the value of the Commodore due to slowing sales. The Z Series was mechanically the same as the standard SV6 but gained 19 inch charcoal alloy wheels, leather bolstered seats, Z Series badging, Z Series carpet, rear view camera and rear sensors. Full leather, satellite navigation, a tilt and slide sunroof and a full size spare were all optional extras offered with the Z Series. Commodore VE SS Offering similar equipment levels to the SV6, the Commodore SS uses the 6.0-litre V8 engine and T-56 six-speed manual transmission. The SS is recognisable from its quad exhaust outlets in place of the SV6 dual outlets. The resulting specification level is much higher than the outgoing minimalist SV8 and only missing a few cosmetic touches of the previous flagship Commodore SS. Since its release, the SS has won two consecutive (2006 and 2007) Bang For Your Bucks awards,\Motor magazine initiative. The judges gave preference to the SS the second-time-round because ."A more upmarket SS, the SS V-Series represents the first time this type of naming has been applied to Holden products. The V-Series naming is reminiscent of the V-badging on selected Cadillac models, another member of the GM family. The badge design on the bootlid bears strong resemblance to the ones used by Cadillac. But whereas Cadillac uses it to signify high-performance versions of its products, Holden V-Series variants boast extra features. The V-Series variants were introduced, largely due to a fully optioned Commodore SS in the VZ range being rather successful. The SS V offers extra luxuries at a similar price point to the preceding SS. Inside, it is recognisable by the metallic look pedals and instruments matched with the exterior colour. Additionally, the entire dashboard can be optioned in a range of loud colours: bright red, orange or black. The SS V exterior is equally adventurous, exhibiting five-spoke 19-inch alloy wheels and the option of larger 20-inch wheels: the largest wheels ever fitted to a Holden car. SS V 60th Anniversary: like the 60th Anniversary Omega-based edition, the SS V pack launched on 1 May 2008. Over the standard production SS V, the anniversary model added 10-spoke 20-inch alloy wheels, satellite navigation, rear parking sensors, a high-mounted rear spoiler, chrome exterior door handle highlights and "60th Anniversary" badging and floor mats. SS V-Series Special Edition: following the 2009 cancellation of Pontiac brand in North America, the Pontiac G8 front-end fascia and other trimmings were fitted to approximately 1,500 Commodore SS Vs. Unveiled at the 2009 Deniliquin ute muster on 2 October, sales began in November.Unlike the G8 which was only offered as a sedan, Holden issued utility, sedan and Sportwagon body variants of the Special Edition.Due to the popularity of the Pontiac-inspired SS V, Holden announced on 14 January 2010 that production would be extended until March 2010. Thunder SS Ute Additional equipment over the standard SS were- 19-inch alloys, lowered sports suspension, excellent satnav with camera warning and traffic info', Bluetooth phone and audio and partial leather sports seats. Berlina Priced lower than the outgoing model, the second tier Berlina retains a similar amount of equipment. The exterior styling is similar to the Omega but gaining extra touches such as larger tail-lights, front fog lamps and seven-spoke 17-inch alloy wheels. It features the Luxury-type interior with a large LCD centre display and is the only model in the VE range that features wood grain highlights. The VE series is the last one to feature this nameplate, first introduced in 1984 as a model variant and as a standalone nameplate in 1988 . Berlina International: The Berlina International was based on the Series II Berlina but had a number of additional features. It was available as a sedan or wagon. It featured leather trim, 18-inch alloy wheels and a reversing camera. Equipe: The Equipe was a luxury special edition Berlina released in 2011 under the Series II badge. It was based on the Berlina but also had many Calais features. In many ways it was similar to the previous limited edition Berlina International but was even better equipped. The car featured 18" Calais alloy rims, full leather Calais interior, fog lamps, rear parking sensors, rear view camera and came as a Sedan or Sportswagon model. The Sportwagon also featured a cargo blind. The car had $9600 of additional features. This special edition was limited to 7 colours and limited build numbers. The colours were Heron White, Sizzle, Karma, Nitrate, Alto Grey, Phantom and Mirage Glow. Satellite Navigation was available as an option. Calais Like the Berlina, the Calais retains the features of the outgoing model but at a lower price point. Offering a blend of luxury and sporting character, it pairs the High Output Alloytec V6 engine of the SV6 with the five-speed automatic transmission. Unlike the previous model Calais which featured a semi-sport suspension setup known as FE1.5, the VE shares the Commodore SS/SS V stiff sports suspension. Like the SS, an upscale V-Series edition is available. Being the flagship of the Commodore range, it comes with everything the VE has to offer and serves as a stepping stone to the luxury long-wheelbase Statesman/Caprice range based on the VE. The Calais (as well as Berlina) are the only models in the range to feature larger tail-lights. Calais V International: Based on the Series I, the Calais V International was available with V6 or V8 and auto transmission. The model featured 19" alloy wheels, unique interior trim, chrome exterior door handles, colour satellite navigation and alloy faced pedals. Calais V 60th Anniversary: The Calais V 60th Anniversary Edition featured electronic sunroof and 19" alloy wheels. It also featured onyx/ light urban leather interior, alloy faced pedals and chrome exterior door handles.
