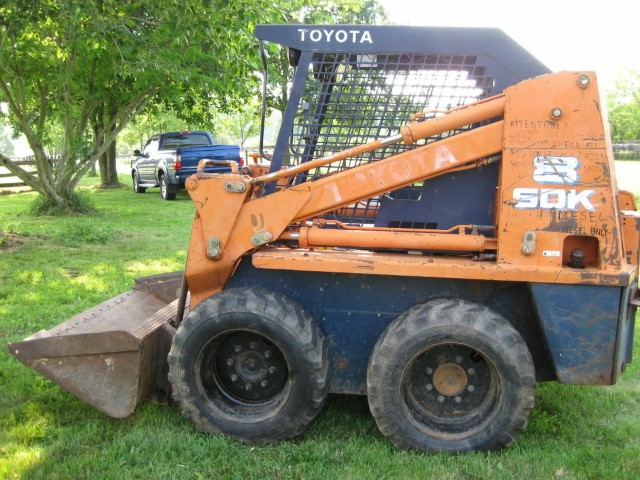

A skid loader, skid-steer loader or skidsteer is a small, rigid-frame, engine-powered machine with lift arms used to attach a wide variety of labor-saving tools or attachments. Skid-steer loaders are typically four-wheel vehicles with the wheels mechanically locked in synchronization on each side, and where the left-side drive wheels can be driven independently of the right-side drive wheels. The wheels typically have no separate steering mechanism and hold a fixed straight alignment on the body of the machine. Turning is accomplished by differential steering, in which the left and right wheel pairs are operated at different speeds, and the machine turns by skidding or dragging its fixed-orientation wheels across the ground. The extremely rigid frame and strong wheel bearings prevent the torsional forces caused by this dragging motion from damaging the machine. As with tracked vehicles, the high ground friction produced by skid steers can rip up soft or fragile road surfaces. They can be converted to low ground friction by using specially designed wheels such as the Mecanum wheel. Skid-steer loaders are capable of zero-radius, "pirouette" turning, which makes them extremely maneuverable and valuable for applications that require a compact, agile loader. Skid-steer loaders are sometimes equipped with tracks instead of the wheels, and such a vehicle is known as a multi-terrain loader. Unlike in a conventional front loader, the lift arms in these machines are alongside the driver with the pivot points behind the driver's shoulders. Because of the operator's proximity to moving booms, early skid loaders were not as safe as conventional front loaders, particularly during entry and exit of the operator. Modern skid loaders have fully enclosed cabs and other features to protect the operator. Like other front loaders, it can push material from one location to another, carry material in its bucket or load material into a truck or trailer. The first three-wheeled, front-end loader was invented by brothers Cyril and Louis Keller in Rothsay, Minnesota, in 1957. The Kellers built the loader to help a farmer, Eddie Velo, mechanize the process of cleaning turkey manure from his barn. The light and compact machine, with its rear caster wheel, was able to turn around within its own length, while performing the same tasks as a conventional front-end loader. The Melroe brothers, of Melroe Manufacturing Company in Gwinner, North Dakota, purchased the rights to the Keller loader in 1958 and hired the Kellers to continue refining their invention. As a result of this partnership, the M-200 Melroe self-propelled loader was introduced at the end of 1958. It featured two independent front-drive wheels and a rear caster wheel, a 12.9 hp (9.6 kW) engine and a 750-pound (340 kg) lift capacity. Two years later they replaced the caster wheel with a rear axle and introduced the M-400, the first four-wheel, true skid-steer loader. The M-440 was powered by a 15.5 hp (11.6 kW) engine and had an 1,100-pound (500 kg) rated operating capacity. Skid-steer development continued into the mid-1960s with the M600 loader. The conventional bucket of many skid loaders can be replaced with a variety of specialized buckets or attachments, many powered by the loader's hydraulic system. These include backhoe, hydraulic breaker, pallet forks, angle broom, sweeper, auger, mower, snow blower, stump grinder, tree spade, trencher, dumping hopper, pavement miller, ripper, tillers, grapple, tilt, roller, snow blade, wheel saw, cement mixer, and wood chipper machine. Some models of skid steer now also have an automatic attachment changer mechanism. This allows a driver to change between a variety of terrain handling, shaping, and leveling tools without having to leave the machine, by using a hydraulic control mechanism to latch onto the attachments. Hydraulic supply lines to powered attachments may be routed so that the couplings are located near the cab, and the driver does not need to leave the machine to connect or disconnect those supply lines. The original skid-steer loader arms were designed using a hinge at the rear of the machine to pivot the loader arm up into the air in an arc that swings up over the top of the operator. This design tends to limit the usable height to how long the loader arm is and the height of that pivot point. In the raised position the front of the loader arm moves towards the rear of the machine, requiring the operator to move extremely close to or press up against the side of a tall container or other transport vehicle to get the bucket close enough to dump accurately. At the highest arm positions the bucket may overflow the rear of the bucket and spill directly onto the top of the machine's cab. An extended reach design uses multiple hinges and parallel lifting bars on the loader arm, with the main pivot points towards the center or front of the machine. This allows the loader arm to have much greater operating height while retaining a compact design, and allows the vertical movement to be less of an arc and more straight-up vertical, to keep the bucket forward of the operator's cab, allowing safe dumping into tall containers or vehicles. A skid-steer loader can sometimes be used in place of a large excavator by digging a hole from the inside. The skid loader first digs a ramp leading to the edge of the desired excavation. It then uses the ramp to carry material out of the hole. The skid loader reshapes the ramp making it steeper and longer as the excavation deepens. This method is particularly useful for digging under a structure where overhead clearance does not allow for the boom of a large excavator, such as digging a basement under an existing house. Several companies make backhoe attachments for skid-steers. These are more effective for digging in a small area than the method above and can work in the same environments. Other applications may consist of transporting raw material around a job site, or assisting in the rough grading process.

Tools & consumables
- Metric socket set (8–14 mm), ratchet, extensions, swivel/universal joint
- Hex/Allen & Torx bits (as required)
- Screwdrivers: Phillips, flat, trim/panel
- Trim-panel removal tools / plastic pry bars
- Hose clamp pliers / large slip-joint pliers
- Line wrenches for coolant fittings (if any)
- Utility knife / razor blade (for cutting old hoses)
- Pick set (for O‑rings/seal removal)
- Torque wrench (where specified)
- Drain pan, funnel, gloves, eye protection
- Clean rags, shop towels
- Coolant-approved vacuum fill kit or pressure bleed kit (strongly recommended)
- Engine coolant (OEM type), distilled water
- New hose clamps (single‑use spring clamps or worm clamps as OEM)
- New heater core (OEM or aftermarket specific to SGK6 / SDK6 / SDK8)
- Replacement heater hoses, O‑rings/seals, HVAC housing gaskets as needed
- Coolant pressure tester (for leak check)
- Plastic bags & marker for fasteners labeling
- Service manual or factory torque specs (recommended)

Safety precautions
- Work on a level surface with parking brake engaged and keys removed.
- Let engine & coolant cool completely before opening system. Pressurized hot coolant will cause severe burns.
- Wear eye protection and gloves. Avoid skin contact with coolant; capture & dispose used coolant per local regulations.
- Disconnect battery negative terminal before removing electrical components in the cab.
- Label harnesses, screws, and panels for reassembly to avoid wrong connections.
- Support removed panels so they don’t fall and damage HVAC components.

Overview of procedure
High level: drain coolant, disconnect heater hoses at engine side, remove cab/dash panels to access HVAC/heater box, remove blower motor and HVAC housing cover, extract old heater core, install new heater core and seals, reconnect hoses, refill and bleed the cooling system, pressure-test for leaks, reassemble.

Step-by-step procedure
1) Preparation
- Park machine level, set parking brake, shut down engine and allow to cool.
- Disconnect negative battery terminal.
- Place drain pan under radiator/coolant drain. Open coolant drain cock or remove lower radiator hose to drain enough coolant to lower the level below heater hose connection points. Save coolant if clean, otherwise dispose and plan fresh fill.

2) Isolate and disconnect heater hoses (engine compartment)
- Locate the two heater hoses from the engine to the cab/HVAC housing. They usually pass through the firewall or through a rubber boot.
- Use hose clamp pliers or screwdriver to remove clamps and slide clamps back. If hoses are brittle, cut them off. Cap or plug fittings to limit coolant loss.
- Clean area around firewall penetration to prevent dirt entering HVAC.

3) Gain interior access
- Enter cab, remove seat if necessary for access. Remove lower dash panels and trim around HVAC box using trim tools and screwdrivers. Label fasteners and harness locations.
- Disconnect blower motor electrical connector and remove blower motor (unplug and unbolt). Removing blower motor often gives access to heater core cover.
- Remove any control cables, vacuum lines or actuator linkages attached to the HVAC box — mark their positions.

4) Open HVAC/heater box
- Unbolt the heater box / HVAC housing cover. Expect multiple screws, clips and plastic fasteners. Use trim tools to pry loose carefully.
- Note: OEM uses plastic clips—work methodically and keep spare clips on hand.

5) Extract old heater core
- With the housing open, locate the heater core. It’s usually a rectangular core with inlet/outlet tube connections to the firewall.
- Remove retaining brackets/clamps and carefully pull the heater core out toward the interior side or as space allows. Be gentle to avoid crushing fins or spilling residual coolant into the cab.
- Remove any old gaskets or foam seals; clean mating surfaces.

6) Inspect & replace ancillaries
- Inspect heater hoses, firewall boot, hose fittings, O‑rings and HVAC seals. Replace any brittle hoses, damaged seals or O‑rings. It’s good practice to replace the hose-to-core seals and clamps.
- If the heater core uses a check valve or heater control valve, inspect/test it and replace if leaking or sticking.

7) Install new heater core
- Pre-fit new core into housing to confirm orientation. Transfer any mounting brackets or rubber cushions from the old core to the new one.
- Install new seals/gaskets/foam strips exactly where they belong. Replace firewall boot if degraded.
- Slide the core into place; secure with the original clips/bolts. Do not overtighten plastic fasteners; they’re meant to be snug.

8) Reassemble HVAC box
- Reinstall the heater box cover and any internal baffles or insulation. Reinstall blower motor and electrical connectors.
- Reattach control cables/actuators in the exact positions. Verify damper operation manually before finishing dash reassembly.

9) Reconnect heater hoses (engine compartment)
- Route new or cleaned heater hoses and push them onto the heater core tubes and engine fittings. Use new clamps; spring clamps or worm gear clamps as OEM. Ensure clamp positioned correctly over barb.
- Tighten clamps securely but avoid crushing thin heater tubes.

10) Refill and bleed cooling system
- Reinstall any drained fittings or radiator drain; tighten to spec.
- Use a vacuum fill kit or follow manual bleeding procedure: with radiator cap off, pour in a 50/50 mix of correct coolant and distilled water until full. Start engine and run at idle with heater on max hot and blower on to circulate coolant through heater core; watch for air bubbles.
- If system has a manual bleed screw(s) at high point(s) on the firewall or heater hoses, open them until a steady stream of coolant flows, then close.
- Top off reservoir and reinstall cap when no air is seen. Monitor coolant level after warm up and again after cool down; top as needed.

11) Pressure test & leak check
- Use a coolant pressure tester to pressurize system to manufacturer spec (typically around 15 psi for many systems). Watch for pressure hold and leaks around heater core hoses, clamps, and housing seams.
- Also run engine and inspect interior under dash for leaks. Check for damp carpets or coolant smell.

12) Final reassembly & test
- Reinstall dash panels, seat, and any remaining trim. Reconnect battery negative.
- Start engine, verify heater output at various blower speeds and temperature settings. Check no coolant leaks over 15–30 minutes of running.
- Road test or operate loader with load to bring to normal operating temperature and recheck coolant level and leaks after cool down.

Common pitfalls & how to avoid them
- Not draining enough coolant before disconnecting hoses: Expect spills. Use plugs or caps immediately after hose removal.
- Damaging brittle plastic clips / dash trim: Use proper trim tools, keep spare clips.
- Forgetting to replace O‑rings/seals: Old seals often leak—replace them.
- Not bleeding air from the heater core: This causes no-heat or overheating; use vacuum fill or open bleed screws while running.
- Cross-threading or over-torquing plastic fasteners: Tighten plastic screws only to snug; replace broken fasteners.
- Contaminating the HVAC/blower motor with coolant: Protect blower motor and electrical connectors from drips; remove the blower or plug it before draining.
- Reusing old coolant improperly: Old coolant can be contaminated; use fresh coolant or filter before reusing.
- Wrong orientation of core: Ensure inlet/outlet and mounting tabs align—otherwise leaks or poor fit.

How each main tool is used (short)
- Hose clamp pliers: Squeeze jaws to open spring clamps, slide clamp back on hose to free end. Release to clamp.
- Socket set/ratchet: Remove and install bolts; use extensions and universal joints to reach confined areas.
- Trim tools: Pry plastic trim clips without scoring panels; work under clip lip and pry straight up.
- Vacuum fill kit: Connect to radiator or reservoir, pull vacuum to remove air, then open valve to draw coolant into system — fastest, most reliable bleed.
- Coolant pressure tester: Screw onto radiator neck or cap adapter, pump to desired psi, observe pressure hold and locate leaks.

Replacement parts typically required
- Heater core (specific to Toyota SGK6 / SDK6 / SDK8)
- Heater hoses or at least hose ends (if brittle)
- Hose clamps (new)
- HVAC housing gaskets/foam seals
- O‑rings for heater core tubes (if applicable)
- Possibly heater control valve or check valve, if present and faulty

Notes & final checks
- Always consult the factory workshop manual for model‑specific access panels, bolt sizes and torque specs.
- Keep a container to catch any coolant from the cab side; interior carpets and insulation dry out thoroughly or replace if saturated.
- After replacement, monitor coolant level and check for sweet odor inside cab — indicative of an interior leak.

Done.
rteeqp73

- Safety first (read this before you start)
- Wear eye protection, gloves, steel-toe boots and long sleeves; dusty, oily metal and flying rust/parts are common.
- Work on a flat, level surface; block wheels with heavy-duty wheel chocks.
- Lower the loader arms and attachments to the ground, shut the engine off, remove the key and disconnect the negative battery cable to prevent accidental engine start or hydraulic movement.
- Release any trapped hydraulic pressure per the operator’s manual (if you cannot confirm how, do not proceed — get professional help).
- Use jack stands rated above the machine’s weight capacity at the recommended lift points; never rely on a hydraulic jack alone.
- If you feel uncertain at any stage, stop and seek a qualified technician — suspension/steering failures can cause injury or worse.

- Tools you will need (every tool described and how to use it)
- Metric socket set (10–32 mm range), 1/4", 3/8", 1/2" drive ratchets and extensions
- What it is: sockets and ratchets that fit the machine’s bolts (Toyota equipment uses metric hardware).
- How to use: choose the correct socket that fits snug on the nut/bolt, attach to ratchet or breaker bar; turn clockwise to tighten and counterclockwise to loosen.
- Combination wrench set (metric)
- What it is: open-end and box-end wrenches for holding bolt heads while turning the nut.
- How to use: place appropriate size wrench on the nut/bolt head opposite the socket/ratchet to prevent rounding.
- Breaker bar (18–24" length)
- What it is: a long non-ratcheting bar for extra leverage.
- How to use: fit socket onto stubborn nuts/bolts and apply steady force; don’t jerk. Use penetrating oil first for rusted bolts.
- Torque wrench (click-type, 1/2" drive, 20–250 Nm or imperial equivalent)
- What it is: precision tool to tighten bolts to a specified torque.
- How to use: set required torque on the wrench; tighten slowly until it clicks and then stop. Always verify torque specs from the service manual.
- Hydraulic floor jack (rated for the machine weight at the lift point) and heavy-duty jack stands
- What they are: jack lifts the machine; stands support load safely.
- How to use: position jack at the manufacturer’s lift point, lift a little, position jack stands at recommended support points, then slowly lower onto stands. Never get under the machine supported only by the jack.
- Wheel chocks (heavy-duty)
- What they are: blocks to stop rolling.
- How to use: place in front of and behind wheels remaining on ground; use at least two chocks.
- Penetrating oil (e.g., PB Blaster, WD-40 Specialist)
- What it is: lubricant that loosens rusted fasteners.
- How to use: spray on stuck bolts, let soak 10–30 minutes; repeat if needed.
- Hammer and punch (center punch)
- What they are: for driving out cotter pins or pins and persuading stuck parts.
- How to use: use punch to drive out roll pins or to tap components free; use controlled strikes.
- Ball-joint separator (pickle fork) or a two-arm puller/ball joint press
- What it is: tool to separate ball-joint stud from the steering knuckle.
- How to use: position between ball joint and knuckle, strike with hammer (pickle fork) or operate puller to push joint out. A press is safer for press-in joints; pickle forks damage boots and are blunt-force.
- Hammer drill / heat source (propane torch) — optional, use with caution
- What it is: heat can expand stuck metal to help free bolts; a drill helps remove seized metal fastener if needed.
- How to use: apply controlled heat to nut area (not to rubber/hydraulic lines); use drill only if competent — this introduces fire risk; avoid near fuel/hydraulic lines.
- Impact wrench (12V/air) — optional
- What it is: fast electric/air wrench to remove tight fasteners quickly.
- How to use: use short bursts, don’t over-torque on reinstallation — always finish with torque wrench to spec.
- Ball joint press kit (C-clamp style) — recommended if ball joints are pressed in
- What it is: set of adapters and a screw press to remove/install pressed ball joints or bushings.
- How to use: assemble correct adapters around joint and turn the screw to press the joint out or in; follow kit instructions closely.
- Pry bars and large screwdrivers
- What they are: to coax components and control arms out of place.
- How to use: apply steady, controlled leverage; avoid sudden force which may damage brackets.
- Grease gun and compatible grease
- What it is: used to lubricate new fittings/greaseable joints.
- How to use: attach to grease nipple and pump until fresh grease appears at joint or fitting.
- Safety equipment: safety glasses, gloves, hearing protection, wheel chocks, jack stands (described earlier)
- How to use: wear/provide at all times.

- Extra or specialized tools you may need and why
- Press or hydraulic shop press — required if ball joints or bushings are pressed into the control arm and you don’t want to buy a pre-assembled arm.
- Puller/press adapters specific to the arm/ball joint — easier and safer to remove/install without damaging components.
- Impact sockets and breaker bar extensions — for deeply recessed nuts/bolts.
- Torque angle gauge — if the service manual calls for torque + angle method for critical fasteners.
- Service manual or OEM shop guide — not a hand tool but essential: contains model-specific torque specs, safety points, diagrams and sequence. You need this.

- Replacement parts commonly required and why
- Complete replacement control arm assembly (OEM or quality aftermarket)
- Why: often cheaper, safer and simpler to buy the arm with bushings and ball joint pre-installed so you avoid pressing jobs and risk of damage. Use the part number for SGK6/SDK6/SDK8 specific arm.
- Ball joint (if separate) or ball joint cartridge
- Why: worn ball joints cause play, steering wander, uneven wear; replace when loose or boot damaged.
- Bushings (rubber/urethane) and sleeves
- Why: worn bushings cause clunking and misalignment; replace to restore proper geometry.
- Fasteners (bolts, nuts, washers) and cotter pins
- Why: damaged or stretched fasteners must be replaced to factory spec; cotter pins always replaced.
- Grease fittings (zerk fittings)
- Why: if missing or clogged, joints not lubricated and will fail early.
- Anti-seize compound and threadlocker (medium strength)
- Why: anti-seize prevents galling on steel threads; threadlocker prevents bolts back-out on some critical fasteners (follow manual).
- Wheel bearing / hub hardware — inspect and replace if worn
- Why: if control arm failure coincided with wheel play, replacing bearings may be needed.

- Step-by-step control arm replacement (logical sequence; follow model service manual where different)
- Prepare workspace: park on firm, level ground; block remaining wheels; gather tools and new parts; put on PPE.
- Disable machine: lower attachments, shut off engine, remove key, disconnect negative battery cable, bleed hydraulic pressure if required by manual.
- Lift and support: use hydraulic jack at the manufacturer lift point to raise the side to be worked on, place rated jack stands at specified support points, confirm machine is stable before working under it.
- Remove wheel/track/driveline obstacle: if wheels present, remove wheel to access steering knuckle; if drive components block access, remove according to manual and support hub/axle safe.
- Inspect and note orientation: before loosening anything, photograph or mark positions of components, brackets and linkages for correct reassembly.
- Loosen and remove fasteners that secure the control arm
- Use penetrating oil on nuts/bolts first; allow soak time.
- Support the control arm with a jack or block to prevent it from dropping when bolts are removed.
- Remove cotter pins and castle nuts on ball joint studs first (use punch and hammer to remove cotter pin).
- Use a socket/wrench to remove the large bolts holding the control arm to the frame/subframe and to the knuckle.
- If bolts are seized, use breaker bar or heat; be careful not to damage surrounding hoses or electricals.
- Separate ball joint from knuckle
- Use a ball-joint separator or puller, or a pickle fork as last resort (pickle fork will damage the boot).
- If pressed in, use a ball-joint press kit to press the stud out of the knuckle.
- Remove the control arm
- Once fasteners and ball joints are free, swing the arm out carefully; watch for remaining brake lines, sensors or hoses. Label any lines that needed disconnection.
- Inspect mount points and related parts
- Check for damaged brackets, bent knuckle, worn bushings, and damaged hardware.
- Replace any corroded fasteners, damaged sleeves, or bushings.
- Prepare new control arm
- If you bought a pre-assembled arm, verify ball joint and bushings are present and grease zerks installed.
- If you’re pressing in a ball joint or bushings, use a bench press or ball joint press and the proper adapters to install without damaging bearings/seals.
- Apply anti-seize on non torque-critical threads if recommended, or threadlocker where specified by manual.
- Install new control arm
- Position arm into place and insert mounting bolts hand-tight to hold it.
- Reconnect ball joint to knuckle; fit new castle nut and torque finger-tight to spec.
- If the design requires, align the arm to a reference mark or use the photos taken earlier.
- Torque to specification and cotter pins
- Tighten all mounting bolts to the service manual torque specs using the torque wrench; do not guess.
- Tighten the castle nut to spec, then align the castle slot and insert a new cotter pin; bend cotter pin ends securely.
- If a torque + angle is specified, follow that exact procedure.
- Grease all fittings
- Use the grease gun to lubricate new joints until grease is visible at the boots or per manual.
- Reinstall wheel/hub and lower machine
- Refit wheel and torque lug nuts to spec; remove jack stands and lower machine carefully.
- Final checks and road/test
- Check that nothing is rubbing, that steering moves freely through full travel, and there is no binding.
- Start the machine, cycle suspension/steering slowly and check for leaks or unusual noises.
- Take a cautious test run at low speed; re-torque fasteners after a short test per manual (some manufacturers require re-torque after a few hours operation).
- Have wheel alignment/steering geometry checked and adjusted by a shop if necessary; after control arm replacement alignment is often required.

- How to know if replacement is required (symptoms)
- Visible play in ball joint or bushing when you grab and move the wheel/knuckle by hand.
- Clunking noises over bumps or during steering changes.
- Uneven or rapid tire wear.
- Steering wander or pulling to one side.
- Bent or visibly damaged control arm.
- If any of these are present, replace the arm/bushings/ball joints as appropriate.

- Important model-specific notes and limitations
- Exact bolt sizes, torque values, and removal sequences vary by model (SGK6, SDK6, SDK8). Always verify torque specs and sequences in the Toyota service manual for those models.
- If the control arm’s ball joint is a pressed-in type and you don’t have a press or the skill to use one, buy the arm pre-assembled or have a shop press the joint. Pressing incorrectly damages parts and is a safety hazard.
- If hydraulic lines, brakes or sensors are near the arm, take care not to stretch, kink or damage them; replace any damaged lines.

- Quick parts checklist to buy before starting
- OEM control arm assembly (or control arm + ball joint + bushings separately if you will press them)
- New nuts, bolts and cotter pins as required
- Grease and grease fittings if missing
- Anti-seize and medium-strength threadlocker
- Penetrating oil

- Final safety reminder (read before you finish)
- If you have any doubt about lifted weight ratings, the proper lift point, torque specs, or pressing operations, stop and use a qualified shop. Safety-critical steering and suspension work is high risk if done incorrectly.

No further questions.
rteeqp73

Tools / consumables needed
- Basic hand tools set: metric sockets, ratchets, extensions, wrenches, screwdrivers.
- Torque wrench (range covering low to high torques used on this machine).
- Bearing puller / slide hammer (3‑arm or internal, as applicable).
- Hydraulic press (or bench press) and assorted bearing drivers (protective sleeves).
- Snap‑ring pliers (internal & external).
- Drift punches, soft‑face hammer / dead blow.
- Heat source (induction heater or oven) for bearing seating if press unavailable.
- Dial indicator and magnetic base (for runout/endplay checks).
- Feeler gauges, feeler/shim set.
- Seal driver / PVC pipe or appropriate diameter socket to install new seals.
- Cleaning solvent, lint‑free rags, shop air.
- Thread locker (medium strength), anti‑seize compound.
- New bearing installer kit (or correct OEM driver).
- Hydraulic fluid / gear oil specified by Toyota, and oil containment pan.
- Replacement parts: new input‑shaft bearing (OEM part), input shaft oil seal(s), gasket/seal kit for cover(s), snap rings/circlips if worn, shims if required.
- PPE: safety glasses, gloves, hearing protection, steel‑toe boots.

Safety / preparation
- Park on level ground. Chock wheels. Lower lift arms to the ground and put safety props or blocks under them.
- Relieve all hydraulic pressure in the system per Toyota shop manual procedure. Turn off engine, remove key, disconnect battery negative lead. Allow engine & driveline to cool.
- Use proper lifting points and rated jacks/stands to support machine if elevated. Never rely on the loader arms alone.
- Drain relevant fluids (gearbox/transaxle/hydraulic drive) into a suitable container. Dispose per regulations.
- Work in a well‑ventilated area and keep fire extinguisher handy when heating bearings or parts.

Overview of job
- Remove access panels, belts/couplings, drive components to expose the input housing and shaft. Remove cover(s), then remove retaining rings and components to withdraw the input shaft. Press out old bearing from shaft or housing; fit new bearing correctly; install seals; reassemble and set correct preload/endplay; refill fluids and test. Follow torque specs and shimming per OEM manual.

Step‑by‑step procedure
1) Preparation & access
- Remove engine side covers, inlet/outlet ducts and any guards blocking access to the transmission/input housing.
- Label and photograph connections to ensure correct reassembly (wire harnesses, hoses).
- Remove any belts, pulleys, couplings or adapters on the input shaft. Use puller for pulleys/couplings.

2) Drain fluids and relieve residual pressure
- Drain gearbox/transaxle or hydrostatic unit oil into pan. Cap open ports to avoid contamination.

3) Remove housing/cover to expose input shaft
- Unbolt and remove the input housing cover or gearbox cover following sequence in manual. Keep bolts organized.
- Inspect mating surfaces and remove old gasket material.

4) Remove retaining hardware and free the input shaft
- Remove snap rings, circlips, lock nuts, or thrust washers retaining the shaft. Use snap‑ring pliers and store small parts in labeled containers.
- Slide the input shaft out of the housing. Support the shaft—if it’s heavy use suitable support or hoist. If the shaft resists, use a puller or appropriate drift from the housing side to push it out evenly.

5) Remove old bearing(s) from shaft or housing
- Identify whether the bearing is seated on shaft or in housing. If on the shaft, support the shaft in the press. Use bearing drivers sized to press on the outer race to avoid putting load through rollers/balls. Press bearing off toward the shaft end. If bearing is in the housing, press it out from the opposite side using a mandrel against the inner race if possible (do not press on race that will be reused).
- If no press, use a bearing puller with careful, even force. Avoid hammering directly on bearing races.

6) Clean and inspect parts
- Thoroughly clean the shaft, keyways, spline areas, and housing bores. Inspect shaft journals, splines and housing bore for scoring, pitting, or ovality. Check snap ring grooves.
- Measure shaft journal diameter and housing bore; compare to service limits. Replace shaft or housing if out of spec. Replace bearing if damaged beyond normal wear.

7) Prepare new bearing and seals
- Verify the bearing part number and orientation. Confirm seals and circlips match. Lightly lubricate the bearing with assembly oil or the lubricant specified by Toyota (don’t pack with grease unless manual specifies). Pre‑heat bearing to 60–80°C if using thermal fit method (do not exceed manufacturer temp).

8) Install new bearing correctly
- Use a press and a driver that contacts only the correct race (press on inner race when pressing onto shaft; press on outer race when pressing into housing). Do not apply force through the rolling elements.
- Seat the bearing fully to the correct shoulder. If using heat, slide heated bearing onto shaft quickly ensuring concentric fit. Cool slowly.
- Install any required shims or spacers per manual to achieve specified preload or endplay. Use feeler gauges or dial indicator to measure axial play. Adjust shims until within service spec.

9) Replace oil seals and circlips
- Drive new oil seal in square and flush to the specified depth using a seal driver. Lightly coat lips with assembly oil.
- Install new snap rings/circlips into grooves; ensure they are fully seated in their groove.

10) Reinstall input shaft assembly
- Slide shaft back into housing carefully, avoiding damage to the new seal lip. If resistance, use plastic sleeve or protector on shaft end. Ensure shaft engages any internal components (gears, splines) correctly.
- Reinstall thrust washers, spacers and retention hardware. Apply medium thread locker where specified and torque nuts/bolts to OEM values. If locking tab washers are used, bend tabs into place.

11) Reassemble cover and external components
- Clean mating surfaces; install new gaskets or use sealant as specified. Torque cover bolts in correct sequence to specified torque. Reinstall pulleys, couplings, belts—use appropriate pullers/presses as required.
- Reconnect wiring, hoses, and anything that was removed.

12) Fill fluids and bleed system
- Refill gearbox/hydrostatic unit with specified oil to correct level. Replace hydraulic fluid if system opened/contaminated as per Toyota recommendations. Bleed air from hydraulic circuit per manual.

13) Checks and final adjustments
- Check shaft endplay and bearing preload one final time with dial indicator. Rotate shaft by hand to confirm smooth rotation and no binding.
- Start engine, run at low idle and check for abnormal noises, leaks, or vibration. Cycle drive and test machine under light load. Recheck fluid levels after initial run.
- After short test run, re‑torque critical fasteners if manual requires.

How the specialty tools are used (short)
- Bearing puller / slide hammer: attach jaws to bearing outer race or to adapter; use even pull to extract bearing. Use only when press unavailable.
- Hydraulic/bench press: place shaft or housing on press supports; use correct diameter driver to press on the designated race; press slowly and evenly to avoid cocking.
- Induction/oven heating: heat bearing evenly to expand inner diameter for slip‑fit. Do not overheat; avoid direct flame.
- Seal driver: seat seals squarely without distorting lip. Use a driver matching seal OD.
- Dial indicator: measure radial runout and axial play. Mount indicator securely on housing and rotate shaft slowly to read.
- Snap‑ring pliers: compress/expand rings to remove/install without deforming.

Common pitfalls & how to avoid them
- Hitting bearing races or rollers with hammer: always press or use a proper driver. Avoid impact on the inner structure.
- Pressing on the wrong race: causes bearing damage. Know which race to press on for shaft vs housing removal/installation.
- Reusing seals, gaskets, circlips or bearings: replace these items—old seals commonly leak after disassembly.
- Contaminating new bearing during install: keep parts clean, use lint‑free rags, avoid touching bearing surfaces with dirty hands.
- Incorrect preload / endplay: leads to premature bearing failure. Shim or torque to OEM spec and check with dial indicator.
- Damaging seal lips on reassembly: protect seal by sliding shaft in squarely and using a sleeve if necessary.
- Not relieving hydraulic pressure: risk of sudden movement and injury. Follow bleed procedures.
- Incorrect torque or missed lock tabs: leads to loosening under load. Use torque wrench and secure locking features.

Parts replacement list (minimum)
- OEM input shaft bearing(s) — exact part number from Toyota SGK6/SDK6/SDK8 parts manual.
- Input shaft oil seal(s).
- Housing gasket or cover gasket; sealant if specified.
- Snap rings / circlips (replace if deformed).
- Thrust washers / shims if worn or if required to set preload.
- Fluid: gearbox/hydrostatic oil per Toyota spec.

Final notes
- Always follow Toyota workshop manual for model‑specific disassembly sequence, torque figures, bearing part numbers, and preload/endplay specifications. If any shaft or housing is scored beyond service limits, replace rather than attempt repair.
- After repair, monitor the machine closely for first 8–10 operating hours for leaks, abnormal noise, or excessive temperature.

No extra questions.
rteeqp73
