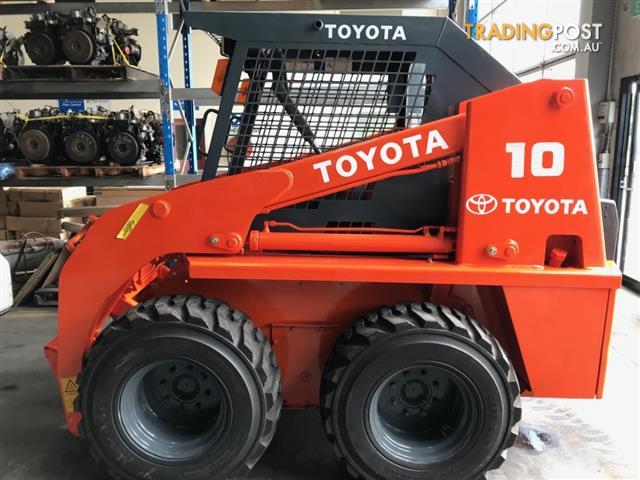

A skid loader, skid-steer loader or skidsteer is a small, rigid-frame, engine-powered machine with lift arms used to attach a wide variety of labor-saving tools or attachments. Skid-steer loaders are typically four-wheel vehicles with the wheels mechanically locked in synchronization on each side, and where the left-side drive wheels can be driven independently of the right-side drive wheels. The wheels typically have no separate steering mechanism and hold a fixed straight alignment on the body of the machine. Turning is accomplished by differential steering, in which the left and right wheel pairs are operated at different speeds, and the machine turns by skidding or dragging its fixed-orientation wheels across the ground. The extremely rigid frame and strong wheel bearings prevent the torsional forces caused by this dragging motion from damaging the machine. As with tracked vehicles, the high ground friction produced by skid steers can rip up soft or fragile road surfaces. They can be converted to low ground friction by using specially designed wheels such as the Mecanum wheel. Skid-steer loaders are capable of zero-radius, "pirouette" turning, which makes them extremely maneuverable and valuable for applications that require a compact, agile loader. Skid-steer loaders are sometimes equipped with tracks instead of the wheels, and such a vehicle is known as a multi-terrain loader. Unlike in a conventional front loader, the lift arms in these machines are alongside the driver with the pivot points behind the driver's shoulders. Because of the operator's proximity to moving booms, early skid loaders were not as safe as conventional front loaders, particularly during entry and exit of the operator. Modern skid loaders have fully enclosed cabs and other features to protect the operator. Like other front loaders, it can push material from one location to another, carry material in its bucket or load material into a truck or trailer. The first three-wheeled, front-end loader was invented by brothers Cyril and Louis Keller in Rothsay, Minnesota, in 1957. The Kellers built the loader to help a farmer, Eddie Velo, mechanize the process of cleaning turkey manure from his barn. The light and compact machine, with its rear caster wheel, was able to turn around within its own length, while performing the same tasks as a conventional front-end loader. The Melroe brothers, of Melroe Manufacturing Company in Gwinner, North Dakota, purchased the rights to the Keller loader in 1958 and hired the Kellers to continue refining their invention. As a result of this partnership, the M-200 Melroe self-propelled loader was introduced at the end of 1958. It featured two independent front-drive wheels and a rear caster wheel, a 12.9 hp (9.6 kW) engine and a 750-pound (340 kg) lift capacity. Two years later they replaced the caster wheel with a rear axle and introduced the M-400, the first four-wheel, true skid-steer loader. The M-440 was powered by a 15.5 hp (11.6 kW) engine and had an 1,100-pound (500 kg) rated operating capacity. Skid-steer development continued into the mid-1960s with the M600 loader. The conventional bucket of many skid loaders can be replaced with a variety of specialized buckets or attachments, many powered by the loader's hydraulic system. These include backhoe, hydraulic breaker, pallet forks, angle broom, sweeper, auger, mower, snow blower, stump grinder, tree spade, trencher, dumping hopper, pavement miller, ripper, tillers, grapple, tilt, roller, snow blade, wheel saw, cement mixer, and wood chipper machine. Some models of skid steer now also have an automatic attachment changer mechanism. This allows a driver to change between a variety of terrain handling, shaping, and leveling tools without having to leave the machine, by using a hydraulic control mechanism to latch onto the attachments. Hydraulic supply lines to powered attachments may be routed so that the couplings are located near the cab, and the driver does not need to leave the machine to connect or disconnect those supply lines. The original skid-steer loader arms were designed using a hinge at the rear of the machine to pivot the loader arm up into the air in an arc that swings up over the top of the operator. This design tends to limit the usable height to how long the loader arm is and the height of that pivot point. In the raised position the front of the loader arm moves towards the rear of the machine, requiring the operator to move extremely close to or press up against the side of a tall container or other transport vehicle to get the bucket close enough to dump accurately. At the highest arm positions the bucket may overflow the rear of the bucket and spill directly onto the top of the machine's cab. An extended reach design uses multiple hinges and parallel lifting bars on the loader arm, with the main pivot points towards the center or front of the machine. This allows the loader arm to have much greater operating height while retaining a compact design, and allows the vertical movement to be less of an arc and more straight-up vertical, to keep the bucket forward of the operator's cab, allowing safe dumping into tall containers or vehicles. A skid-steer loader can sometimes be used in place of a large excavator by digging a hole from the inside. The skid loader first digs a ramp leading to the edge of the desired excavation. It then uses the ramp to carry material out of the hole. The skid loader reshapes the ramp making it steeper and longer as the excavation deepens. This method is particularly useful for digging under a structure where overhead clearance does not allow for the boom of a large excavator, such as digging a basement under an existing house. Several companies make backhoe attachments for skid-steers. These are more effective for digging in a small area than the method above and can work in the same environments. Other applications may consist of transporting raw material around a job site, or assisting in the rough grading process.

Tools & consumables (minimum)
- Socket set (metric), deep sockets, 3/8" & 1/2" drive
- Breaker bar (24–36") and ratchet
- Torque wrench (capable of listed torque range; 10–250 N·m)
- Impact wrench (air or 1/2" electric) — use only to break loose
- Hydraulic bottle jack or shop floor jack and heavy-duty jack stands / axle stands rated for loader weight
- Engine hoist or lift straps (if bar removal requires supporting cab/axles)
- Pry bars, large flat screwdriver
- Cold chisel / drift punch and hammer
- Penetrating oil (PB Blaster / Kroil)
- Wire brush and grinder (to clean rust/corrosion)
- Dead-blow hammer
- Bench vise or hydraulic press (for bushing removal/install)
- Punches, alignment tool (long bolt), and safety glasses, gloves
- Grease gun and general-purpose chassis grease
- Anti-seize compound and medium strength threadlocker (e.g., blue Loctite)
- New replacement parts: anti-roll/sway bar (OEM or aftermarket for Toyota SDK10), bushings (rubber/urethane), bushing brackets and bolts (if corroded), sway bar end links (ball joint-type if used), washers, nuts, cotter pins
- Shop towels, drip pan

Safety & preparatory precautions
- Park on level solid ground; set parking brake; chock wheels. Lower bucket/attachments to the ground.
- Stop engine and disconnect negative battery terminal if working near electrical components or to prevent accidental start.
- Relieve hydraulic systems per OEM instructions where necessary (raise/lower arms to neutral position).
- Never work under the machine supported only by a jack. Use rated jack stands under the frame/axle/factory support points.
- Wear eye protection and gloves. Keep bystanders clear.
- Have a fire extinguisher nearby when using heat.

Notes before starting
- Obtain and follow the OEM workshop manual for the SDK10 for exact torque specs and any model-specific steps. If you don’t have the manual, tag original hardware locations and take photos.
- Inspect all mounting hardware and replace any bolts/studs with visible stretch, corrosion, or damage.
- Typical anti-roll work is heavy and may require two people to maneuver the bar.

Step-by-step replacement procedure
1) Preparation & access
- Park, chock wheels, lower attachments. Disconnect battery negative.
- Clean area around sway bar mounts and linkages with wire brush and penetrating oil. Let soak 10–15 minutes.

2) Support the loader
- Using a hydraulic jack, raise the frame slightly to take load off the anti-roll bar. Place jack stands under rated frame lift points. Make sure machine is stable.
- If the bar ties to an axle or oscillating frame, support the axle/boom with jack stands so removal doesn’t change ride height and stress other linkages.

3) Remove associated parts for access (if necessary)
- Remove any splash shields, panels, or components that block access to the anti-roll bar and link ends.
- If the bar attaches to the bucket lift or cab, slightly lower/raise those systems to get clearance per OEM guidance — always support with stands.

4) Remove end-links
- Spray nuts/bolts with penetrating oil thoroughly. Use a breaker bar or impact to break loose nuts on the end-links.
- Support the end-link with a wrench while removing nut to avoid spinning the inner stud. Remove nut(s) and separate link from sway bar and from the linkage/axle bracket.
- If link studs are seized, use a punch/drift or apply heat to the nut (cautiously) and reapply penetrating oil. Replace end-links if ball joints show play.

5) Remove bushing bracket caps
- Remove mounting bolts that clamp the bushing brackets to the frame. Use breaker bar if seized. Keep bracket halves and hardware together and note orientation.
- Remove top bracket halves and slide bushing halves away. If bracket bolts are corroded, cut or grind heads off and replace hardware.

6) Remove the anti-roll bar
- With links and brackets free, maneuver the bar out of its rear supports or through access opening. Bar is heavy—get help.
- If bar is trapped by frame or swing components, support adjacent structures and use a pry bar to clear one side slowly. Avoid prying against bushings or brackets.

7) Inspect surrounding components
- Inspect mount faces, bracket seating surfaces, link mounting points, and adjacent bushings for wear or damage.
- Replace any worn link pins, brackets, or frame threaded inserts as needed.

8) Prepare new parts for installation
- If using new bushings, grease the bushing interior lightly with chassis grease as recommended by manufacturer (some urethane bushings are dry-fit; follow part instructions).
- Fit new bushings onto the bar in the same orientation as the originals. If heated bushing fitment is needed, use a press or gentle heat; do not overheat rubber bushings.

9) Install the new anti-roll bar
- Position the bar into place; use an alignment bolt or long bolt to align bracket holes if needed.
- Fit lower halves of bushing brackets (if separate) and loosely fit bolts. Do not fully torque until vehicle is at normal ride height.
- Reconnect end-links to the sway bar and axle/linkage. Use new cotter pins if original used.

10) Final positioning & torquing
- Lower the loader to its normal ride height (remove jack stands carefully and let suspension take load).
- With machine at ride height, torque all bushing bracket bolts and nuts to OEM torque specs. If OEM specs are unavailable, use conservative equivalent torque and then check quickly for movement. (Important: final torque must be per Toyota SDK10 manual.)
- Torque end-link nuts to spec. Apply threadlocker on bolts if specified.
- Reinstall any removed shields/panels.

11) Post-installation checks
- Grease any grease fittings on links/bushings if present.
- Cycle the loader arms and suspension through full range to check for binding, clearance, or contact between bar and frame/hoses.
- Re-torque all fasteners after initial run-in (50–100 hours of operation).
- Test drive/operate loader at low speed checking for noise, clunks, or handling issues. Re-check fasteners after first day of service.

How each tool is used (short)
- Breaker bar: apply steady long leverage to break seized bolts free without shock-loading.
- Impact wrench: quick removal of stubborn fasteners; do not use to set final torque.
- Torque wrench: set final torque values exactly per manual.
- Penetrating oil + heat + hammer/drift: free seized studs or remove rusted bracket bolts.
- Press/bench vise: press out old bushings and press in new polyurethane or metal-lined bushings squarely.
- Pry bar/alignment punch: align holes when reinstalling bar and brackets.
- Jack & stands: safely support machine while work is done; never rely on the jack alone.

Common pitfalls & how to avoid them
- Working with the machine unsupported: always use jack stands at rated points.
- Re-torquing while machine is off the ride height: torque bushings with vehicle at normal ride height to avoid pre-loading or binding.
- Reusing damaged bushings or links: replace all worn bushings and end-links; they commonly fail together.
- Overheating rubber bushings: press-fit or use moderate heat only; excessive heat damages rubber.
- Using impact for final torque: always finish with a torque wrench to specified value.
- Not replacing corroded hardware: bolts and studs exposed to environment often stretch or corrode—replace with grade-equivalent hardware.
- Incorrect orientation of bar/bushings: mark orientation before removal and match it on install.
- Skipping post-install checks: failure to cycle and re-torque leads to premature failure or noise.

Replacement parts typically required
- Anti-roll (sway) bar (OEM part or equivalent)
- Bushings (rubber or polyurethane per OEM spec)
- Bushing brackets and mounting bolts (if corroded)
- End-links (recommended to replace in pairs)
- Nuts, washers, cotter pins, threadlocker/anti-seize
- Grease and any specified seals

Final notes
- Follow Toyota SDK10 workshop manual torque figures and specific removal/installation illustrations for exact nut/bolt sizes and sequences.
- If any structural damage is visible at mounting points or axle brackets, repair per OEM procedures before reassembly.
- If uncertain at any point, have the repair inspected by a qualified heavy equipment technician.

Done.
rteeqp73

Safety first: wear eye/hand protection, support machine securely, relieve stored energy, drain oil, and follow lockout/tagout. Consult the SDK10 service manual for model-specific specs (torques, clearances, bolt replacement instructions).

1) Theory — what rod bearings do and why they fail
- Function: rod bearings form the rotating journal interface between each connecting rod and the crankshaft. They support the crank under load and create a hydrodynamic oil film that separates metal surfaces.
- Hydrodynamic lubrication: at running speed the bearing geometry drags oil into a wedge that supports load. That film thickness depends on bearing clearance, oil viscosity, pressure, RPM and load.
- Failure modes: oil starvation, contamination (abrasives, metal particles), excessive load or detonation, fatigue, misassembly, or stretched/failed rod bolts. Failure causes clearance increase, metal-to-metal contact, scoring, low oil pressure and piston/rod knock.
- Symptoms fixed by replacement: restored correct clearance and bearing surface, reestablished oil film and oil pressure, eliminated metal contact and knocking (provided crank journals and rods are serviceable).

2) Tools, consumables, and checks
- Tools: torque wrench, breaker bar, micrometer or outside mic, dial bore gauge or telescoping gauge, plastigauge, feeler gauges, engine hoist or lift if engine removal required, crescent, sockets, cleaning brushes.
- Parts/consumables: correct-size rod bearings (OEM or approved aftermarket), new rod bolts/nuts if specified, engine oil, oil filter, gasket(s), assembly lube.
- Acceptance checks: consult SDK10 manual for required rod bearing clearance and rod-bolt torque. Typical clearance orders of magnitude: ~0.025–0.10 mm (0.001–0.004 in) — confirm manual.

3) Ordered procedure (in logical sequence)
1. Preparation
- Record cylinder/rod identification. Label rods and caps so each cap returns to its original rod in the same orientation.
- Drain oil and remove oil pan and any obstructing components (exhaust, crossmembers, oil pickup if necessary).
- Clean work area around crank to avoid contamination.

2. Initial inspection without removing bearings
- Inspect crank journals and bearing surfaces visible for scoring and debris.
- Check oil pump pressure (if possible) — low pressure supports bearing wear diagnosis.

3. Remove rod caps and bearings
- Loosen rod nuts/bolts in a controlled sequence, remove caps, collect caps and caps’ bearings together with their matching rod.
- Note bearing orientation, locate oil holes/relief grooves relative to oil passages.

4. Inspect components
- Remove bearing shells and inspect for discoloration, scoring, metal transfer, or embossing.
- Measure bearing shell thickness (if spec avail) and compare to new shell thickness to calculate clearance.
- Measure crankshaft journal diameter with micrometer at multiple positions (axial and rotational) to detect taper or ovality.
- Measure big-end bore for ovality with bore gauge.
- If journals are scored beyond allowable limits or out-of-round, the crank must be ground undersize or replaced; bearings cannot fix a damaged journal.

5. Decide replacement vs. machine work
- If journals within spec: new bearings can be fitted.
- If journals out-of-spec: machine work (polish, grind, undersize bearings) or crank replacement required.

6. Fit new bearings
- Clean rod and cap bores; install new bearing shells ensuring oil holes and reliefs align and locating tangs seated.
- Lightly oil or use OEM assembly lube on bearing surface per manual (do not contaminate with dirt).

7. Check clearance (recommended: plastigauge)
- Place a narrow strip of plastigauge across journal on the new bearing half in the rod.
- Reinstall cap, tighten to specified torque (do not rotate crank) — use torque specified for checking clearance (some manuals specify torque for plastigauge check).
- Remove cap and measure plastigauge width against chart to determine bearing clearance.
- If clearance within manual limits, proceed. If too tight, incorrect bearing thickness or improper mating — recheck parts. If too loose, remeasure journal and rod, consider undersize bearings or crank machining.

8. Final assembly
- Apply assembly lube to new bearing surfaces.
- Reinstall caps, torque rod bolts/nuts in the specified sequence and to specified torque or stretch procedure. Replace stretch-type bolts as required by the manual.
- Ensure correct orientation and that caps sit flush.

9. Reassemble oiling system
- Clean oil pickup and pan, reinstall oil pump (if removed), oil pickup, and pan with new gaskets.
- Refill with clean engine oil and new filter.

10. Initial start and test
- Prime oiling system if possible or crank without starting to build oil pressure.
- Start engine, monitor oil pressure and listen for knocking. Check for leaks.
- Run at moderate temp and load for break-in period. Re-torque rod bolts if manual calls for it after initial run (some require re-torque after warm-up).

4) How this repair fixes the common faults (concise)
- Replacing worn bearings restores designed journal-to-bearing clearance so the hydrodynamic oil wedge forms correctly, preventing metal-to-metal contact and removing knock.
- New bearing surfaces are smooth and sized to re-establish oil film thickness and flow; this increases oil pressure and reduces heat and wear.
- If journalling surfaces were damaged and are machined or replaced, the repair re-establishes true journal geometry so bearing load is distributed correctly rather than concentrated on high spots.
- Replacing stretched rod bolts restores correct clamp load on caps; correct clamp keeps bearing halves aligned, preserving clearance and preventing cap rotation or fretting.

5) Important checkpoints and causes to avoid repeat failure
- Always check oil pump condition and cleanliness of oil passages; bearings fail again if oil starvation or blockage persists.
- Use correct oil viscosity and change intervals to maintain film thickness.
- Replace rod bolts when specified; reused stretched bolts cause loosening and bearing failure.
- Remove contaminants: metal debris from one damaged bearing can seed others—thorough cleaning is essential.
- Verify crank and rod geometry — bearings are a consumable but only part of the equation; a damaged crank requires machining or replacement.

No further questions.
rteeqp73

Summary (what and why)
- The stabilizer bar (aka sway bar or anti-roll bar) on a skid steer links the left and right sides of the suspension so that the machine resists tipping/rolling when one side moves relative to the other. Think of it like a stiff steel coat‑hanger that resists twisting: when one wheel/side goes up, the bar twists and pushes the other side down to keep the frame level.
- You repair it when you hear clunks, feel excessive roll/instability, see uneven tire/wheel movement, find broken links/brackets, or see worn bushings. Worn bushings or broken links let the bar move freely and lose its stabilizing function, and broken mounts can be dangerous.

Safety first (do not skip)
- Park on level ground, lower all attachments (bucket down), engage parking brake, stop engine, remove key.
- Relieve hydraulic pressure per the OEM procedure. Lockout/tagout.
- Chock wheels/tracks and use heavy-duty jack(s) and rated jack stands or factory support stands under the frame — skid steers are heavy; never rely on a hydraulic jack alone.
- Support the axle/frame where you remove components so the machine can’t fall or shift.
- Wear gloves, eye protection, and steel-toe boots. Use penetrating oil and take precautions if heat/cutting/welding is needed.
- If you’re not confident working under heavy equipment or fabricating mounts, get a qualified machinist/welder or dealer.

Components — what each part is and does
- Stabilizer bar (sway bar, torsion bar): a solid or hollow steel bar that passes across the machine and resists twisting. It connects left and right suspension parts and stores torsional energy when one side moves.
- Mounting brackets (bush brackets / clamp plates): metal clamps bolted to the frame that hold the bushings (and the bar) in place.
- Bushings (rubber or polyurethane, split style): cushions between bar and bracket; they allow controlled rotation while damping noise and vibration. They wear/deteriorate from age, heat, dirt, oil.
- End links (linkage rods with joints): connect the ends of the stabilizer bar to control arms, axles, or chassis points. They may be ball-joint style, rod-end, or clevis with pin.
- Washers, spacers, sleeves: ensure correct lateral position of the bar and protect bushings from metal-to-metal contact.
- Bolts/nuts: secure the brackets and links to the frame; usually high-strength hardware.
- Grease fittings (zerk): on some links/bushings to allow lubrication.
- Frame mounting bosses: the part of the frame where brackets bolt on—inspect for cracks/repair if needed.

Why the bar matters — simple theory
- The bar resists roll by twisting: when left and right suspension move differently, the bar twists and exerts an opposing torque. The amount of resistance depends on bar diameter, length, material and whether the links are attached to leverage points.
- Worn bushings or loose brackets allow uncontrolled movement (play), causing clunks and reducing roll resistance.
- Broken links/bushings transfer loads to other components and can cause sudden failure under load, risking loss of stability.

Common failure modes
- Worn or split bushings → excessive play and noise.
- Broken or bent end links → loss of connection to suspension.
- Corroded or cracked brackets/frame mounts → bracket failure.
- Seized bolts, rounded heads → removal difficulties.
- Bar fatigue cracks (rare but dangerous) from repeated stress or corrosion.

Tools and materials (typical)
- Socket set, wrenches, breaker bar, torque wrench
- Penetrating oil (PB Blaster / Kroil)
- Hammer, pry bar, punch
- Heavy-duty floor jack and rated jack stands or factory support stands
- Needle/pick for bushing removal; bench vise or C-clamp for pressing bushings
- Wire brush, rag, solvent
- Replacement bushings (OEM or polyurethane), brackets or whole bar/end links as needed
- New bolts/nuts (grade matched), washers, anti-seize or lock‑tight (use OEM guidance)
- Grease and grease gun (if fittings)
- File or die grinder (for light cleanup) — use with caution
- Safety gear: gloves, eye protection, jack stands rated for load

Step-by-step repair procedure (beginner-friendly)
Note: follow the SDK10 workshop manual for exact procedures and torque specs. Below is the general sequence.

1) Prepare and inspect
- Park, shut down, relieve hydraulics, chock wheels, and support the machine securely on stands.
- Lower the bucket to the ground for stability before you jack it up; if you must lift, support the frame properly.
- Visually inspect the stabilizer bar assembly: look for cracked brackets, missing bolts, torn bushings, loose end links, or a visibly bent bar.

2) Access and documentation
- Clean the area with a rag and wire brush so you can see fasteners.
- Take photos of orientation and component positions — this helps proper reassembly.
- Note whether bushings are split type (most common) and how spacers/sleeves align.

3) Remove end links (first)
- Apply penetrating oil to end link nuts/bolts; let soak.
- Support the bar with a jack or pry bar so it doesn’t drop when you unbolt links.
- Remove nuts/bolts on each end link. If the link has a tapered or ball joint, use a separator or pickle fork gently to avoid damage to other components.
- Remove the links and set aside or replace.

4) Remove bracket clamps and bushings
- Loosen and remove the bracket bolts that clamp the bushing to the frame.
- Carefully lift the stabilizer bar out of the lower half of the bushings (you may need to pry the bar sideways if tight).
- If bushings are split, they’ll come off the bar; if solid, they may need to be cut and peeled off.
- Inspect the bar for cracks, flat spots, or significant corrosion near contact surfaces. Replace the whole bar if damaged.

5) Inspect associated components
- Check bracket mating surfaces for wear or distortion. Check frame boss integrity (cracks/weld failure).
- Inspect end link threads and ball joints; replace any worn joints or hardware. Replace bolts if thread damage or corrosion.
- Check for bent collars or missing spacers.

6) Clean and prepare for installation
- Remove rust and old grease from the bar with a wire brush and solvent. Clean bracket contact areas on the frame.
- If using new bushings, apply a thin film of recommended grease to the inside of the bushing (some polyurethane kits require a dry installation; follow manufacturer instructions).
- Replace any worn sleeves/spacers.

7) Install new bushings and brackets
- Fit the lower bushing halves onto the bar at their original locations (match orientation from photos).
- Position the bar in place on the frame bosses and set upper bushing halves over the bar.
- Fit bracket clamps over the bushings. Start bolts by hand to ensure alignment — do not fully torque yet unless manual directs partial torque sequence.

8) Reinstall end links
- With the bar supported in the correct position, install the end links into their mounts and hand-thread fasteners.
- Ensure spacers/sleeves sit correctly and the link is straight — do not preload joints by forcing link length.
- Tighten links to OEM torque specs. If links have grease fittings, pump grease until fresh grease appears (or per OEM procedure).

9) Torque sequence
- Torque bracket bolts and end link bolts to OEM specifications, in the sequence recommended by the manual (normally snug brackets then torque).
- Do NOT over-torque and crush bushings. If you lack model torque specs, have a dealer or manual consult before final torquing.

10) Final inspection and safety checks
- Re-check that all bolts are tight, no tools left, and grease fittings are serviced.
- Remove supports carefully and lower the machine onto the ground.
- Test by moving lift arms and turning machine slowly to ensure nothing binds.

11) Test drive and re-check
- Start machine and operate slowly through steering cycles and lift cycles. Listen for clunks and feel for abnormal roll.
- After first few hours of use (or 50–100 km equivalent), re-check bolts for tightness (bushings can compress/seat). Re-torque if required.

Troubleshooting tips and what can go wrong
- Seized bolts: use heat (carefully) or an impact wrench; if head rounds, you may need to cut and re-tap or replace stud. If you heat bolt, be mindful of adjacent rubber/plastic/hydraulic parts.
- Bushings won’t fit: some bushings are split and must be opened; polyurethane may be stiffer — use a vice or C-clamp to press them on gently. Never hammer the bar through a bushing; damage can occur.
- Bar is bent or cracked: replace the bar. Repairing by hammering is unreliable for torsion bars.
- Bracket or frame mount cracked: this is a structural repair — requires welding to OEM standards or replacement parts. Do not use a temporary fix.
- Wrong bushing hardness: too-hard bushings increase transmitted shock and noise; too-soft reduces anti-roll effect. Use OEM or matched replacements.

Maintenance tips to extend life
- Grease links with fittings at regular intervals per OEM schedule.
- Inspect bushings and hardware during routine maintenance; replace at first signs of wear.
- Keep the area free of oil/solvents that degrade rubber bushings.
- Use anti-seize on bolts where appropriate and replace hardware when corroded.

When to call a pro
- If the frame mounting boss is cracked or deformed.
- If bolts are seized to the point of damaging surrounding parts or you must heat near hydraulics.
- If fabrication/welding is required.
- If you detect torsional cracks in the bar.

Concise checklist before finishing
- Machine supported safely and hydraulics locked out.
- Old bushings removed, bar inspected and cleaned.
- New bushings, sleeves, brackets, and links installed correctly.
- All fasteners torqued to OEM specs.
- Grease fittings serviced.
- Test-operated and re-checked fasteners after initial use.

This covers the function, components, likely failures, and a clear, beginner-friendly repair flow for a stabilizer/sway bar on a Toyota SDK10-style skid steer. Always cross-check with the Toyota SDK10 workshop manual for model-specific diagrams, part numbers, clearances, and torque specifications.
