The MR is a family of straight-four all-aluminium automobile engines with variable valve timing co-developed by Renault and Nissan. Renault calls it the M engine. Other noteworthy features of this engine family include acoustically equal runner lengths and a tumble control valve for the intake manifold, a "silent" timing chain, mirror finished crankshaft and camshaft journals, and offset cylinder placement in an attempt for increased efficiency.

The MR engine family features 'under stress' manufacture, meaning while the block is being bored, a torque plate puts the block under stress. The block becomes temporarily distorted until the head is torqued onto it, at which point the block is pulled into the correct shape.

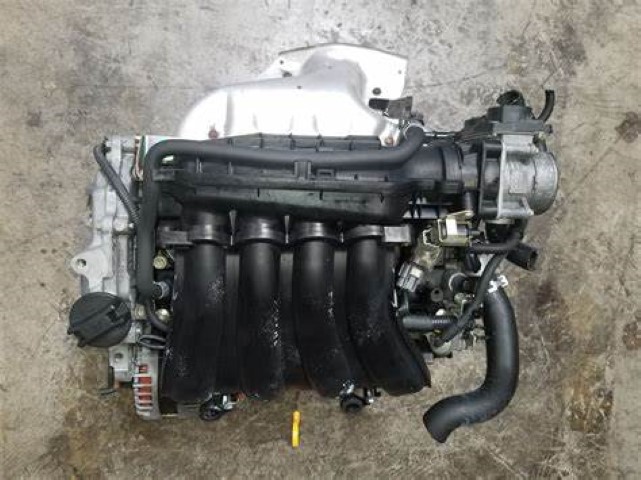

The MR18DE is a 1.8 L (1798 cc) version, bore and stroke is 84 mm × 81.1 mm (3.31 in × 3.19 in). It produces 130 PS (96 kW; 128 hp).

In North America the output is 122 hp (91 kW; 124 PS) at 5500 rpm and 174 N⋅m (128 lb⋅ft) at 4800 rpm.

From July 6, 2006 this engine is also fitted to Nissan Livina Geniss for China version and the Nissan Grand Livina for Indonesia and Malaysia. Output is 126 PS (93 kW; 124 hp) at 5200 rpm and 174 N⋅m (128 lb⋅ft) at 4800 rpm.

For Brazil, this engine is fitted to the Tiida and Livina ranges, with Flex-fuel capability.

Applications:

2004–2012 Nissan Tiida/Versa
2006–2019 Nissan Grand Livina
2006–present Nissan Wingroad
2009-2014 Nissan Cube

Purpose and quick theory (1–2 lines)
- The fuel filter removes particulates and rust from fuel before it reaches the pump and injectors. A clogged filter restricts flow, lowers rail pressure under load, makes the engine run lean, causes hesitation/stumble, poor idle, hard starts and extra fuel‑pump wear.

Symptoms of a clogged/failed fuel filter
- Hard starting, stalling under load/accel, loss of power, poor idle, misfires under heavy load, long crank times, fuel pump whining/overheating, fuel pressure low or fluctuating.

Safety & prep (do these before any work)
1. Relieve fuel pressure and disconnect negative battery terminal. Theory: avoids pressurized fuel spray and accidental ignition when lines are opened.
2. Work in well‑ventilated area, no open flames/sparks, have a fire extinguisher and rags. Use eye protection and nitrile gloves. Theory: gasoline is flammable and a skin/eye irritant.
3. Have replacement filter, new O‑rings/clips, small drain pan, shop rags, proper disconnect tool (quick‑connect), jack/stands if needed. Theory: contaminated or reused seals leak; drain pan captures spill.

Which procedure applies (brief)
- Many MR18DE installations use an in‑tank fuel pump module with a sock (pre‑filter) and no separately serviceable inline filter; some markets or aftermarket installations have an inline fuel filter. If you have a visible inline filter on the frame/engine bay, follow “INLINE” below. If access requires removing the fuel pump or an access panel in the trunk, follow “IN‑TANK” below.

INLINE FILTER REPLACEMENT — ordered steps with theory
1. Relieve pressure, disconnect battery (repeat) and locate filter (usually along frame rail or engine bay). Theory: confirm you have the right component and that lines depressurized.
2. Place drain pan under the filter. Theory: capture fuel that drains when lines are disconnected.
3. Use the correct quick‑disconnect tool or loosen hose clamps. Disconnect inlet and outlet lines. Cap or plug lines and filter openings immediately. Theory: prevents contamination, minimizes fuel loss and air ingress.
4. Note flow direction arrow on old filter; remove old filter and compare to new. Theory: filter media is directional — wrong orientation causes bypass/poor filtration.
5. Install new filter with new clamps/O‑rings. Tighten clamps to snug specification; quick‑connects should click into place. Theory: secure connections prevent leaks and maintain correct pressure.
6. Reconnect battery, turn key to ON (do not start) 2–3 times to prime pump and build pressure; check for leaks. Then start engine and inspect again. Theory: priming seats the pump and verifies system integrity and pressure recovery.
7. Road test under load; if symptoms persist, check fuel pressure with gauge and scan for related codes. Theory: verifies restored flow under actual conditions and confirms whether replacement resolved issue.

IN‑TANK (pump module / sock) — ordered steps with theory
1. Relieve pressure and disconnect battery. Theory: safety as above.
2. Access the top of the fuel tank — either by removing rear seat cushion or trunk access panel, or by safely lowering the tank (depending on vehicle). Support tank if lowering. Theory: the pump lives in the tank; access method varies. Supporting the tank prevents injury and fuel spillage.
3. Clean area around access cover thoroughly before opening. Theory: prevents dirt from falling into tank.
4. Disconnect electrical connector(s) and fuel lines at the module (use quick‑disconnect). Cap lines. Theory: prevents fuel spray and short circuits.
5. Remove retaining ring or bolts and lift out pump/module assembly slowly — some fuel will drain into the module; return it to a clean container or let it drain back to tank. Replace the strainer/pre‑filter (sock) and any seals (O‑ring/gasket). Theory: the sock traps coarse debris and the pump inlet filter prevents pump damage; seals prevent leaks and vapor loss.
6. If replacing entire pump, transfer new sock or install new pump module as per instructions. Ensure pump orientation and float arm position are correct. Theory: correct installation ensures accurate fuel pickup and gauge operation.
7. Reinstall module, torque/seat retaining ring evenly, reconnect lines and electrical. Reattach access cover/seat. Theory: proper seating prevents leaks and pressure/vapor loss.
8. Reconnect battery, cycle key to prime, check for leaks, start and test under load. Clear codes if present. Theory: ensure system pressurizes and confirm symptom resolution.

Why each main action matters (summary)
- Relieving pressure & disconnecting battery: prevents spray and fire.
- Cleaning before opening & capping lines: prevents contamination and air intrusion.
- Replacing filter/sock/media: removes accumulated debris that caused restriction and/or contamination reaching the pump/injectors.
- Replacing seals and clamps: prevents leaks and maintains correct rail pressure and vapor control.
- Priming and leak check: verifies integrity and that fuel pressure can be restored without air pockets.

How the repair fixes the fault (theory, concise)
- A clogged filter restricts fuel flow and causes a drop in dynamic fuel pressure and flow under load. Low flow → lean mixture or injector starvation → hesitation, misfire, stalling, poor power. Replacing the filter restores cross‑sectional area for fuel to pass, returns required flow and rail pressure, reduces voltage/current draw on the pump (less whining/overheating), and prevents contaminants from reaching injectors and pump internals. Replacing the in‑tank sock prevents abrasive debris from prematurely wearing the pump and turbine, improving pump life and consistent delivery.

Post‑service checks (short)
- Verify no fuel leaks, check fuel pressure with a gauge at the rail under idle and wide‑open throttle, road test, and scan/clear codes. If pressure still low, suspect pump failure, clogged rails/lines, or regulator issue.

That’s the ordered procedure and theory; follow the branch (INLINE vs IN‑TANK) that matches your MR18DE installation.
