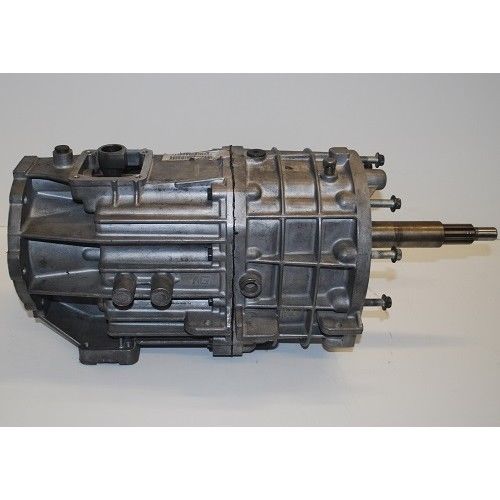

The NV3550 is a medium-duty, 5-speed, constant mesh, fully synchronized manual transmission. The transmission is available in two and four-wheel drive configurations.
The gear case consists of two aluminum housings and a removable clutch housing. The clutch housing is not an integral part of the transmission.
Roller bearings and needle bearings are used in the transmission. The transmission gears all rotate on caged type needle bearings. Roller bearings are used to support the input, output and counter shafts.
The transmission has a single shaft shift mecha­nism with three shift forks all mounted on the shaft. The shaft is supported in the front and rear housings by bushings and one linear ball bearing. Internal shift components consist of the forks, shaft, shift lever socket and detent components. The drain plug is located in the bottom of the transmission and fill plug is on the left side. The driver selects a particular gear by moving the shift lever to the desired gear position. This move­ment moves the internal transmission shift compo­nents to begin the shift sequence. As the shift lever moves the selected shift rail, the shift fork attached to that rail begins to move. The fork is positioned in a groove in the outer circumference of the synchro­nizer sleeve. As the shift fork moves the synchronizer sleeve, the synchronizer begins to speed-up or slow down the selected gear (depending on whether we are up-shifting or down-shifting). The synchronizer does this by having the synchronizer hub splined to the mainshaft, or the countershaft in some cases, and moving the blocker ring into contact with the gear'sfriction cone. As the blocker ring and friction cone come together, the gear speed is brought up or down to the speed of the synchronizer.

Two possible meanings of “TPS on an NV3550” — keep both in mind. Below are ordered, theory-focused procedures (testing and replacement) and short explanations of how the repair fixes the fault. No fluff.

If you mean the Throttle Position Sensor (engine TPS)
- What it is (theory)
- A three‑terminal potentiometer on the throttle shaft that turns mechanical throttle angle into a voltage signal for the ECU.
- Typical behavior: reference 5 V supply, ground, and a wiper output that moves smoothly from about 0.5 V at closed throttle to ~4.0–4.5 V at wide‑open throttle (WOT). ECU uses the slope and absolute voltage to control fuel, idle, and torque‑management functions.
- Failure modes: dirty/worn wiper (intermittent jumps), open circuit, poor ground, or wiring damage → incorrect/erratic voltage, wrong fueling/idle, stalling, driveability faults, limp‑in, or stored P0120–P0123 codes.

- Tools
- Digital multimeter, backprobing pins or break‑out harness, small screwdriver, basic hand tools, replacement TPS if needed.

- In‑order test procedure (theory + steps)
1. Safety: key OFF, engine cool. Locate TPS on throttle body.
2. Visual/wiring check: inspect connector, pins, and harness for corrosion, broken wires, or pin push‑back. Repair obvious wiring issues before sensor swap.
3. Establish reference/ground: with key ON (engine off), backprobe the connector:
- Pin A = 5 V reference (should be stable ≈4.8–5.0 V).
- Pin B = ground (near 0 V).
- Pin C = wiper (output voltage).
If no 5 V or ground, the problem may be ECU/power/ground, not the TPS.
4. Sweep test: slowly open throttle by hand while watching wiper voltage. Expect a smooth, linear ramp from ~0.5 V → ~4–4.5 V with no jumps or dead spots. Repeat both directions.
5. Static checks: confirm closed‑throttle voltage at specified idle stop (often ≈0.5–1.0 V). If voltage out of range or jumpy → suspect sensor.
6. Continuity/ohms (optional): measure resistance across end terminals to confirm potentiometer end‑to‑end resistance is finite and stable; wiggle shaft to detect intermittent contacts.
7. Scan tool check: observe live TPS data — look for steady, proportional percentage and no sudden jumps when opening/closing throttle.

- In‑order replacement procedure (theory + steps)
1. Note initial position: mark throttle plate/throttle body relative position so idle stop/geometry remains after install.
2. Disconnect negative battery terminal (safer if ECU learns).
3. Unplug TPS connector, remove mounting screws, and extract sensor.
4. Install new TPS in the same orientation. Do not force; align to throttle shaft splines. Tighten mounting screws snug — manufacturer torque if available.
5. Reconnect connector, reconnect battery.
6. Relearn/adjust: many systems require no mechanical adjustment; some require setting closed‑throttle voltage with scan tool or small rotation to hit the specified closed‑throttle voltage. With key ON, backprobe wiper and adjust until closed voltage is in spec, then tighten screws.
7. Verify by sweeping throttle and by scanning for codes and live values. Test drive to confirm symptoms gone.

- How this repair fixes the fault (theory)
- A faulty TPS gives incorrect or intermittent wiper voltage; ECU reacts with wrong fueling/idle control. Replacing or properly aligning the TPS restores a correct, stable voltage signal so the ECU can calculate throttle position accurately. If the original problem was wiring/power/ground, repairing those restores proper reference and grounding for accurate sensor output. Correct signal removes erroneous inputs that cause poor idle, surging, stalling, or limp modes.

If you mean the NV3550 transmission neutral/gear position switch (transmission "TPS" / neutral switch)
- What it is (theory)
- Many NV3550 installations use a simple mechanical/electrical switch that indicates neutral (or a specific gear) to the vehicle’s electronics (for cruise cutoff, PTO, neutral start, ECU enrichment). It is generally a contact that is either open or closed depending on gear position.
- Failure modes: stuck, broken actuator, corroded contacts, or wiring faults → incorrect neutral indication, poor idle enrich, no start in neutral/park interlock, or incorrect cruise/capture behavior.

- Tools
- Multimeter, basic hand tools, gasket/washer/O‑ring if required, replacement switch.

- In‑order test procedure (theory + steps)
1. Locate the switch on the NV3550 housing (driver side/top area). Identify connector/pins.
2. Visual inspection: look for fluid leaks, broken lever, damaged connector; repair as needed.
3. With the transmission in neutral, backprobe switch pins and measure continuity or voltage depending on switch type:
- For simple switch: continuity should be present (or absent) in neutral and change when moved to a gear. Consult vehicle wiring to know which state indicates neutral.
- For powered switch: one pin is supply (often 12 V when ignition on), the other is output that goes to ECU; verify 12 V supply and switching to ground or 12 V as expected.
4. Actuate the shifter/selector while watching the meter; check for consistent state changes without intermittent behavior.
5. If wiring/power/ground are correct but switch does not change state reliably → replace the switch.

- In‑order replacement procedure (theory + steps)
1. Safety: park on level ground, set parking brake. Drain or block any area to prevent fluid loss; have a drain pan ready — some residual fluid may leak when switch removed.
2. Disconnect electrical connector.
3. Remove switch mounting (usually a threaded switch or a small bolt); capture any sealing washer or O‑ring for replacement.
4. Install new switch with new seal, tighten to spec, reconnect electrical connector.
5. Check for leaks and verify switching behavior with multimeter while moving shifter into neutral/gear positions.
6. Clear any related codes and test drive.

- How this repair fixes the fault (theory)
- Replacing a bad neutral/gear switch restores the correct discrete signal to the ECU/cruise/clutch/starting circuits. If the control unit was receiving false neutral information (e.g., saying “not neutral” when it is), it may inhibit starting, idle enrichment, or other behaviours. New switch re‑establishes reliable contact and correct logic state so functions relying on neutral/gear info behave normally.

Short checklist of common diagnostics to avoid unnecessary replacement
- Always verify power and ground to the sensor before condemning the sensor.
- Backprobe and sweep the control input while observing sensor output — look for smooth, monotonic response (TPS) or clean state changes (neutral switch).
- Check wiring harness for chafing, corrosion at the connector, loose pins.
- Use a scan tool to compare sensor values to expected behavior under throttle/shifter movement.

That’s the ordered, theory‑based how and why.
rteeqp73

No response from ChatGPT API: {
"error": {
"message": "You exceeded your current quota, please check your plan and billing details. For more information on this error, read the docs: https://platform.openai.com/docs/guides/error-codes/api-errors.",
"type": "insufficient_quota",
"param": null,
"code": "insufficient_quota"
}
}

rteeqp73

You asked for a clear, beginner-friendly, detailed guide to replacing the engine/transmission mount used with the NV3550 gearbox in a Jeep Wrangler. Below I explain what each part is, why the repair is needed, what can go wrong, and a safe step‑by‑step procedure with helpful tips and analogies. Read the whole thing before starting, and follow the safety advice exactly.

Quick overview and theory (plain language)
- Purpose of the mount: The mount is a metal-and-rubber (or poly) block that sits between the transmission tailhousing (or engine bracket) and a steel crossmember. It does three things:
1. Holds the engine/transmission in the correct position relative to the frame.
2. Absorbs and damps engine/transmission vibration and torque reaction so you don’t feel everything in the cab.
3. Keeps driveline alignment so the transmission output shaft, transfer case and driveshafts stay lined up.
- Analogy: Think of the engine/transmission as a heavy lamp on a springy coaster. The mount is the coaster. If the coaster is good, the lamp rocks smoothly and stays where it should. If the coaster is worn or torn, the lamp slams around, shakes the table, and might knock other things out of place.
- Why replacement is needed: Rubber breaks down (cracks, separates from metal) or the metal bracket can corrode or crack. When mounts fail you see excessive movement, clunks when shifting/accelerating, vibration in the cab, driveline misalignment, and sometimes damage to linkage or transmission tailhousing.
- What can go wrong if you ignore it: accelerated wear of u-joints and splines, clutch or shifter linkage problems, exhaust or wiring chafing, damage to the tailhousing or crossmember, and safety risk if the engine/transmission shifts unexpectedly.

Components you’ll see and what they do
- Transmission tailhousing/extension: the back part of the gearbox where the mount bolts to. The mount attaches here to support the tail of the transmission.
- Mount (the part you replace): typically a stamped metal bracket bonded to a molded rubber isolator (or polyurethane insert). Some designs are two-piece with a threaded stud or through-bolt.
- Crossmember: a welded steel beam under the vehicle that provides the mounting point to the frame/chassis.
- Mount bolts: fasteners that clamp the mount to the tailhousing and crossmember (often heavy bolts with washers).
- Support hardware: plates, spacers, washers specific to your mount kit.
- Tools and equipment (minimum): floor jack, jack stands, wheel chocks, engine support bar or tall shop jack + wood block (to support engine safely), transmission jack or second floor jack (to support the tail of the transmission), socket set, breaker bar, extensions, combination wrenches, penetrating oil, pry bar, torque wrench, safety glasses, gloves.
- Replacement parts: exact OEM mount or quality aftermarket equivalent (confirm fit for NV3550 Jeep configuration). If using polyurethane, expect stiffer ride and more vibration.

Safety first (non-negotiable)
- Work on level ground. Chock wheels and set the parking brake.
- Disconnect the negative battery terminal if you will be under wiring/exhaust or working near sensors.
- NEVER rely on a hydraulic jack alone—always use jack stands rated for the load.
- Support either the engine or transmission so nothing drops when you remove the mount. An engine support bar is safest from above; a floor jack under the oil pan is possible but riskier (use a wide wood block and very careful positioning).
- Wear eye protection and gloves, and keep bystanders clear.

Preparation
- Gather tools and the new mount. Check the new mount visually so you know orientation and hardware.
- Park, chock, set parking brake, lift vehicle and support on jack stands. Confirm stability before crawling under.
- Remove any skid plates, heat shields, or components blocking access to the mount area.
- If the transfer case or driveshaft interferes with working space remove or lower them only if necessary. Often not required for the NV3550 mount; you typically work under the center or passenger side area.

Step-by-step replacement (beginner-friendly)
1. Support the engine/transmission
- Use an engine support bar across the engine bay to hold the engine up. If you don’t have one, use a floor jack with a wide block under the oil pan or use a jack under the transmission tailhousing with a transmission jack or second floor jack and wood block. The idea: take the weight off the mount before you unbolt it.
- Confirm the weight is taken so the mount is not supporting anything.

2. Support the transmission tailhousing
- Place a jack (transmission jack preferred) under the tailhousing extension with a wood block to spread load. Raise until it just contacts and supports the tail; don’t try to lift the vehicle.
- This prevents the tail from dropping when you remove the mount bolts.

3. Clean and apply penetrant
- Spray penetrating oil on all mount bolts and let sit 10–15 minutes. This reduces the chance of rounding or breaking bolts.

4. Remove fasteners to crossmember
- Start with the bolts that attach the mount bracket to the crossmember. Use the correct socket and breaker bar. Keep track of washers and spacers.
- If bolts are severely corroded, a little heat (propane torch) can help, but be careful—heat near fuel/exhaust is hazardous.

5. Remove fasteners to tailhousing
- Now unbolt the bolts that attach the mount to the transmission tailhousing. Support remains with jack. Remove the mount assembly.

6. Compare old and new
- Lay out the old mount and compare to the new one. Note orientation of the rubber isolator, any locating tabs, and bolt patterns.

7. Install new mount
- Position new mount between tailhousing and crossmember. Start all bolts by hand to avoid cross-threading.
- Tighten tailhousing bolts first snugly, then crossmember bolts. Do not fully torque until the engine/transmission is at normal ride height (see next).

8. Lower and settle
- Carefully lower the jack supporting the tailhousing so the mount takes the load. If you used an engine support bar, lower it so the engine settles on mounts per manufacturer orientation. If you used a jack under the oil pan, lower the jack a little so the engine sits on mounts.
- Check alignment: the mount should fit flush to both mating surfaces; no metal-on-metal gaps.

9. Torque all bolts to specification
- Use a torque wrench and tighten bolts to the factory torque specs. Important: correct torque prevents crushed rubber or loose mounts. I strongly recommend consulting the factory service manual for exact torque values for your model year and mount configuration. If you don’t have the manual, many reputable sources and parts vendors list specs—verify before final tightening.

10. Reinstall removed parts and final checks
- Reinstall skid plates, heat shields, driveshafts or any removed components, reconnect battery.
- Lower vehicle, start engine, and carefully rev with parking brake on to check for abnormal movement. Watch for clunks or rubbing.
- Test drive at low speed, listen for clunks and check driveability and vibration.

Common pitfalls and how to avoid them
- Not fully supporting engine/transmission: can cause sudden drops and severe injury or damage. Always use appropriate supports.
- Stripped or broken bolt heads: soaking bolts with penetrant helps; use correct socket size and good quality tools; apply steady force rather than sudden jerks. If a bolt breaks, you may need extraction drill/left-hand bits or to replace the tailhousing stud — a repair shop may be needed.
- Over-tightening/under-tightening: incorrect torque can crush the rubber, cause premature failure, or allow movement. Always use torque wrench and correct specs.
- Wrong mount orientation: mounts often have an intended orientation; a mis-installed mount can create binding. Match shape and stud positions to old mount.
- Using polyurethane mounts without planning: poly is stiffer and increases NVH (noise, vibration, harshness). Consider whether that's acceptable.

Signs you fixed it
- No clunk when shifting or accelerating.
- Less vibration in the cab at idle/drive.
- Driveline feels aligned — no odd vibration at cruising speeds.
- New mount shows no undue deformation after a short break‑in drive.

What can go wrong after replacement
- Mount fails prematurely if bolts not torqued or mating surfaces corroded — the mount can be loaded incorrectly and split.
- If a thread was damaged during removal, bolts may loosen over time — check torque after 100/500 miles.
- Wrong part or poor-quality mount can transfer more vibration, loosen other components, or accelerate wear elsewhere.

Estimated time and difficulty
- Time: 1–3 hours for a competent beginner with good access and proper tools. Longer if bolts are seized or if other components must be removed.
- Difficulty: Moderate. The job is straightforward but requires safety discipline and correct support of heavy components.

Final notes and best practice
- Always replace damaged mount hardware (bolts, washers) with new grade hardware if they show corrosion or thread damage.
- Keep a notebook/photo log of bolt locations and any spacers—mounts often use specific washers or sleeves.
- After 100 miles, recheck torque on mount bolts.
- If you encounter a snapped bolt, stripped thread in the tailhousing, or a cracked crossmember, stop and consult a shop—those repairs may be beyond a simple DIY.

You now have the theory, the parts explained, a safe step-by-step procedure, common problems and fixes, and practical tips. Don’t rush; support the engine/trans carefully, verify torque specs for your exact year/model, and replace any damaged hardware.
rteeqp73
