The history of Massey Ferguson began in 1847, when Daniel Massey established a small blacksmith shop in Newcastle, Ontario, Canada. The company initially produced a variety of farm equipment, including harrows, plows, and threshing machines. In the following decades, Massey expanded its operations and began producing a wider range of agricultural equipment, including steam-powered threshing machines and reapers.

In 1891, Massey merged with the A. Harris, Son & Co. Ltd. to form Massey-Harris Co. Ltd. The merger brought together two of the largest agricultural equipment manufacturers in the British Empire, and the new company quickly became one of the leading suppliers of farm equipment in the world.

In the early 20th century, Massey-Harris continued to innovate and expand its product line, introducing new technologies such as gasoline-powered tractors and combine harvesters. The company also established a number of international subsidiaries and began exporting its equipment to countries around the world.

In 1953, Massey-Harris merged with Harry Ferguson Ltd, a leading manufacturer of tractors and implements, to form Massey-Ferguson. The new company was focused on producing a wide range of agricultural equipment, including tractors, combine harvesters, balers, and plows. This merger was pivotal in the history of Massey Ferguson as it gave the company a strong foothold in the global market.

In the 1960s and 1970s, Massey-Ferguson continued to expand its operations globally, opening manufacturing facilities in Europe, South America, and Asia. The company also continued to innovate and introduce new products, such as the MF1100 and MF1130 tractors, which were well received by farmers.

However, in the 1980s, Massey-Ferguson faced financial difficulties and struggled to compete with larger, more diversified companies. In 1994, AGCO Corporation acquired Massey-Ferguson, and the company became a subsidiary of AGCO.

Today, Massey Ferguson continues to produce a wide range of agricultural equipment, including tractors, combine harvesters, balers, and plows, as well as hay and forage equipment, seeding and planting equipment, and material handling equipment. The company has a presence in more than 140 countries and is known for its durable and reliable machinery. Despite a few ups and downs in its history, Massey Ferguson is still considered as one of the most respected and well-known brand in the agricultural industry.

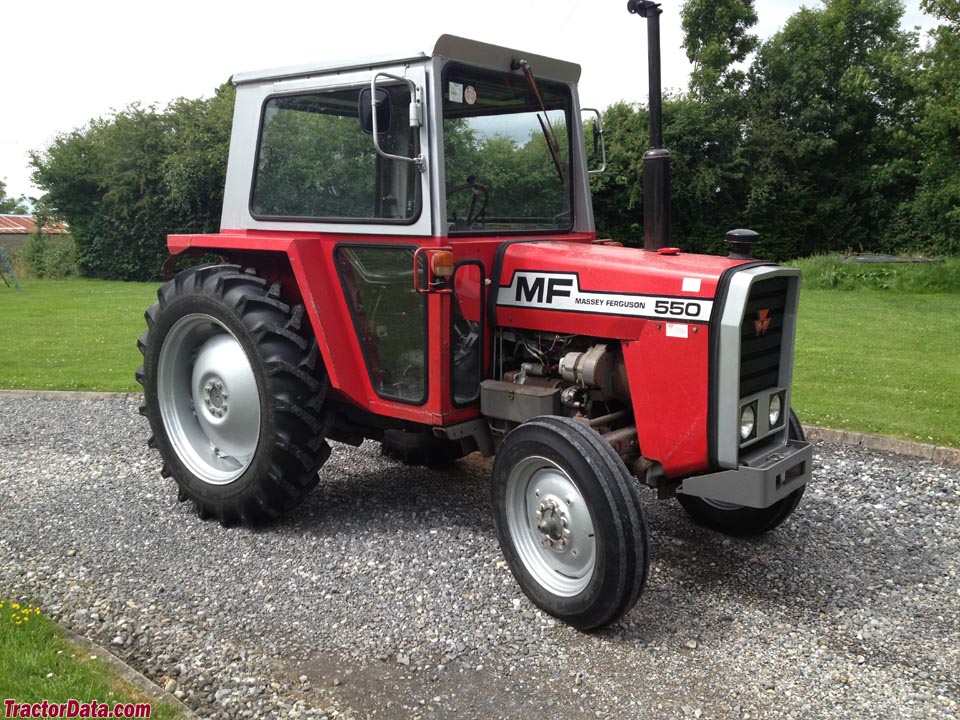

An engine overhaul on a Massey Ferguson 550 tractor involves disassembling the engine, inspecting and replacing any worn or damaged parts, and reassembling the engine. It is a complex process that requires a high level of mechanical knowledge and experience. Here are the general steps for overhauling a Massey Ferguson 550 engine:

1. Drain the oil and coolant from the engine.
2. Remove the hood, radiator, and other components to access the engine.
3. Disassemble the engine, separating the cylinder head from the block, and removing the pistons, connecting rods, and crankshaft.
4. Inspect all the parts for wear, damage, or other issues. Replace any parts that are damaged or worn beyond acceptable limits.
5. Reassemble the engine, installing new gaskets and seals as needed.
6. Reinstall the hood, radiator, and other components.
7. Fill the engine with new oil and coolant.
8. Start the engine and check for any leaks or other issues.

It is important to note that this is a general overview, and specific steps and procedures may vary depending on the engine model and year. It is recommended that you consult the factory service manual for the specific engine, or have the work done by a professional mechanic.

Tools & supplies
- Blow‑by tester kit (clear graduated cylinder/collection tube with hose + dipstick‑tube adapter and clamp). If unavailable a clear 250–500 ml graduated bottle with a tight-fitting rubber adapter and hose will do.
- Hose clamp(s), rubber/foam adapters to seal dipstick tube.
- Tachometer (handheld) or reliable rev counter.
- Basic hand tools (sockets, screwdrivers, pliers) to remove dipstick/oil filler or any breather components.
- Rags, drip tray, disposable gloves, safety glasses.
- Battery in good condition or jump pack (to crank reliably).
- Fuel/oil absorbent and fire extinguisher nearby.

Safety precautions
- Tractor parked on level ground, parking brake set, wheels chocked, PTO disengaged, transmission in neutral.
- Work outdoors or in a well‑ventilated area — blow‑by contains fuel/oil vapour.
- Engine hot surfaces and rotating parts: keep hands, hair and clothing clear. Never lean over the engine while cranking/running.
- No smoking or open flames. Have a fire extinguisher handy.
- Use eye protection and gloves — blow‑by can spit hot oil.
- If cranking for tests, don’t crank more than ~15–20 seconds continuously; allow battery/cool starter gaps to recover.
- If you must disconnect battery for safety when doing other work, reconnect for the test.

What the blow‑by tester does (short)
- The tool captures and measures the volume of combustion gases and oil mist escaping past piston rings into the crankcase (via the dipstick or oil filler/breather) while the engine is running or being cranked. The collected volume over a fixed time gives a cc/min or ml/min reading indicating ring/cylinder health.

Preparation
1. Warm engine to normal operating temperature (rings and clearances expand; gives realistic reading).
2. Shut off engine and let it idle briefly to cool slightly so you can work safely.
3. Locate the crankcase access point: use the dipstick tube or the oil filler/breather opening as the test port. Choose the tube that gives direct access to the crankcase (dipstick tube is common on MF S‑500 tractors).
4. Inspect the dipstick tube for damaged seals or large leaks — you’ll need a good airtight seal for an accurate test.

Step‑by‑step blow‑by test (running method — preferred)
1. Remove the dipstick and insert the blow‑by tester adapter into the dipstick tube. Make sure the adapter seats fully and clamp it airtight with a hose clamp or rubber adaptor so no air leaks.
2. Connect the other end of the tester hose to the clear graduated cylinder/collector and secure it upright so you can read the scale. Make the system as airtight as possible except the collector vent (most kits vent to atmosphere).
3. Start the engine and allow idle to stabilize. Note: some procedures call for a specific rpm (consult manual); if not available, perform at fast idle (just below max governed rpm) and at normal idle for comparison. Use a tachometer to hold the required rpm.
4. Run for a fixed interval (commonly 1 minute). Start timing as soon as rpm is stable. The blow‑by gases will flow into the collector and you will see oil mist/condensate and air movement into the cylinder.
5. Read the volume collected (ml or cc) and record (e.g., ml/min).
6. Repeat the test two more times to confirm consistency; average the readings.
7. For better diagnosis, perform the test at idle and at fast idle, and compare results.

Cranking blow‑by check (quick diagnostics)
1. With the tester connected as above, have an assistant crank the engine with the starter in 10–15 second bursts while you watch the collector.
2. Measure how much is expelled during cranking; excessive flow during cranking indicates very poor ring sealing or stuck rings.

Interpreting results
- No universal numeric spec fits all engines. Check the Massey Ferguson S‑500 workshop manual for factory blow‑by limits. If manual is not available:
- Very low: a few cc/ml per minute — healthy.
- Moderate: tens of ml/min — borderline, monitor and inspect breathers/PCV.
- High: hundreds of ml/min or heavy oil spray — indicates worn piston rings, cylinder wear, ring sticking, or failed valve stem seals (diesel engines mainly rings/cylinders).
- Cross‑check with compression test and oil consumption/smoke symptoms to isolate root cause.

Common pitfalls & how to avoid them
- Poor seal at dipstick tube or tester connections → false low or unstable readings. Ensure clamps and rubber adapters are tight and air‑proof.
- Testing on a cold engine → higher-than-normal blow‑by. Always warm engine first.
- Leaving other vents open (air cleaner, breather) that change flow paths → follow kit instructions and isolate ports where specified.
- Running too long without cooling — starter/battery overheating during cranking or risk of overrev with hand‑throttle. Use short test intervals.
- Misreading condensate vs actual gas flow — allow enough time for oil mist to collect and read liquid volume, not just visible vapour.
- Comparing numbers without factory specs — always check workshop manual for acceptable limits.
- Forgetting to drain collected oil into appropriate waste container — dispose of contaminated oil per regulations.

If blow‑by is high — likely repairs/replacement
- Replace or clean crankcase breather/PCV elements and gaskets (cheap, first step).
- Replace worn dipstick tube O‑ring or breather seals to ensure system integrity.
- If cleaning breathers doesn’t help: compression test and leak‑down test per cylinder:
- If cylinders show low compression and high blow‑by, piston rings and/or cylinder bore re‑hone or re‑ringing may be required.
- Valve guide/seat or valve stem seal replacement if oil leakage past valves is suspected.
- Typical service items: piston rings, cylinder sleeves/honing, valve stem seals/guides, crankcase gasket sets.
- For major work (rings/sleeves) refer to the Massey Ferguson workshop manual for torque, clearances, and correct part numbers.

How the tool is used (practical notes)
- The clear collector must be upright and level; hose runs downhill from dipstick to collector so oil drains into the bottle not back into engine.
- Some kits include a small one‑way check valve between dipstick and collector — use as instructed so the engine does not ingest backflow.
- Use the graduated markings to get cc/ml directly; if using an improvised bottle, mark volumes beforehand.
- If you have a blow‑by gauge with a pressure/vacuum readout, the procedure is similar but read pressure instead and compare to manufacturer pressure limits.

Final advice
- Start with breathers/PCV and seals — inexpensive to replace and often cures marginal blow‑by.
- If results are high and confirmed by compression/leak‑down tests, plan for piston/ring service or cylinder work.
- Always follow the S‑500 workshop manual for exact limits and repair procedures.

No extra questions.
rteeqp73

- Safety and preparation
- Wear safety glasses, gloves, steel-toe boots and hearing protection when cutting/welding or using impact tools.
- Work on a flat, level surface with wheel chocks and the parking brake set.
- Get the official Massey Ferguson S-500 series workshop manual and the gearbox/parts diagrams for torque specs, disassembly sequence and shim data — these are essential.
- Have a clean bench and labeled trays or magnetic dishes to keep fasteners and small parts organized.
- Drain gearbox oil into a suitable container and dispose/recycle according to local rules.

- Basic tools (what they are, how to use them)
- Combination wrench set (open-end and box-end): used to loosen/tighten nuts and bolts where a socket cannot reach. Match wrench size to bolt, pull the wrench toward you on the box end to avoid slipping.
- Socket set with ratchet (3/8" and 1/2" drive): remove bolts quickly; use correct size socket (not worn) to avoid rounding heads. Use extension bars for deep bolts.
- Breaker bar: long-handled non-ratcheting bar for breaking loose tight or rusted bolts. Use smooth, steady force — do not apply sudden jerks.
- Torque wrench: required to tighten bolts to specified torque values from the manual. Set the wrench to the exact value and apply smooth pressure until it clicks (click-type) or the reading is reached.
- Screwdrivers (flat and Phillips) and nut drivers: for clamps, covers and small screws. Use correct tip size to prevent cam-out.
- Hammer (ball-peen) and soft-faced mallet (rubber or plastic): use the soft mallet to persuade parts without damaging surfaces; use ball-peen for light persuasion and driving punches.
- Punch set (drift pins): remove roll pins or align holes. Use appropriate diameter and strike with hammer; support the part to avoid bending.
- Pry bars / flatbar: separate housings and gently free stuck parts — use leverage carefully to prevent cracking castings.
- Wire brushes and gasket scrapers: clean old gasket material and dirt from mating surfaces. Use a plastic scraper first on soft surfaces to avoid gouging.
- Drain pans and funnels: collect gearbox oil and refill cleanly.
- Cleaning solvents (parts cleaner) and rags: degrease parts before inspection.

- Tool use tips for a beginner
- Always use the correct size tool; a loose fit increases rounding and injury risk.
- Apply penetrating oil (e.g., PB Blaster) on rusted bolts and let soak before attempting to loosen.
- Use two hands on larger tools and keep body position stable; avoid placing your face over bolts when breaking loose.
- Label parts and take photos at each stage — that makes reassembly far easier.

- Specialized tools you will likely need (detailed description and why)
- Gearbox jack or transmission jack
- Description: low-profile jack with adjustable cradle for supporting and lowering heavy gearboxes.
- Why: safely supports gearbox weight during removal/installation; avoids dropping the gearbox or injuring yourself.
- Bearing puller / gear puller (3-jaw or slide hammer)
- Description: tool that grips a bearing or gear to pull it off a shaft uniformly.
- Why: bearings and gears press-fit on shafts; a puller removes them without damaging bores or shafts.
- Hydraulic press (or access to one at a shop)
- Description: bench or shop press that uses hydraulic force to press bearings on/off shafts and fit bushes.
- Why: many bearings and gears need controlled pressing for removal/installation; trying to hammer them risks damage.
- Snap-ring pliers
- Description: pliers designed to remove/install circlips/snap rings from grooves.
- Why: internal/external rings hold bearings and shafts in place; remove them safely to free components.
- Dial indicator with magnetic base
- Description: precision instrument measuring runout and endplay to 0.01 mm accuracy.
- Why: you must measure shaft endplay, backlash and gear runout to determine wear and shim requirements.
- Micrometer and vernier caliper
- Description: precision measuring tools for shaft diameters, bearing bores and gear thickness.
- Why: to compare measurements with manual tolerances and decide whether to replace parts.
- Seal driver / bearing installation sleeves
- Description: tubular or stepped tools to drive seals and bearings squarely into housings.
- Why: prevents deforming seals/bearings during installation.
- Thread repair kit (Helicoil/insert kit)
- Description: drill, tap and insert tool to repair stripped threaded holes.
- Why: gearbox housings often have stripped studs; repairing threads avoids replacing housing or studs.
- Gasket cutter / RTV and sealant
- Description: gasket paper/cutter or RTV silicone for sealing mating surfaces when no paper gasket is used.
- Why: to form reliable oil-tight seals on covers and housing seams.
- Electric or acetylene torch (for heat assistance) — optional, use with care
- Description: heat source to expand metal locally.
- Why: heating a stuck bearing/hub a few degrees can make removal easier; use only when safe.
- Welding equipment and machine shop access
- Description: MIG/TIG welder and machining (line boring, surface milling) services.
- Why: cracked or broken castings require welding and machining; this is specialist work typically done by a machine shop.

- When to call a machine shop or pro (and why)
- Cracked gearbox housing, broken mounting bosses, severely worn bearing bores, or damaged bearing journals.
- Why: these require welding, straightening, machining and precision re-boring or line-boring that a home garage rarely can accomplish safely or accurately.

- Common gearbox parts that might need replacement (what they are and why)
- Gaskets and O-rings
- What: paper, rubber or cork seals between cover and housing.
- Why: commonly leak after removal or age; always replace when opening gearbox.
- Oil seals (output, input, mainshaft)
- What: lip seals that keep oil in and contaminants out.
- Why: dried or worn seals cause leaks; replace rather than trying to recondition.
- Bearings (roller, taper, ball)
- What: support rotating shafts and allow low-friction motion.
- Why: bearings wear, become noisy, or develop play. Replace if rough, pitted, or out of tolerance.
- Synchro rings, dog clutches, selector forks
- What: parts that engage gears and make shifting possible.
- Why: worn synchros or forks cause gear slipping or inability to select gears; replace worn or broken pieces.
- Shafts and gears
- What: layshaft, mainshaft and driven gears.
- Why: teeth can be chipped/rounded; shafts can be scored or bent. Worn gears require replacement.
- Studs, bolts and nuts
- What: fasteners holding housing, covers, and peripherals.
- Why: corroded or stretched fasteners should be replaced; stripped holes may need repair.
- Gearbox housing (case)
- What: cast housing that supports all components.
- Why: cracked or broken housings may require welding and machining or replacement.

- How to diagnose what needs repair
- Note symptoms: oil leaks (track origin), noise (grinding/whining), difficulty shifting, gear slippage, visible cracks or broken mounts.
- Listen during operation to locate which area (mainshaft end, PTO area, input).
- Check oil level and condition — metallic particles indicate internal wear; magnet in drain plug (if fitted) will collect ferrous debris.
- Visual inspection around seals, plugs and housings for leaks or cracks.

- Disassembly and inspection workflow (bulleted sequential guidance)
- Photograph linkage, levers and cable routing; mark positions and orientation of selector rods.
- Support tractor securely and remove any guards, linkage, driveshafts, PTO and hydraulic couplings.
- Use gearbox jack to support and remove gearbox from tractor following manual lift points.
- Place gearbox on sturdy bench; drain final remaining oil, remove external covers and inspect inside.
- Remove selector forks, collars, shift rails and keep parts organized by location.
- Remove snap rings and use bearing puller/hydraulic press to extract bearings and gears; note shim locations and thicknesses — keep shim order.
- Clean all parts with parts cleaner and brush; inspect:
- Bearings for roughness, pitting or axial/radial play.
- Shafts for scoring, wear on journals and shoulder gaps.
- Gear teeth for chips, rounding, or pattern shift.
- Housing bores for ovality or wear — measure with micrometer/caliper and compare to manual.
- Measure gear backlash with dial indicator and check endplay. Compare to manual tolerances.
- Decide replacements: any part out of tolerance, noisy, worn or cracked = replace.

- Repair decisions and methods
- Replace seals & gaskets: always replace when housing opened.
- Replace bearings: if rough, noisy or out-of-spec; press new bearings on with hydraulic press using correct sleeves.
- Replace gears/shafts: if teeth are chipped, shafts bent, or journals beyond repair; obtain genuine or OEM-equivalent parts.
- Thread repair: use Helicoil or solid insert for stripped threads; follow kit instructions and use the correct size insert.
- Housing cracks: if small, a welding repair by a skilled welder may be possible; follow with machining to true mating surfaces. If cracks are extensive, replace housing or use a remanufactured gearbox.
- Re-shimming: if assembly requires specific shim pack to set bearing preload or endplay, use new shims or replace worn ones to spec.

- Reassembly notes (critical)
- Clean mating surfaces; use new gaskets or specified sealant and torque bolts to manual values using torque wrench.
- Install seals with a seal driver; do not hammer the lip. Ensure seal faces are clean and lubricated.
- When pressing bearings on, apply force only to the bearing race that is being pressed, not the rolling elements.
- Reinstall shims and set bearing preload and gear backlash to manual specifications using a dial indicator and feeler gauges. Do not guess these measurements.
- Apply recommended gearbox oil type and fill to the correct level indicated in the manual.
- Refit gearbox to tractor using gearbox jack and torque mounting bolts to spec.
- Reconnect linkages and verify gear selection before running.

- Testing after repair
- With tractor on stands (wheels blocked), run through gear changes with engine off to verify linkage engagement and free movement.
- Start engine and run at low idle; listen for abnormal noises.
- Test drive slowly under light load; then re-check oil level and look for leaks.
- Re-check torque on critical fasteners after first few hours of operation (per manual).

- Parts to buy before starting (recommended starter list)
- Full gasket kit for gearbox and covers.
- Seal kit (input, output, PTO seals).
- Bearing kit (main bearings per service manual) or at least bearings identified as worn during inspection.
- Snap rings, shims (assorted), and replacement studs/bolts.
- Gearbox oil (correct grade and capacity from manual).
- Thread repair kit (Helicoil) and high-quality RTV/sealant.
- Optional: new selector forks/synchros if symptoms indicate need.

- Where to source parts and service
- Local Massey Ferguson dealer for OEM parts and part numbers.
- Established tractor parts suppliers for aftermarket kits — verify compatibility with S-500 series.
- Machine shop for welding, shaft straightening, re-boring or precision pressing if needed.

- Final practical advice for a beginner
- Don’t attempt welding or machine work yourself unless you have experience — welding cast iron and aligning bores is specialist.
- If you lack a hydraulic press, dial indicator or gearbox jack, either rent or have the bearing removal/installation and precision checks done at a shop.
- Budget time — gearbox work commonly takes a day or multiple days for a beginner.
- Keep the workshop manual at hand for torque values, clearances and exploded diagrams.

- Quick checklist before you start
- Workshop manual obtained
- Clean workspace and parts trays
- Safety gear on hand
- Basic and specialized tools available or access arranged
- Replacement seals/gaskets and likely bearings ordered

- If you want, I can
- Provide a prioritized shopping list of specific part numbers (need serial number or VIN) and approximate costs.
- Give a simplified checklist for gearbox removal and reinstallation tailored to S-500 series if you confirm you have a jack and basic hand tools.
rteeqp73
