Massey Ferguson is a Canadian agricultural equipment manufacturer that has a long and storied history dating back to the 19th century. The company was founded in 1847 by Daniel Massey as the Massey Manufacturing Co., and it started out by producing agricultural equipment such as threshing machines and reapers. Over the years, the company grew and expanded, and it eventually became one of the leading manufacturers of agricultural equipment in the world.

In the early 20th century, Massey Ferguson started to focus more on tractors. The company's first tractor, the Massey Harris GP, was introduced in 1920. This tractor was equipped with a 20 horsepower engine and was designed to be versatile and powerful. The GP was a popular tractor among farmers and was known for its reliability and durability.

During the 1930s, Massey Ferguson introduced a number of new tractor models, including the Massey Harris 101 Senior and the Massey Harris 30. These tractors were equipped with more powerful engines and featured more advanced technology and features. They were also designed to be more fuel-efficient and environmentally-friendly than their predecessors.

In 1953, Massey Harris and the Ferguson company merged to form Massey Ferguson. The merger brought together two of the most well-respected brands in the agricultural equipment industry and allowed the company to expand its product line and reach more customers.

During the 1950s and 1960s, Massey Ferguson introduced a number of new tractor models, including the MF35, MF65, and MF135. These tractors were equipped with more powerful engines and featured more advanced technology and features. They were also designed to be more fuel-efficient and environmentally-friendly than their predecessors. In the late 1960s and early 1970s Massey Ferguson was the largest tractor manufacturer in the world.

In the 1970s, Massey Ferguson focused on developing tractors that could handle more demanding farming tasks. The company introduced the MF150, MF230, and MF235, which were equipped with more powerful engines and featured more advanced technology and features. They were also designed to be more fuel-efficient and environmentally-friendly than their predecessors.

In the 1980s, Massey Ferguson continued to develop new tractor models, such as the MF240, MF245, and MF255. These tractors were equipped with more powerful engines and featured more advanced technology and features. They were also designed to be more fuel-efficient and environmentally-friendly than their predecessors.

In the 1990s, Massey Ferguson faced increasing competition from other agricultural equipment manufacturers and struggled to maintain its market share. The company introduced new tractor models, such as the MF290, MF300, and MF3000, but they were not as successful as their predecessors.

In the 2000s, Massey Ferguson was acquired by AGCO, a global agricultural equipment manufacturer. Under AGCO's ownership, Massey Ferguson continued to develop new tractor models, such as the MF4700, MF5700, and MF6700. These tractors were equipped with more powerful engines and featured more advanced technology and features. They were also designed to be more fuel-efficient and environmentally-friendly than their predecessors.

Today, Massey Ferguson continues to be a leading manufacturer of agricultural equipment. The company's tractors are known for their reliability, durability, and power, and they are used by farmers and ranchers all over the world. Massey Ferguson is also known for its commitment to innovation, and the company continues to develop new technologies and features to help farmers work more efficiently and effectively.

Throughout its history, Massey Ferguson has played an important role in the agricultural industry and has been known for producing reliable, durable, and powerful agricultural equipment. The company has undergone several changes in its ownership,

The Positive Crankcase Ventilation (PCV) valve is a crucial component in the engine's ventilation system. Its primary function is to allow gases that build up in the crankcase (from blow-by, oil evaporation, etc.) to be recirculated back into the intake manifold for combustion, thus reducing emissions and preventing pressure buildup in the crankcase.

### Theory Behind PCV Valve Replacement:

#### 1. **Symptoms of a Faulty PCV Valve:**
- **Oil leaks:** A stuck PCV valve can lead to increased pressure in the crankcase, causing oil to leak from seals and gaskets.
- **Poor engine performance:** A malfunctioning valve can disrupt the air-fuel mixture, leading to inefficient combustion.
- **Increased emissions:** A blocked or malfunctioning valve can cause excessive hydrocarbon emissions.
- **Engine noise:** A faulty valve may lead to abnormal engine sounds due to excessive pressure.

#### 2. **Understanding the PCV System:**
- The PCV system relies on intake manifold vacuum to draw crankcase gases through the PCV valve and back into the combustion chamber.
- A properly functioning PCV valve opens and closes based on engine load and vacuum, maintaining optimal crankcase pressure and ensuring proper ventilation.

### Steps for PCV Valve Replacement:

1. **Preparation:**
- **Safety Precautions:** Ensure the engine is cool and disconnect the battery to avoid any electrical hazards.
- **Gather Tools and Parts:** You will need a new PCV valve, basic hand tools, and possibly a socket set.

2. **Locate the PCV Valve:**

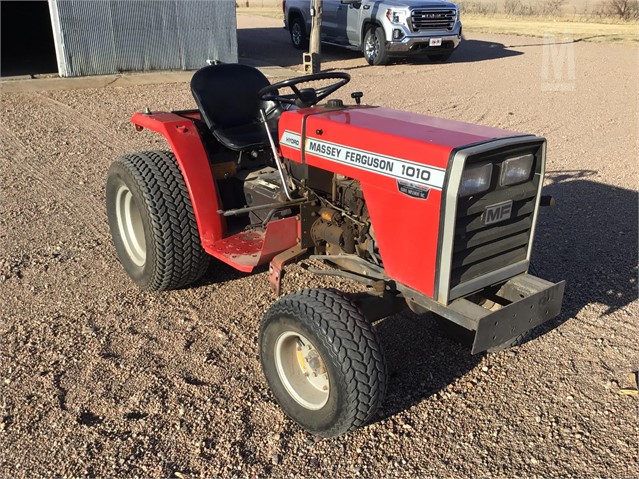

- The PCV valve is typically found on the valve cover or connected to the intake manifold. Identify its location in the Massey Ferguson 1010/1020.

3. **Remove the Old PCV Valve:**
- Disconnect any hoses or clips holding the PCV valve in place. Carefully twist and pull the old valve out. Inspect the area for any signs of oil buildup or damage.

4. **Install the New PCV Valve:**
- Insert the new PCV valve into its designated spot, ensuring it fits snugly. Reattach any hoses or clips that were removed.

5. **Check for Proper Function:**
- Start the engine and observe the operation of the new PCV valve. You should see a reduction in engine noise and improved performance as the valve effectively regulates crankcase pressure.

6. **Final Inspection:**
- Look for any leaks around the valve and ensure that all connections are secure. Reconnect the battery.

### How the Repair Fixes the Fault:
Replacing a faulty PCV valve restores the intended airflow and pressure regulation within the crankcase. This prevents oil leaks, enhances engine performance, and minimizes harmful emissions. A new valve will open and close properly with changes in engine load, ensuring that crankcase gases are effectively managed and recirculated for combustion, maintaining engine health and efficiency.
rteeqp73

### Suspension Knuckle Repair on Massey Ferguson 1010/1020 Tractor

#### Tools Required:

- **Socket Set**
- Description: A collection of sockets in various sizes that fit over nuts and bolts.
- Usage: To remove and install bolts on the suspension knuckle assembly. Ensure you have both metric and SAE sizes to match your tractor’s specifications.

- **Wrench Set**
- Description: A set of open-end and box-end wrenches in various sizes.
- Usage: Use to hold nuts in place while loosening or tightening bolts. The box-end is useful for gripping nuts better.

- **Torque Wrench**
- Description: A tool that measures the torque applied to a fastener.
- Usage: Ensures that bolts are tightened to the manufacturer’s specified torque, preventing under-tightening or over-tightening.

- **Hammer**
- Description: A standard hammer or rubber mallet.
- Usage: To gently tap components into place or break loose stubborn parts without causing damage.

- **Pry Bar**
- Description: A long, sturdy metal bar with a flat end.
- Usage: To help leverage and separate components that may be stuck together.

- **Jack and Jack Stands**
- Description: A hydraulic jack to lift the tractor and stands to secure it.
- Usage: To elevate the tractor safely while you work on the suspension knuckle.

- **Grease Gun**
- Description: A tool to apply grease to moving parts.
- Usage: After reassembly, apply grease to the knuckle and associated joints to ensure proper lubrication.

- **Cleaning Supplies**
- Description: Rags, brushes, and solvent.
- Usage: To clean old grease, dirt, and debris from the parts before reassembly.

#### Steps for Suspension Knuckle Repair:

- **Preparation**
- Park the tractor on a flat surface and engage the parking brake.
- Use the jack to lift the front end of the tractor and place jack stands securely under the frame.

- **Remove Wheel**
- Use the socket set to remove the wheel bolts. This will give you access to the suspension components.

- **Inspect Suspension Knuckle**
- Check the knuckle for wear, cracks, or damage. If it’s bent or broken, it will need to be replaced.

- **Remove Old Knuckle**
- Use the socket set and wrench to remove the bolts securing the knuckle to the axle and any other attached components.
- If the knuckle is stuck, use the pry bar to gently separate it from the axle.

- **Clean Surface**
- Use cleaning supplies to remove old grease and dirt from the mounting surfaces to ensure a clean fit for the new knuckle.

- **Install New Knuckle (if necessary)**
- If replacing, obtain a new suspension knuckle specific to your Massey Ferguson 1010/1020 model.
- Align the new knuckle on the axle and secure it with the bolts previously removed. Use the torque wrench to tighten to the specified torque.

- **Reassemble Components**
- Reinstall any components removed during the process, making sure they are properly secured.

- **Reattach Wheel**
- Place the wheel back on and use the socket set to tighten the wheel bolts securely.

- **Lower the Tractor**
- Remove the jack stands and lower the tractor back to the ground.

- **Lubricate**
- Use a grease gun to apply grease to the knuckle and any pivot points to ensure smooth operation.

#### Replacement Parts:

- **Suspension Knuckle**
- If you find cracks or significant wear, a new suspension knuckle is necessary. It can be sourced from a Massey Ferguson dealer or aftermarket suppliers.

- **Bolts and Fasteners**
- Inspect the condition of bolts and fasteners. If they are corroded or stripped, replace them to ensure safe and secure assembly.

### Notes:
- Always refer to the Massey Ferguson service manual for specific torque settings and specifications.
- If you encounter any complications or uncertainties, consulting a professional mechanic is advised.
rteeqp73

I’m presenting a practical, technician-style procedure for replacing the timing belt on a Massey-Ferguson 1010 / 1020 tractor. This is a general workshop procedure — follow the tractor’s service manual for exact torque values, belt part numbers, and any model-specific locking tools. No questions.

Tools & equipment
- Basic hand tools: metric socket/ratchet set (3/8" & 1/2"), combination wrenches, screwdrivers, pliers.
- Torque wrench (range covering ~10–150 Nm).
- Breaker bar (to turn crankshaft).
- Crankshaft pulley holding tool / strap wrench (to prevent pulley turning while loosening).
- Harmonic balancer / pulley puller (if pulley must be removed).
- Camshaft/crankshaft locking tools or locking pins (or accurately fabricated drift pins).
- Feeler gauge / timing pointer or TDC gauge (for verifying TDC).
- Belt tension gauge (or manufacturer-specified tensioning tool). If unavailable, an accurate pry-bar method with spec for deflection.
- Jack and axle stands or ramps (if lifting tractor).
- Engine support or hoist (only if engine mounts must be loosened).
- Clean rags, gasket scraper, small brush.
- Thread locker (medium strength) for bolts if manual specifies.
- Safety equipment: gloves, safety glasses, hearing protection, shop light.

Replacement parts & consumables
- Correct timing belt for MF 1010 / 1020 (OEM or equivalent).
- Tensioner and idler pulleys (replace as a set with the belt).
- Water pump (if driven by timing belt) — replace if worn or recommended by interval.
- Cam/crank seals if they show leakage.
- Sealant/gaskets for any covers removed.
- Clean engine oil (if any contamination occurs) and coolant if water pump replaced.

Safety precautions (non-negotiable)
- Work on level ground, set parking brake, chock wheels.
- Disconnect negative battery terminal.
- Allow engine to cool completely before starting.
- Support raised tractor securely on stands — never rely on a jack alone.
- Use proper eye/hand protection. Keep loose clothing/jewelry away from pulleys.
- Mark or photograph belt routing and timing marks before removal.
- Do not rotate engine counterclockwise unless manual permits; rotate in normal running direction only.

Step-by-step procedure
1. Preparation
- Park tractor on level ground, chock wheels, engage park/neutral, disconnect negative battery.
- Remove any front grill, baffling, or accessories that block access to the timing cover (radiator fan shroud, fan if needed — support the fan when removing).
- Drain coolant only if water pump removal required. Otherwise avoid draining.

2. Expose timing components
- Remove crankshaft pulley/fan as required to access timing cover. Use pulley puller if the pulley is pressed on.
- Remove timing belt covers to expose belt, tensioner, idler(s), cam and crank sprockets.
- Clean dirt and grease from the area so marks are visible.

3. Set engine to Top Dead Center (TDC) on the No.1 cylinder (compression stroke)
- Remove the glow plug or injector line on cylinder 1 if necessary to observe piston position or use manufacturer TDC pointer.
- Rotate crankshaft with breaker bar in normal running direction until timing marks on crank and cam line up to the factory TDC marks (reference marks on pulley/housing/gears).
- Verify that cam lobes for cylinder 1 are on compression stroke (both intake & exhaust valves closed) — if uncertain, rotate one full turn and realign marks to ensure correct stroke.

4. Lock cam and crank
- Install camshaft and crankshaft locking tools/pins per manual. If special tools aren’t available, use accurately measured dowel pins placed into service holes (only if you are certain of alignment and service docs — better to use the proper tools).
- Ensure locking prevents rotation; do not rely on the belt or tensioner to hold timing.

5. Relieve belt tension & remove old belt
- Loosen the tensioner locking bolt and move the tensioner to remove tension (method depends on tensioner type — spring-loaded or eccentric).
- Remove the belt from idlers, cam and crank sprockets. Do not rotate crank or cam once unlocked.
- Inspect sprockets, keys, and teeth for wear or damage. Check cam/crank seals for leakage.

6. Replace tensioner/idlers (recommended)
- Replace tensioner pulley and idler pulleys—remove old units, install new bearings and pulleys, torque bolts to spec.
- If water pump is belt-driven, inspect/replace it now (new pump, new gaskets/sealant). Torque mounting bolts per manual.

7. Fit new timing belt
- Compare old and new belt length/teeth. Confirm belt direction arrow; if belt is directional, install with arrows pointing in running direction.
- Route belt over crank sprocket, then over tensioner/idlers, finally over cam sprocket. Put the tight side (usually from crank to cam on the side of the belt under load) first; slack side should be opposite.
- Keep belt taut on the non-adjustable (tight) side while placing slack side over tensioner.

8. Set initial tension
- Preload the tensioner per manual — many tractors use an eccentric tensioner: rotate to a specified angle or use a torque on the tensioner bolt while holding the eccentric in position.
- If a belt tension gauge is specified, measure deflection at the midpoint between two pulleys with the specified force and adjust until within spec.
- If no gauge spec available, typical procedure: apply moderate hand pressure or use pry-bar to achieve manufacturer deflection value (consult workshop manual). Tighten tensioner lock bolt while holding position.

9. Re-check timing alignment & rotate engine
- Remove cam/crank locks carefully (after confirming belt tension per procedure).
- Manually rotate engine two full revolutions in running direction using breaker bar on crank pulley.
- Re-align timing marks — they must coincide exactly after two revolutions. If not, repeat installation.
- Re-install locking tools and re-check tension one more time.

10. Final assembly
- Torque pulley, tensioner, water pump bolts to manufacturer specs.
- Reinstall timing covers, fan, shrouds, and any other components removed.
- Refill coolant if drained, reconnect battery.

11. Start-up & verification
- Start engine and let idle. Listen for abnormal noise (squeal, clatter).
- Warm to operating temperature, shut down, re-check belt tension and bolts after initial run (re-torque if required).
- Road-test / load-test under normal operating conditions and re-check after short hours of use.

How specific tools are used (concise)
- Breaker bar: to rotate crank to TDC and during final two-turn check. Always rotate in engine’s normal direction.
- Crankshaft pulley holding tool: holds the pulley when loosening/tightening crank bolt without turning crank.
- Pulley puller: removes pressed-on crank pulley without damaging hub.
- Cam/crank locking tools: lock gear positions so timing doesn’t shift when belt removed.
- Belt tension gauge: measures belt deflection at midpoint with known force; adjust tensioner until in specified range.
- Torque wrench: final torque on bolts to prevent loosening or over-torqueing bearings.

Common pitfalls & how to avoid them
- Mis-setting TDC (compression vs exhaust stroke): verify cam lobe positions and use locking tools; rotate two turns and re-check.
- Reusing the old tensioner/idlers: they wear; always replace with the belt to avoid premature failure.
- Incorrect tension (too tight or too loose): too tight damages bearings and water pump; too loose causes skipped teeth. Use gauge or manual procedure.
- Not replacing water pump if driven by belt: a failed pump will ruin the new belt.
- Skipping the two-revolution check: always rotate by hand two revolutions and verify marks.
- Using wrong-direction belt: install per arrow if belt is directional.
- Overlooking seals: leaking crank/cam seals contaminate and damage belt — replace if any sign of leakage.
- Not re-torquing bolts after run-in: some fasteners may settle; re-check after initial operation.

Final notes
- Exact torque values, tension specs, and part numbers are in the Massey-Ferguson workshop manual for the 1010/1020 — consult it for critical numbers.
- Replace belt/tensioner/idler as a set and replace water pump/seals if doubt exists.
- If any special locking tools are shown in the manual, use them — improvised methods risk engine damage.

Done. Follow the workshop manual for torque/tension numbers and parts.
rteeqp73
