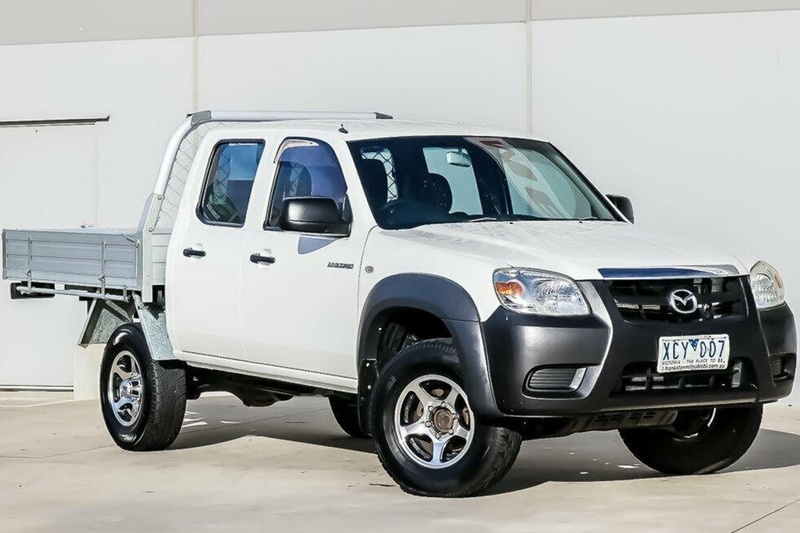

The Mazda BT-50 (model code J97M) is a compact/mid-sized pickup truck produced by the Japanese manufacturer Mazda since 2006. It is a larger version of the predecessor B-Series pickup and is not sold in the Japanese and North American markets. Until 2011, Ford had also sold a version of the first-generation BT-50 as the Ford Ranger and as the SUV Ford Everest. From 2011 the second-generation Ranger has been designed by Ford Australia, with a Mazda derivative sold as the BT-50.

The Mazda BT-50 (model code J97M) is a compact/mid-sized pickup truck produced by the Japanese manufacturer Mazda since 2006. It is a larger version of the predecessor B-Series pickup and is not sold in the Japanese and North American markets. Until 2011, Ford had also sold a version of the first-generation BT-50 as the Ford Ranger and as the SUV Ford Everest. From 2011 the second-generation Ranger has been designed by Ford Australia, with a Mazda derivative sold as the BT-50.

Ford also offers an SUV version of the Ranger, known as the Ford Everest in Asia, Central America, and the Bahamas, and since late 2009 as a 2010 model, in South Africa, where it replaces the Australian-sourced Ford Territory. In India, it is called the Ford Endeavour.

The second-generation Everest has three rows of seating, and rear- or four-wheel drive. It offers Duratorq diesel engines and two different drivetrains: 4x2 for 2.5-liter 143 hp (107 kW) models, and 4x4 for 3.0-liter 156 hp (116 kW) models. In addition, the redesign featured the new five-speed automatic transmission with a Borg Warner transfer case, and the new Active-Shift-on-the-Fly (4x4 only) for the first time.

In the United States, Ford had planned to name an extended-length version of the Ford Expedition the Everest in 2006 as a replacement for the Ford Excursion, but changed at the last minute and decided to rename it the Expedition EL.[4]

In mid-2009, the Everest received a facelift in Southeast Asia, in line with the Ranger's recent update. This facelifted 2009 edition of the Ford Everest continues to be available with either a 2.5-liter turbodiesel with 143 PS (105 kW; 141 hp) or a 3.0-liter turbodiesel with 156 PS (115 kW; 154 hp).

Also, a model for east Africa has a 2.5-liter turbodiesel with only 107 PS (79 kW; 106 hp), torque 268/2000. In Singapore, the Everest is used by Singapore Guards as a Protected Light Utility Vehicle.

A third facelifted model of the Everest was unveiled at the Manila International Auto Show in April 2013. On 29 April 2014, the third facelift Ford Endeavour was launched in India. This Endeavour features a touch-sensitive SATNAV entertainment system with Navigation Bluetooth audio control and reverse parking camera. Its manual variant comes with a 2.5-liter Duratorq TDCi paired to a five-speed manual transmission.

2006 2007 2008 2009 2010 2011

Tools & consumables needed
- Clean shop rags/paper towels
- Nitrile or mechanic gloves
- Flashlight
- Small flat-blade pick or screw driver (for removing/inspecting O‑ring or PCV valve)
- Soft-jaw pliers or rubber strap wrench (only if cap is stuck; avoid metal pliers on plastic)
- Mild brake cleaner or engine-degreaser (optional, to clean around filler)
- Replacement oil filler cap and/or cap O‑ring gasket and/or PCV valve (if worn)
- Wheel chocks (parking safety)

Safety precautions
- Work on a level surface with the parking brake on and wheels chocked.
- Engine must be OFF and cool to avoid burns from hot valve cover or pressurised oil vapors.
- Wear gloves and eye protection when cleaning oil and debris.
- Do not smoke or have open flames nearby — oil vapors can ignite.
- Avoid using metal pliers or adjustable wrenches on the plastic cap — they will crush or damage it and can cause leaks.

Step‑by‑step procedure (Mazda BT‑50 / Ford Ranger; all piston engines—location = valve cover oil filler neck)
1. Park, chock, cool:
- Park the vehicle level, engage park/handbrake, chock wheels, let engine cool to avoid burns.

2. Open bonnet and locate cap:
- Open bonnet and move to front of vehicle. The oil filler cap sits on the valve cover (top of the engine); it is typically a round twist cap labeled “Engine Oil” or with an oil can icon.

3. Clean around cap:
- Use a rag and flashlight to wipe loose dirt and debris from around the cap and filler neck. This prevents contamination when cap is removed.

4. Remove cap:
- Grip the cap by hand and turn counter‑clockwise. Most caps are hand‑threaded and will unscrew easily.
- If it’s tight, use a rubber strap wrench or soft‑jaw pliers (light pressure) — avoid metal jaws directly on plastic. Do NOT use cheater bars; excessive force can break the cap or threads.

5. Inspect cap and sealing surfaces:
- Check cap for cracks, broken retaining tabs, or a hardened/flat/damaged rubber O‑ring or gasket. Many caps have a molded rubber seal — if hard or cracked, replace.
- Inspect the filler neck threads and sealing face on the valve cover for burrs, nicks, or heavy oil sludge.

6. Inspect PCV (if applicable):
- Some BT‑50/Ranger engines use a combined filler cap/PCV assembly or the PCV valve is adjacent. Remove and inspect the PCV valve (if fitted) — a working PCV should move freely and not be clogged. Replace if stuck or contaminated.

7. Clean sealing surfaces:
- Wipe the filler neck sealing face and lower cap sealing area with a clean rag. If heavy deposits exist, use a rag dampened with brake cleaner, then dry thoroughly.

8. Replace O‑ring/PCV as needed:
- If the cap gasket/O‑ring is degraded, replace it before reinstalling the cap. If the PCV valve is faulty, fit a new one.

9. Reinstall cap:
- Thread the cap on by hand, turning clockwise until seated. Hand‑tighten until you feel resistance and a solid stop. Most caps do not require specific torque — do not over‑tighten. If cap clicks when tightened, stop at the first click.

10. Final check:
- Wipe any spilled oil from the area, start the engine, let it idle for a minute, then shut off and recheck the cap area for leaks or seepage.
- Reinspect after first drive to confirm no oil or smell of oil.

How the tools are used (brief)
- Flashlight: illuminate threads and gasket area for inspection.
- Rags: clean and keep contaminants out of the fill neck.
- Pick/flat screwdriver: gently remove old O‑ring or pry out PCV valve — use carefully to avoid scratching the sealing face.
- Rubber strap wrench / soft‑jaw pliers: provide extra grip if the cap is stubborn; apply gentle, controlled force. Never use metal pliers directly on the cap.

Replacement parts & notes
- Common replacements: oil filler cap (OEM or aftermarket), cap O‑ring/gasket, PCV valve (if integrated or adjacent).
- Buy the cap/O‑ring by VIN or engine code to ensure fit. If the cap is cracked, replace — do not attempt to repair plastic.
- No special torque tool is required; hand tightening is standard. If your workshop procedure calls for torque, consult factory service manual for the specific engine model.

Common pitfalls to avoid
- Removing cap with a dirty rag around it without cleaning the area first — allows debris into the engine.
- Using metal pliers/vice grips directly on the plastic cap — causes damage and leaks.
- Over‑tightening the cap — can strip threads or crack the cap.
- Reusing a hardened or cracked O‑ring — leads to oil seepage and vacuum leaks (PCV interactions).
- Ignoring a stuck or clogged PCV valve — leads to pressure build‑up, oil leaks, performance issues.
- Not checking for oil leaks after reinstallation — small leaks can be missed and cause smoke or odor later.

Quick checklist after job
- Cap replaced or reinstalled properly, sealed.
- Surrounding area clean, no oil residue.
- PCV valve tested or replaced if faulty.
- Recheck after short engine run and first drive.

Done.
rteeqp73

Concise theory and ordered procedure for replacing the clutch release (throw‑out) bearing on a Mazda BT‑50 / Ford Ranger (manual). This explains why each action is done and how the repair fixes the fault. Assume manual transmission; some model years use a concentric/hydraulic slave bearing (CSB) located inside the bellhousing — the same removal logic applies but replacement method differs slightly (see notes).

Principle — what the release bearing does and how it fails
- Function: the release bearing sits between the clutch release fork (or concentric slave) and the pressure‑plate fingers. When you depress the clutch pedal it permits axial movement of the pressure plate while rotating so the clutch can disengage smoothly. It must bear axial load while matching rotational speed of the input shaft to avoid friction.
- Failure modes/symptoms: noisy when pedal depressed (growl/grind), vibration, rough/discontinuous disengagement, clutch dragging or chatter. Causes: bearing wear/seizing, contamination, lack of lubrication, excessive axial load (bad fork/pivot/pilot bearing), or heat damage from slipping.
- Why replacement fixes it: a new bearing restores free rotation and correct axial movement, removing the friction/noise source and ensuring the pressure plate fingers are moved cleanly. If related components (pilot bearing, fork, pressure plate, clutch disc, input shaft splines) are damaged, replacing just the bearing may not fully restore function — you must inspect and address those too.

Quick safety notes (read first)
- Work on a level surface, use rated jackstands (never rely on a jack).
- Disconnect negative battery terminal before electrical work.
- Support engine/transmission securely when removing the gearbox.
- Use proper PPE and follow torque specs from the factory manual.

High‑level ordered procedure (with theory at each step)
1) Confirm symptoms and plan parts
- Theory: verify bearing symptoms (noise on pedal, rough disengage). Plan to replace bearing ± pilot bearing ± clutch disc/pressure plate if worn — bearing failure often indicates other wear.
- Action: source correct release bearing (or concentric slave assembly), pilot bearing, alignment tool, clutch grease, and replacement clutch if needed.

2) Prepare vehicle and safety
- Theory: isolate electrical system, prevent accidental engine start, and get safe access to underside.
- Action: park, chock wheels, disconnect negative battery, raise vehicle and support on jackstands, remove any undertrays/engine covers.

3) Drain or support fluids and remove driveline components that obstruct gearbox removal
- Theory: driveshafts, propshafts and exhaust can block gearbox removal; removing them prevents damage and allows bellhousing access.
- Action: remove propshaft / rear driveshaft segments (mark alignment), unbolt exhaust if it interferes, remove transfer case links (4x4) as required. Drain gearbox fluid only if necessary for removal location.

4) Disconnect gearshift linkage, wiring and hydraulic lines
- Theory: gearbox must be free of linkages and connectors to separate safely; hydraulic lines should be capped to avoid contamination.
- Action: disconnect gear selector linkage/rods, unplug speed/neutral sensors, remove starter motor for bellhousing access. If an external slave cylinder is used, unbolt it and secure hose to prevent fluid loss; if hydraulic CSB is used, disconnect hydraulic line and be ready to replace/bleed.

5) Support engine and transmission
- Theory: when bellhousing bolts are removed the transmission will be unsupported; the engine and gearbox must remain properly aligned and supported to avoid engine tilt or damage.
- Action: support engine with an engine support bar or jack under oil pan with a block (soften load). Support bellhousing with transmission jack.

6) Remove gearbox mounting hardware and separate gearbox from engine
- Theory: detaches transmission so you can access the clutch assembly in the bellhousing.
- Action: remove crossmember/transmission mount bolts, remove bellhousing bolts progressively in a star pattern, slide gearbox straight back on input shaft while supporting it, lower gearbox out of the vehicle.

7) Inspect clutch components and confirm bearing condition
- Theory: a noisy bearing often indicates clutch disc/pressure plate/pilot bearing wear; replacing the bearing alone when other parts are bad will cause repeat failure.
- Action: inspect pressure plate for heat spots/cracks, measure clutch disc lining thickness, inspect pilot bearing/bushing in flywheel, check input shaft splines and pilot bore for wear. Replace clutch assembly or flywheel resurfacing if required.

8) Remove old release bearing and associated hardware
- Theory: remove the worn component so a new one can be fitted; note orientation and any retaining clips or guides.
- Action: if fork style: remove retaining clip and slide bearing off fork, inspect fork pivot and pivot ball for wear and replace/grease as needed. If concentric slave: unbolt the CSB from the bellhousing and remove with its seals/lines.

9) Prepare mating surfaces and lubricate correctly
- Theory: contamination or wrong lubrication causes premature wear. Splines need light grease; friction surfaces must remain clean.
- Action: clean bellhousing and input shaft; apply small amount of high‑temperature moly grease to input shaft splines (only where the clutch hub slides). Do NOT grease the clutch friction surfaces or pressure plate fingers. Grease fork pivot lightly if recommended.

10) Install new release bearing (and any replaced parts)
- Theory: correct fit and orientation ensure axial travel and rotation are correct, eliminating previous drag/noise.
- Action: fit new bearing/CSB exactly as OEM orientation, secure retaining clips, fit fork or slave cylinder and confirm free rotation/movement by hand. Replace pilot bearing if worn.

11) Reinstall gearbox and torque bolts to spec
- Theory: correct alignment and torque maintain preload and prevent leaks or misalignment of input shaft/pilot bearing.
- Action: use alignment tool to center clutch disc if you replaced clutch. Raise gearbox, slide onto input shaft straight without forcing, start bellhousing bolts by hand, torque to factory values (consult manual), reinstall transmission mount and crossmember.

12) Reconnect hydraulic lines, wiring, driveshafts, exhaust and other removed items
- Theory: restore all disconnected systems and prevent air ingress in hydraulic lines.
- Action: reconnect external slave cylinder/hydraulic lines, electrical connectors, starter, shift linkage, driveshafts, exhaust. Refill gearbox if drained.

13) Bleed clutch hydraulic system and check pedal free play
- Theory: air in hydraulic lines reduces actuation and can cause incomplete release. Proper pedal travel ensures correct engagement/disengagement.
- Action: bleed the clutch until firm pedal, set pedal free play to spec.

14) Test before driving and final checks
- Theory: road test confirms the noise and disengagement problem resolved and ensures no leaks or abnormal vibrations.
- Action: start engine, test clutch engagement in neutral for noise, check gear shifts at low speed, perform road test and listen/feel for any residual issues. Recheck fasteners and fluid levels after first drive.

Specific notes for concentric slave bearing (CSB) models
- If vehicle uses a CSB it is replaced as an assembly inside the bellhousing. The procedure still requires gearbox removal; you likely replace the entire CSB and then bleed the system. Inspect mounting surface and bellhousing bore for scoring; replace seals if damaged. CSBs can fail hydraulically (leak) or mechanically (bearing wear).

How the repair fixes the fault (summary)
- The worn/seized bearing was generating friction/noise and preventing full smooth axial movement of the pressure plate fingers. Replacing it removes the damaged rotating interface, restoring low‑friction rotation and correct travel. This eliminates pedal‑depressed noise and restores consistent disengagement. Replacing or resurfacing worn mating parts (pilot bearing, pressure plate, clutch disc) prevents immediate re‑failure since damaged neighbors can overload a new bearing.

Common pitfalls to avoid
- Reusing an obviously worn pressure plate or clutch disc — leads to rapid re‑failure.
- Over‑greasing splines or contaminating friction surfaces — leads to slipping.
- Not supporting engine properly — causes misalignment/damage.
- Not bleeding hydraulic system thoroughly — leads to poor disengagement.

Torque and specification reminder
- Always use factory torque values and procedures from a workshop manual for your exact year/model. This guide gives order and theory, not exact torque numbers.

That is the concise, ordered theory + procedure.
rteeqp73

Goal — Replace the front strut top mount (and bearing if fitted) on a Mazda BT-50 / Ford Ranger safely and correctly. This guide is a workshop-style, step-by-step manual written for a beginner mechanic. It covers theory, all components, tools, safety, removal, replacement, reassembly, checks, likely failure modes, and common pitfalls. Read the safety notes and the whole procedure before starting.

SUMMARY OF WHAT A STRUT MOUNT IS AND WHY YOU REPLACE IT
- Function: The front strut assembly (MacPherson strut) combines a damper (shock absorber) and a coil spring into one unit that supports the vehicle’s weight, controls suspension travel, and keeps the tire on the road. The strut mount sits at the top of the strut where it attaches to the body/strut tower.
- Two jobs:
1. Bear the vertical load and isolate road noise/vibration (rubber cushion).
2. Provide a rotational interface (bearing or low-friction plate) so the strut can pivot when you steer.
- Analogy: The strut mount is like a pillow with a lazy-susan built into it — it cushions and lets the strut rotate smoothly.
- Why replace: mounts wear/tear — rubber deteriorates, bearings seize or growl, studs corrode or break. Symptoms: thumping/clunking over bumps, steering creak/grind when turning, excessive vibration, uneven tyre wear, clunk on rebound, or noise only when steering/parking.

COMPONENTS YOU WILL SEE / WORK WITH
- Strut assembly: shock/damper cylinder and piston rod, coil spring, spring seats.
- Top mount (strut mount): rubber isolator with a central bore and a metal plate; may include an integrated bearing or separate bearing plate.
- Strut top nut: secures strut to the mount (on the strut shaft).
- Strut tower / mounting studs & nuts: studs protruding through the body (engine bay) that secure the mount to the body (or bolts on some variants).
- Dust boot/bellow: protects strut shaft from dirt.
- Bump stop (jounce bumper): limits travel to prevent bottoming out.
- Lower strut bolts: bolts that attach the bottom of the strut to the steering knuckle.
- Sway-bar end link: often connects close to the strut; may need removal.
- Brake caliper & carrier: brake hose/bracket and caliper will need to be moved/retained clear.
- ABS sensor wiring/bracket: move out of the way.
- Tie-rod end / ball joints (may need partial disconnect on some jobs).
- Spring compressor: external tool to safely compress the coil spring while changing mount.
- Misc fasteners: various washers, nuts, spacers.

TOOLS & CONSUMABLES
- Basic: 3/8" & 1/2" ratchets, breaker bar, sockets (10–32 mm / 3/8–1¼"), combination wrenches.
- Specialty: good-quality twin-coil spring compressor (internal or external clamps rated for strut springs), torque wrench, impact gun optional.
- Supporting: hydraulic trolley jack, strong axle stands (2 per side if working both sides), wheel chocks, shop rags.
- Removal tools: punch/drift, hammer, pry bar, pliers, PB Blaster / penetrating oil.
- Replacement parts: new strut mount(s) (and bearing if separate), new top nuts (replace self-locking nuts), possibly new lower bolts if damaged.
- Consumables: anti-seize or threadlocker per workshop manual, grease (for bearing if required), gloves, eye protection.
- Alignment: wheel alignment afterward — required.

SAFETY FIRST (non-negotiable)
- Work on a flat level surface, chock rear wheels.
- Use a quality spring compressor and know how to use it — compressed springs store life‑threatening energy.
- Jack the vehicle at manufacturer jacking points; use rated jack stands; never rely on the jack alone.
- Always wear eye protection and gloves.
- If you are unsure about the spring compressor or any step, stop and ask a professional — do not improvise.

INSPECTION PRIOR TO DISASSEMBLY
- Identify the exact mounting fasteners in the engine bay (location of top nuts).
- Check condition of other suspension parts: ball joints, tie rod ends, sway bar links, brake lines for wear — replace if needed while you’re there.
- Note and mark the orientation of strut (cam bolts/position) if the lower mount has eccentric bolts that affect alignment.

WORKFLOW — STEP-BY-STEP
Estimated time: 1.5–3 hrs per side for a beginner (longer for your first time). Do one side at a time.

A. Preparation
1. Park on level ground, engage park or first gear, chock rear wheels.
2. Loosen front wheel lug nuts slightly while the car is on the ground.
3. Raise front with trolley jack at the correct jacking point; place axle stands under the subframe or recommended support points. Lower vehicle onto stands securely.
4. Remove the front wheel.

B. Access and disconnected items
5. Remove/loosen any splash shields or inner fender liners if they block access to the strut tower nuts.
6. Support the lower control arm with a jack or block-of-wood-on-jack to keep the knuckle from dropping when you release the lower strut bolts.
7. Remove / unbolt the brake caliper (do not let it hang by the brake hose — use a bungee or wire to hang it on the body) and, if necessary, remove the brake carrier to get access. Also move ABS sensor wiring and brake hose bracket off the strut (retain bolts).
8. Disconnect sway-bar end link from the strut if it attaches to it.
9. If needed for access, separate the tie-rod end from the steering knuckle or the lower ball joint (use a tie rod puller or a hammer blow to the side of the knuckle); be careful not to damage castellated nuts or cotter pins — replace if required.
10. Remove the lower strut-to-knuckle bolts: these are heavy bolts (often 19–22 mm). You may need penetrating fluid. Support the knuckle while removing the lower bolts and back the strut out a little from the knuckle.

C. Release the strut from the top
11. In the engine bay (strut tower), locate the three top nuts holding the mount. These are accessible from above. Back them off but do not remove until the lower is supported (we already supported).
12. Remove the lower bolts fully while supporting the knuckle, and lower the knuckle enough to allow the strut to drop slightly so the top can be freed. Then remove the top nuts and lower the entire strut assembly out of the vehicle.

D. Compress the spring and disassemble the strut
13. Clean the strut assembly to reduce grit and allow a good visual inspection.
14. Fit the twin-coil spring compressor per the tool instructions — position compressors opposite each other and on the spring coils, not on the spring seat or the rubber parts. Tighten slowly and evenly until spring tension is relieved from the top mount. Confirm top nut can be removed by hand while the compressor holds the spring.
15. Remove the nut on the strut rod (retaining nut). This nut is often a self-locking nut — replacement is recommended. You may need to hold the strut rod with an Allen key or a special holding tool inserted into the top of the rod; some rods have flats. Use correct methods to prevent rotation damage.
16. Remove top mount, bearing, dust boot, and bump stop. Inspect components: rubber condition, bearing smoothness, studs integrity.
17. If replacing the entire mount assembly, discard old mount and clean mating surfaces on the strut.

E. Install new mount
18. Install new bump stop and dust boot if your kit has them, then place the new mount and bearing on the strut shaft in the correct orientation (some mounts have a body-side orientation or bearing that must face the correct direction—check part instructions).
19. Fit new top nut and lightly tighten while compressed. Torque later following the correct sequence once spring is safely seated and vehicle is at ride height if required by the manual (some manuals specify torque at ride height for certain fasteners).
20. Carefully decompress the spring slowly and evenly until the spring seats into the new mount. Ensure spring is seated correctly in both upper and lower seats (indexing clip or paint marks may help).
21. Check that the bearing spins freely and the mount sits flat.

F. Reinstall strut assembly
22. Lift the strut assembly back into the strut tower. Ensure proper alignment of studs and that any wiring harnesses or hoses are routed correctly.
23. Refit top nuts by hand to avoid cross-threading; tighten them evenly.
24. Reattach the strut to the knuckle with the lower bolts; snug both lower bolts but do not fully torque until vehicle is at ride height unless the manual says otherwise.
25. Reattach sway bar link, brake hose bracket, ABS sensor, tie-rod or ball joint connections. Reinstall brake caliper and torque brake hardware to spec.
26. Reinstall splash shield / inner liner and wheel.

G. Torqueing and final checks
27. Lower the vehicle to the ground so suspension is loaded to ride height. Many manufacturers specify final torques for lower strut bolts with the vehicle at ride height; check the workshop manual. If manual does not specify, torque lower fasteners to the manufacturer-specified values (commonly significant torque — 100–200 Nm range for lower strut bolts; top nut typically 50–100 Nm). Important: verify exact specs in the appropriate service manual for your exact year/model.
28. Torque top nuts to spec. If new self-locking nut was installed, ensure it’s tightened to recommended torque.
29. Re-torque wheel lug nuts to the correct specification.
30. Start vehicle, turn steering lock‑to‑lock and listen for unusual noises. Ride the car at low speed and test a few bumps to confirm quiet operation.
31. Get a full front-end alignment immediately after this job — replacing the strut or top mount can change camber/toe.

TYPICAL TORQUES (EXAMPLES — MUST BE VERIFIED FOR YOUR VEHICLE)
- Wheel nuts: typical 110–140 Nm
- Strut top nut: typical 65–95 Nm
- Lower strut to knuckle bolts: typical 120–200 Nm
- Sway bar link: 40–90 Nm
These are example ranges only. Use the factory service manual or vehicle data for exact torque values.

WHAT CAN GO WRONG (AND HOW TO AVOID IT)
- Spring compressor failure or incorrect use: can release the spring violently. Always use rated twin compressors and compress symmetrically. Do not use one compressor only.
- Not supporting knuckle: knuckle can fall and damage brake hoses or sensors; always support with a jack.
- Broken studs or seized nuts: use penetrating oil and heat if needed, but heat near brakes and ABS wiring is risky. Replace damaged studs.
- Incorrect reassembly orientation: incorrect mounting or bearing orientation can cause bad steering feel or premature wear. Observe marks and part shapes.
- Not replacing wear components in pairs: do both sides because old/new mismatch changes handling. Replace both front mounts and, ideally, both struts if one is worn.
- Not doing alignment: causes uneven tyres and poor handling. Always align afterward.
- Over-torquing or under-torquing: use a torque wrench and the correct spec.

INSPECTION AFTERWARD
- Visual: mount seated properly, no contact between boot and body, no pinched hoses.
- Road test: listen for clunks or grinding while turning and over bumps.
- Check for fluid leaks from the damper — strut replacement or mount replacement is an opportunity to replace the strut if it leaks or is badly worn.

REPLACEMENT STRATEGY
- Replace mounts in pairs (both front) for even feel.
- If strut damping is weak or leaking, replace the strut as well — mounting a new mount on a worn strut will not restore ride quality.

COMMON TROUBLESHOOTING NOTES
- If you still hear creak when steering after replacing mount, check bearing (maybe seized), steering rack mounts, or anti-roll bar bushes.
- If steering returns poorly after replacement, check that bearing is installed correctly and that the mount is not preloaded or misaligned.
- If vehicle pulls after replacement, get alignment.

PRACTICAL TIPS
- Photograph the original assembly before disassembly for reference.
- Clean mating surfaces before new part installation.
- Replace top nut and any single-use fasteners with new ones.
- Use anti-seize on exposed studs where corrosion is likely, unless manual says otherwise.
- Work methodically: remove small obstacles (liners, clamps) rather than forcing parts.

END NOTES
- This job is routine but involves high-energy springs and suspension components that are critical to vehicle safety. If you are not comfortable using a spring compressor or suspect stuck bolts or damaged components, have a professional do the job.
- Always refer to the factory service manual for your exact model year and VIN for correct torque values, specific instructions, and any model-specific details.

No further questions.
rteeqp73
