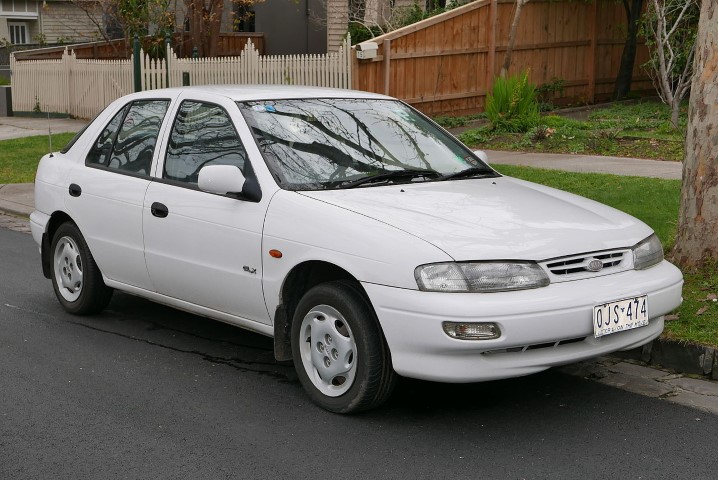

The first-generation Kia Sephia is the first car that was actually designed by Kia with their own chassis. Engines available were the B-series engines, with the 1.5-liter rated at 59 kilowatts (79 hp), the 1.6-liter 78-kilowatt (105 hp), and the 1.8-liter BP engine at 91-kilowatt (122 hp) from 1994. The car was presented in September 1992 to replace the aging Capital, which was rapidly losing market share. The Sephia proved quite successful, selling over 100,000 in its first full year in the home market (1993). A total of 472,920 Sephias were sold over the life of the original Sephia. In the United States, sales began in late 1993 for the 1994 model year. This was the first Kia to be exported to the US. An update came in the 1995 model year when grilles and taillights were restyled and all US-market Sephias except California-market RS/LS models got upgraded to the new 1.8-liter DOHC four-cylinder BP engine as used in the Mazda Familia (BG). Kia licensed the engine design from Mazda, but manufactured it themselves.

It was launched in Europe in the spring of 1994 as the Kia Sephia in some markets and in others, including the United Kingdom, as the Kia Mentor. It was similar in size to best-selling European small family cars like the Ford Escort, but was priced similarly to smaller cars like the Ford Fiesta. Its key rivals in Europe were budget-priced Eastern European and Far Eastern imported products including the Daewoo Nexia, Hyundai Accent, Proton Persona and Skoda Felicia. In Brazil, the car went on the market in March 1994. It was only offered with the 1.5-liter twin cam engine with 112 PS (82 kW) and was considered a competitor to the domestically built Chevrolet Omega and Volkswagen Santana. To make a car suitable for the Brazilian market, Kia went through the trouble of studying Brazilian road surfacing and importing 1,000 litres (260 US gal) of Brazilian gasoline to properly program the engine management. Kia presented a conceptual convertible version of the first generation Sephia, which was named "Kia Sephia Cabrio" at some auto shows.

### Connecting Rods on a Kia Mentor Sephia: A Beginner’s Guide

Connecting rods are crucial components in the engine of your Kia Mentor Sephia. They connect the piston to the crankshaft, converting the linear motion of the piston into the rotational motion of the crankshaft. This process is essential for the engine's power generation.

#### Theory Behind Connecting Rods

1. **Function**: The engine operates by burning fuel, which creates pressure in the combustion chamber, pushing the piston down. The connecting rod transfers this motion to the crankshaft, allowing the vehicle to move.

2. **Components**:
- **Connecting Rod**: A metal rod that connects the piston and crankshaft.
- **Piston**: Moves up and down in the cylinder.
- **Crankshaft**: Converts linear motion from the piston into rotational motion.
- **Cap**: The top part of the connecting rod that connects to the piston.
- **Big End**: The part of the connecting rod that attaches to the crankshaft.

3. **Importance**: If a connecting rod fails, it can cause serious engine damage, such as a thrown rod or damaged crankshaft, leading to costly repairs or complete engine failure.

#### Common Issues with Connecting Rods

1. **Wear and Tear**: Over time, connecting rods can wear out due to friction and heat.
2. **Oil Starvation**: Insufficient lubrication can cause connecting rods to overheat and fail.
3. **Detonation**: Abnormal combustion can cause excessive force on the connecting rods, leading to bending or breaking.

### Tools and Materials Needed

- **Tools**:
- Socket set (metric)
- Torque wrench
- Piston ring compressor
- Engine hoist (if removing the engine)
- Screwdriver set
- Oil (engine oil for lubrication)
- Clean cloths
- Gasket scraper

- **Materials**:
- New connecting rods
- New rod bearings
- New piston rings (if necessary)
- New head gasket (if removing the cylinder head)

### Steps to Replace Connecting Rods

1. **Safety First**:
- Disconnect the battery.
- Ensure the car is on a level surface and secure it with jack stands.

2. **Remove the Engine** (if necessary):
- Disconnect all electrical connections and hoses.
- Remove the engine mounts.
- Use the engine hoist to lift the engine from the vehicle.

3. **Disassemble the Engine**:
- Remove the cylinder head by unscrewing the bolts in a crisscross pattern.
- Take off the intake and exhaust manifolds.
- Remove the oil pan to access the crankshaft and connecting rods.

4. **Remove the Old Connecting Rods**:
- Carefully inspect for any debris and clean the area.
- Loosen the bolts on the big end of each connecting rod.
- Gently slide the connecting rod off the crankshaft and remove the piston from the cylinder.

5. **Install New Connecting Rods**:
- Lubricate the new rod bearings with engine oil.
- Slide the new piston onto the connecting rod and use a piston ring compressor if needed.
- Insert the piston back into the cylinder and connect the rod to the crankshaft.
- Torque the bolts on the big end of the connecting rod to the manufacturer’s specifications.

6. **Reassemble the Engine**:
- Replace the oil pan, ensuring the gasket is seated properly.
- Reattach the cylinder head and torque the bolts in a crisscross pattern.
- Reinstall the intake and exhaust manifolds.
- Reconnect all hoses and electrical connections.

7. **Reinstall the Engine**:
- Lower the engine back into the vehicle and secure it with the mounts.
- Reconnect the battery.

8. **Final Checks**:
- Check oil levels and top off if necessary.
- Start the engine and listen for any unusual noises.

### Conclusion

Replacing connecting rods is a complex process involving various engine components. Understanding how they operate and the potential issues can help prevent serious engine damage. By following the steps carefully and using the right tools, you can successfully replace the connecting rods in your Kia Mentor Sephia. Always refer to the vehicle’s service manual for specific torque specifications and procedures.
rteeqp73

No response from ChatGPT API: {
"error": {
"message": "You exceeded your current quota, please check your plan and billing details. For more information on this error, read the docs: https://platform.openai.com/docs/guides/error-codes/api-errors.",
"type": "insufficient_quota",
"param": null,
"code": "insufficient_quota"
}
}

rteeqp73

Short summary first: main (crankshaft) bearings are thin half-shells that let the crank rotate smoothly on a film of oil. Replacing them is an engine-level job: you remove the oil pan, main caps and often the crank (and usually the pistons/rods or the whole engine from the car), measure journals and clearances, install correctly sized new shells, torque caps in the right sequence, check endplay and oil clearances, prime the oiling system and test. Below is a workshop-style, step‑by‑step explanation with every component described, the theory behind the repair, common failure causes and what can go wrong.

1) Theory — what main bearings do and why they fail
- Function: Main bearings support the crankshaft inside the block, keeping it concentric while allowing it to spin. The bearing surfaces are two thin half-shells (upper and lower) that ride on a hydrodynamic film of oil. When the crank turns, the oil forms a pressurized wedge between journal and shell — like a water cushion under a flatboat — carrying the load without metal-to-metal contact.
- Why you replace them: Bearings wear or get damaged when the oil film fails (oil starvation, dirty oil, thin/burned oil), when there is contamination (metal particles), when journals are scored, or when mechanical problems (loose caps, bad alignments, overheated oil) occur. Symptoms: loud knocking from the bottom end, low oil pressure, metal flakes in oil/filter, rapid oil pressure drop or engine seizure.
- Hydrodynamic principle: At speed, the crank drags oil into a narrowing gap and creates pressure that centers the crank. If gaps are too large (excess bearing wear) oil pressure falls; if too small (wrong bearing size, improper install) risk of seizure at startup increases.

2) Key components — detailed descriptions
- Engine block (main bearing saddles): machined seats in the block that house the upper bearing shells. They locate the crank and transmit loads to the block.
- Crankshaft: machined steel shaft with journals (main and rod journals). Main journals are supported in the block by the main bearings. Check for scoring, taper, out‑of‑round.
- Main bearing shells (upper and lower halves): replaceable thin shells made of steel backing with soft bearing material (lead-tin, tri-metal). They have oil grooves and holes, and usually a locating tang to fit into the block/cap. They come in standard and undersize (for ground crank journals).
- Bearing caps (main caps): bolted to the block to clamp lower shells in place. They index so caps are returned in same position. Main cap bolts/studs clamp them.
- Main cap bolts/studs: torque to clamp the caps. Many are torque-to-yield/stretch bolts and must be replaced when removed.
- Thrust washers (thrust bearings): control crankshaft axial endplay. Located on a specified main journal (usually mid or adjacent). They are flat or grooved, and take axial loads from the transmission.
- Oil pump: supplies pressurized oil to bearings; inspect/replace if contaminated or worn. Low pump output = bearing starvation.
- Oil galleries and passages: drilled paths through the block/crank that deliver oil to bearings and rods. Must be clean and unblocked.
- Rear main seal / front seal: keep oil from leaking where crank exits block; often replaced when servicing mains.
- Piston rods and rod bearings: rod bearings connect rods to rod journals; removing the crank often means removing rods/pistons.
- Oil pan: removable sump that gives access to main caps and oil pickup.
- Plastigauge (or micrometer and bore gauge): measurement tools to check bearing clearances.
- Dial indicator/endplay gauge: measures crank axial play (thrust).
- Torque wrench, engine hoist/stand, cleaning brushes, solvent, assembly lube: essential tooling/consumables.

3) Tools and parts you’ll need (minimum)
- Workshop manual for the specific Kia Mentor/Sephia engine (specs, sequences, torque values, journal sizes)
- Engine hoist and stand or ability to work safely in-car with jackstands
- Socket set, breaker bar, torque wrench
- Plastigauge (multiple widths), micrometer (0.001 mm or 0.0001 in resolution) and inside mic or bore gauge (if measuring bearing bores)
- Dial indicator (for endplay)
- New main bearing set (upper + lower shells) — install correct part number and matching shell halves; new thrust washers if required
- New rod bearings if removing pistons/rods
- New main cap bolts if torque-to-yield (recommended)
- Assembly lube (engine oil for break-in is not sufficient while assembling)
- Solvent, lint-free rags, compressed air (blow oil galleries)
- New rear/main seals and gaskets; new oil pan gasket
- Plastigauge instructions and scale
- Optional: crankshaft grinder/machine shop access if journals damaged

4) Preparatory checks — inspection before deciding to replace bearings
- Oil pressure check and oil analysis (metal in oil = strong sign of bearing wear)
- Remove oil pan, inspect bearings visually for scoring, discoloration, embedded particles, flaking of lining, flattened areas
- Measure bearing clearance: either with plastigauge (quick) or by mic and bore gauge (most accurate)
- Measure crank journals for taper and out-of-round. If journals scored beyond service limit, crank needs grinding or replacement. If journals only lightly worn and within service limits, new standard bearings may suffice.

5) Step-by-step workshop procedure (typical full rebuild path)
Note: follow engine-specific manual for torque values and tightening sequences. Replace bolts that are specified single-use.

A. Preparation and removal
- Disconnect battery, drain engine oil and coolant.
- Remove accessories blocking removal: exhaust, intake (if needed), timing belt/chain cover and timing components if they block crank removal, oil pan, oil pickup.
- Remove oil pump if needed (inspect gears/screen).
- Remove pistons/rods or at minimum remove rod caps to free crank — commonly you remove the cylinder head and push pistons out through top, or remove rod caps in place if staying in the block and removing crank.
- Label rod caps and journals to maintain orientation.

B. Remove crankshaft
- Remove main cap bolts in correct reverse sequence gradually to avoid binding.
- Remove main caps and set them in order and orientation (caps are machined to mate with specific block saddles).
- Lift crankshaft free (use two people or hoist) and place on clean bench. Inspect journals for scoring, measure diameters.

C. Measure everything
- Measure crank journals with micrometer in several places (front/middle/rear) and compare to factory specs: check for taper and out-of-round.
- Measure main bearing bore in block (inside diameter) with bore gauge if you have the tool or remove old shells and use micrometer method to calculate clearance.
- If you don’t have bore gauge, use plastigauge for quick clearance check (place narrow strip of plastigauge across journal, install new lower shell and cap and torque to spec, then remove cap and measure width against plastigauge scale).
- Target oil clearance: typical small 4-cyl engines ~0.025–0.08 mm (0.001–0.003") depending on engine and bearings — get exact spec from manual. If clearance > spec, use undersize bearings (or grind crank for next undersize). If journal out-of-round beyond tolerance, crankshaft machine work needed.

D. Cleaning and preparation
- Thoroughly clean block saddles, oil passages, and cap mating surfaces. Remove debris and old gasket/sealant. Blow passages with compressed air.
- Check main cap fit / surfacing; caps must seat squarely.

E. Installing new bearings and crank
- Check locating tangs and orientation marks on bearing shells. Bearings usually have an oil groove or notch; line up oil holes/grooves with block oil passages. Do not rotate shells.
- Apply thin coating of assembly lube to bearing surfaces (do not use engine oil alone as final antifriction).
- Install upper shells in block saddles, lower shells into caps.
- Carefully lower crankshaft into block. If using thrust washers, install them correctly on the specified journal. Check that thrust faces match block features.
- Install main caps in order and hand-thread bolts. Make sure caps seat properly and are not cocked.
- Torque main cap bolts in the factory sequence in stages to final torque using torque wrench. If bolts are torque-to-yield, use new bolts and follow angle/two-step torque procedure as specified.

F. Checking clearances and endplay
- If using plastigauge: after torquing, remove caps and measure plastigauge width — read against supplied scale and confirm clearance within spec. Replace shells after plastigauge test (do not reuse plastigauge).
- Measure main bearing clearance using micrometer/bore gauge for best accuracy.
- Measure crankshaft endplay (axial movement) with dial indicator: put indicator tip on a stationary part of crank, push crank forward/backward and note movement. Compare to spec; adjust thrust washers if out of spec (different thickness or replace).
- Spin crank by hand — should rotate smoothly with slight resistance from seals/gaskets. No heavy binding.

G. Reassemble remainder
- Reinstall oil pump, oil pickup and screen (replace pickup O-ring/gasket if any). Ensure pump gears and clearances within spec.
- Replace rear main seal and front seal using proper tools — seals pressed squarely to avoid leaks.
- Reinstall pistons/rod caps with new rod bearings (if removed). Torque rod bolts as specified.
- Reinstall timing components, cylinder head, gaskets, and oil pan with new gasket/sealant.
- Replace oil filter and fill with clean engine oil. Prime system: manually rotate oil pump or crank engine without spark/compression (disengage ignition starter or use starter briefly while blocking fuel/injection) according to manual to build oil pressure before first start. Alternatively, use an oil pump priming tool or crank by hand while cranking to build pressure.
- Refit exhaust/intake accessories.

H. First start and break-in
- Start engine and immediately check oil pressure and listen. Oil pressure should come up quickly and idle stable. Watch for leaks (rear seal, oil pan).
- Keep rpm low for first 15–30 minutes; avoid heavy load. Monitor oil pressure and temperature. Re-torque head/main bolts only if specified by manual (some engines require recheck after warm).
- Change oil after break-in period (some recommend 500–1000 km) to remove any wear particles.

6) What can go wrong — common mistakes and failure modes
- Incorrect bearing orientation: bearings have tangs / notches — installing upside down or rotated blocks oil flow and causes rapid failure.
- Wrong bearing size: using standard when undersize required or mixing sizes across journals leads to wrong clearance.
- Dirty assembly: any grit or metal flakes trapped will cut bearing surfaces within minutes. Cleanliness is paramount.
- Improper torquing: under-torqued caps allow movement and wear; over-torqued bolts (or reuse of stretch bolts) can distort bearing bores and cause premature failure.
- Not replacing torque-to-yield bolts: reuse can fail under load.
- Not checking crank journals: lightly scored journal may look OK but may need grinding; reusing damaged crank causes immediate bearing failure.
- Not checking/repairing oil pump or galleries: a new bearing on an old clogged pump still starves for oil.
- Incorrect thrust washer installation: incorrect endplay leads to transmission/backlash problems, seal failure and bearing wear.
- Not priming oil: first start dry leads to immediate scuffing.
- Not using assembly lube: initial minutes are most critical; lack of lube risks scoring.
- Cap misorientation: caps must be installed in original position and orientation; swapping flips bores/surfaces and causes misalignment.
- Not checking clearances: relying on visual inspection only — too loose or too tight clearances damage bearings quickly.

7) When you must send the crank to a machine shop
- Deep scoring, pitting, excessive taper or out-of-round beyond service limit.
- If journals need undersize grinding. Machine shop will grind journals to standard undersizes and you will use matching undersize bearings. They can also line-bore main saddles if caps/block misaligned.
- If main cap surfaces are damaged or block saddles are worn, line boring or machining may be necessary.

8) Practical tips and analogies
- Analogy: Bearings are like a delicate pancake of soft metal around the crank. The oil is the syrup that keeps the pancake from touching the metal plate (crank). Too thin or dirty syrup = pancake tears.
- Keep everything immaculately clean: cover open oil galleries with tape while working, wipe hands and tools frequently.
- Organize caps and bolts in order they came off; number them so each cap returns to its original place and orientation.
- Replace main bolts if the manual says so — they stretch and won’t hold correct clamp if reused.
- Use assembly lube liberally on bearings during assembly; it’s cheap insurance.
- If unsure about journal condition, measure accurately and if in doubt send crank to a shop — a cheap bearing replacement won’t help a bad crank.

9) Final checklist before first start
- All bolts torqued to correct spec and sequence.
- New bearings installed in correct orientation and checked with plastigauge/micrometer.
- Thrust endplay within spec.
- Oil pump and pickup clean and secured.
- All oil passages clear and cam/rod bearings checked if applicable.
- New seals fit correctly.
- Engine primed with oil and filter replaced.
- No foreign material in engine; everything torqued and gaps cleaned.

This procedure assumes a basic mechanical skill level and access to a bench and measurement tools. Exact torque numbers, clearances and sequences vary by engine year and variant — use the Kia Mentor/Sephia workshop manual for the precise figures and journal size limits for your engine. Following the steps above and observing cleanliness, correct parts and measurement will give you a reliable rebuild of the mains.
