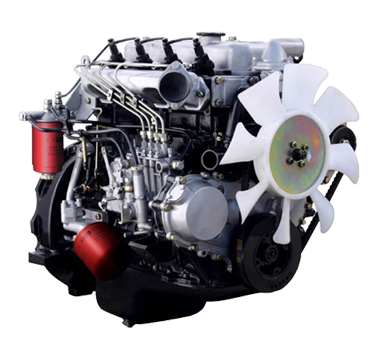

Compact, practical walkthrough for a beginner mechanic — how the valve system works on Isuzu 4BB1 / 4BD1 / 4BDIT / 6BB1 / 6BD1 / 6BD1T / 6BG1 / 6BG1T engines, what each component is, why valve work is needed, how to do it step‑by‑step, what can go wrong, and tips to avoid mistakes. Follow this as a general workshop guide — always cross‑check the Isuzu factory service manual for exact torque values, clearances and limits for your engine model.
WHAT THE VALVE SYSTEM DOES (simple theory + analogy)
- Purpose: Valves let fresh air/fuel (or air in diesel) into the cylinder (intake valve) and let exhaust gases out (exhaust valve) at the right time while sealing the combustion chamber during compression and power strokes.
- How it works: The camshaft pushes lifters/tappets → pushrods or rocker arms (depending on design) → rocker arm pivots to push the valve stem down against spring pressure, opening the valve. When the cam lobe passes, the spring closes the valve, sealing the seat.
- Analogy: Think of each valve as a spring-loaded door in a hallway. The cam is a person that nudges the door open at a precisely timed moment; the spring closes it when the person moves on. If the door doesn’t seal or the hinge is loose, the hallway leaks pressure/smoke.
WHY YOU’D SERVICE THE VALVES
- Symptoms that indicate valve work:
- Low compression on one or more cylinders (confirmed by compression or leak‑down test).
- Excessive blue/white smoke (oil burning past valve seals) or black smoke (diesel combustion problems, but valves can affect).
- Poor running, loss of power, misfires or hard starting.
- Ticking or clattering valve noise (excess lash or worn components).
- Excessive oil consumption or fouling of plugs/injectors.
- Common underlying causes:
- Worn valve seats or faces — poor sealing.
- Valve stem wear or oversized stem‑to‑guide clearance — valve wobble and leakage.
- Burnt valve head or seat from high temperatures or poor seating.
- Broken or weak valve springs — valve float, mis-timing of closure.
- Cracked or damaged rocker arms, cam lobes, lifters.
- Hardened carbon deposits or sticky valves due to oil or poor running.
- Bent valves when timing belt/chain failure allowed piston/valve contact.
KEY PARTS (detailed)
- Valve (head + stem): steel component that seals on the valve seat; intake and exhaust valves differ (exhaust handles higher temps).
- Valve head face & margin: the sealing surface; margin is the thin edge at the head.
- Valve stem: the long shaft sliding in the valve guide.
- Valve guide: bronze or cast iron cylindrical sleeve in head that centers the valve stem.
- Valve stem seal (rubber/lip seal or positive seal): prevents oil from running down the stem into the combustion chamber.
- Valve seat: hardened ring in cylinder head where valve face seals. May be integral or inserted.
- Valve spring: returns valve to closed position; has free length and specific rated pressure at specified compression.
- Retainer & keepers/locks (collets): hold the spring on the valve stem.
- Spring seat/washer: sits under retainer or on head.
- Rocker arm / rocker shaft / fulcrum: transfers cam motion to valve (may be individual or shaft-type).
- Camshaft and cam lobe: timed to open valves; lobe profile sets lift/duration.
- Tappet/lifter: between cam and pushrod or directly under cam in OHC designs.
- Pushrod (if present): transfers motion from lifter to rocker.
- Cylinder head & head gasket: houses seats/guides and mounts to block.
TOOLS & PARTS YOU’LL NEED (basics)
- Factory workshop manual (for specs) — mandatory.
- Basic hand tools, torque wrench, breaker bar.
- Valve spring compressor (suitable for that head design).
- Magnetic pickup or small tool to handle keepers.
- Micrometer (for valve stem), inside micrometer or telescoping gauges (for guide bore), dial indicator (optional) and magnifier.
- Valve grinding/lapping tools OR seat cutter/grinder and cutters (for reconditioning seats).
- Valve guide driver/press or suitable drift and press; reamer for new guide bore.
- Valve seat cutter set or grinder for head seats.
- Valve stem seals (new), valves (if replacing), valve guides (if replacing), valve keepers, valve spring set (recommended as a set).
- Parts cleaner, compressed air, non-hardening sealer, assembly lube (engine oil), clean rags, gasket kit for head and valve cover.
- Spring tester (recommended) or a calibrated scale to compare forces.
BASIC PREP & DIAGNOSIS
1. Confirm problem with tests before pulling the head:
- Compression test: low cylinder compression suggests sealing problem.
- Leak-down test: pinpoints valves vs rings. A hissing out the intake/exhaust indicates valve leakage.
2. Inspect external: smoke, oil leaks around valve cover (indicates bad seals), rocker noise.
3. Note: valve work typically requires removing the cylinder head. Rarely can you service rocker/clearance without removing head.
DISASSEMBLY STEP-BY-STEP (general)
1. Safety: battery negative off, work on cold engine, drain coolant & remove intake/exhaust as required. Label connectors and harnesses.
2. Remove valve cover(s) and mark position of rockers/pushrods — maintain order; mark each component top/bottom and cylinder position. Use trays and labeled bags.
3. Remove rocker arms, pushrods (if applicable) and keep them in order. For shaft-type rockers, remove shaft bolts in sequence and lift rocker assembly.
4. Remove camshaft/valvetrain only if needed to remove head safely (follow manual).
5. Remove head: loosen head bolts in reverse torque sequence (do in stages). Remove head and place on clean bench.
6. Clean working area and keep parts organized.
REMOVING VALVES FROM HEAD
1. With the head on bench, rotate valves to a position where you can access springs.
2. Use the valve spring compressor to compress the spring and remove the retainer/keepers. Keep keepers in a labeled container.
3. Slowly release compressor and remove spring, retainer and spring seat.
4. Withdraw the valve, keeping note of which cylinder/position it came from. If valves are stuck, gentle tapping or penetrating oil may help — avoid damaging stems.
INSPECTION & MEASUREMENT (what to look for)
- Visual:
- Valve face: pitting, burning (glazing/rounded face), cracks, heavy carbon.
- Valve margin: should not be excessively thin or mushroomed.
- Valve stem: scoring, discoloration from heat.
- Valve seat: pitting, broken seat, improper contact pattern.
- Valve guide bore: excessive wear, ovality.
- Valve spring: broken coils, set (shorter than spec), rust.
- Measurements:
- Valve stem diameter: micrometer at multiple positions near the tip and middle.
- Guide bore I.D.: bore gauge or telescoping gauge then measure. Stem-to-guide clearance = guide I.D. minus stem O.D. Compare to spec.
- Valve face & seat contact pattern: see below.
- Spring free length and pressure (if possible): compare to spec.
If components exceed service limits → replace.
REPAIR OPTIONS & PROCEDURES
Option A — Lapping valves (minor seating irregularity)
- Use when seats and valve faces are in reasonably good shape.
- Apply valve grinding paste to valve face, insert valve into its guide, use a suction-type lapping tool or rotate valve by hand back‑and‑forth to create a uniform seat contact.
- Clean thoroughly afterwards (remove all abrasive).
- Check contact pattern across the seat: full 360° contact with uniform narrow band. If contact is partial or very narrow/wide, move to machining.
Option B — Valve seat cutting/refacing (when seats are worn)
- Use seat cutters/stone to re-profile seat to correct angle (most seats have 3-angle cuts in modern practice: e.g., 30° top, 45° seat, 60° bottom — factory spec).
- Re-machine seats to correct width and concentricity. Then cut the seating angle as specified.
- Finish with finer cutters, then lap for final seal.
- Seat width: important for heat transfer and sealing — follow manual specs; aim for even contact.
Option C — Valve guide replacement
- Why: worn guide leads to wobble and poor seat sealing, oil blow‑by.
- Method:
- Press or drive out old guide from the combustion side (heat head if recommended to expand surrounding metal; some guides are pressed from the top).
- Clean the bore and measure for proper new guide interference fit.
- Install new guide with press/drift to specified shoulder depth. Some engines require heating the head to expand bores for easier installation — follow manual.
- Ream the guide to correct I.D. to match stem O.D. (ream once; do not oversize).
- Fit valve stem seal on guide after reaming.
- After guide replacement, recheck stem-to-guide clearance.
Option D — Valve sealing replacement (valves themselves)
- Replace valves that are bent, burnt, cracked, or with welded margins.
- New valves must match exact specs and seat properly. Use new seals and test.
Valve stem seals
- Always replace seals when reassembling. Use the correct style (positive or lip).
- Install gently — don’t stretch or tear. Use a seal installer or socket of correct diameter.
Valve springs & retainers
- Replace weak or broken springs in matched sets. Check free length and installed height.
- When assembling, compress spring evenly and fit retainer and keepers; ensure keepers seat properly.
REASSEMBLY & ADJUSTMENTS
1. Clean all parts thoroughly — no grit, no old lapping compound, no debris.
2. Lubricate valve stems/lightly coat with engine oil or assembly lube.
3. Reinstall valves, springs, retainers and keepers in their original positions.
4. If lapped, final inspect seat contact and wipe clean.
5. Reinstall head with new head gasket and torque bolts in correct sequence and in steps to the specified torque (critical). Use new bolts if specified (many heads use torque‑to‑yield bolts).
6. Reinstall cam/timing components: ensure cam timing is correct relative to crank before running — wrong timing can bend valves or cause catastrophic damage.
7. If engine uses adjustable lash (screw or shim): set valve clearance (lash) to factory spec. If shims under buckets, measure and replace shim thickness to obtain clearance.
- Typical process: rotate engine to TDC for cylinder, measure clearance with feeler gauge, calculate shim required, replace shim and recheck.
8. If hydraulic lifters, ensure priming and correct oil pressure on start-up.
9. Reassemble intake/exhaust, valve cover with new gasket, reconnect hoses, fill coolant & oil if removed.
FINAL TESTS & RUN-IN
- Pre-start: Turn engine by hand through two full rotations to confirm there’s no interference and valves move freely.
- Start engine; monitor oil pressure and listen for unusual noise.
- After warm-up: re-check valve clearances if applicable, re‑torque head bolts if recommended.
- Perform compression or leak‑down test to confirm sealing.
- Break-in: For any refaced valve seats, follow warm-up and load procedures so seats and valves properly bed in.
COMMON FAILURE MODES & CAUSES (and how to avoid)
- Valve not seating / low compression:
- Cause: burnt valve/seat, pitting, improper machining, worn guides.
- Avoid by proper machining and checks, correct seat width, clean lapping.
- Valve stem wear & oil burning:
- Cause: worn guide, bad seals.
- Replace guides/seals and keep tolerances tight.
- Bent valves:
- Cause: timing belt/chain failure, hydraulic lifter collapse or piston contact.
- Avoid by maintaining timing components, replacing worn timing belts/chains early.
- Broken valve spring:
- Cause: fatigue, corrosion, incorrect spring installed.
- Replace springs in sets and test spring pressure.
- Overcut seat or wrong angle:
- Cause: aggressive machining, wrong cutter.
- Use correct cutters and angles; verify with manual.
- Poor reassembly (wrong pushrod order, loose keepers):
- Consequence: noise, sudden failure, dropped valves.
- Keep everything labeled and reassemble in original order; use magnetic pickup and careful fitment.
COMMON MISTAKES BEGINNERS MAKE (avoid these)
- Not marking pushrods/rockers — mix-up causes incorrect geometry and wear.
- Reusing valve stem seals or keepers — cheap parts to replace; failure cost is high.
- Skipping head bolt sequence & torque steps — leads to head warp or gasket failure.
- Not cleaning abrasive from lapped seats — leads to rapid wear.
- Not verifying cam timing before start — can bend valves immediately.
- Reaming guide too large or installing guide too shallow — causes leaks or seating issues.
TIPS & PRACTICAL ADVICE
- Always have a clean, well-lit bench and magnetic trays for bits. Label everything.
- Replace valve seals every time you remove valves.
- If a valve head is burned or margin is thin, replace the valve — don’t attempt a risky repair.
- If seats are badly damaged, machining by a professional valve grinder/cutter is often better than attempting hand‑lapping.
- Replace springs in matched sets; always check supplier quality for valves and guides.
- Keep a record of measurements and parts replaced — useful if problems persist.
SAFETY NOTES
- Valve springs are under tension — use proper compressor tools and eye protection.
- Work with engine cooled and batteries disconnected.
- Use torque wrench for all critical fasteners.
- Dispose of coolant and used parts responsibly.
FINAL CHECKLIST (before first start)
- All valves installed with correct seals, keepers, and retainers.
- Head torqued correctly in sequence; new gasket installed.
- Cam/crank timing verified.
- Rocker arms/pushrods in correct order and lash set.
- Cleaned debris from head/intake ports and manifold.
- New valve cover gasket installed, all sensors/hoses reconnected, coolant & oil topped.
- Rotate engine manually 2 turns, then start and monitor.
If you want a concise job sequence to follow at the bench:
1. Diagnose with compression/leak‑down. 2. Remove head (label everything). 3. Use valve spring compressor, remove valves one cylinder at a time and mark. 4. Inspect + measure valves, guides, springs. 5. Decide: lap (minor) / cut seats & reface / replace guides & valves. 6. Reassemble with new seals, set lash/timing. 7. Test and confirm leak‑down/compression good.
End of guide — follow the Isuzu factory manual for exact clearances, angles, depths and torque specs.
rteeqp73
### Transmission Fluid Flush Procedure for Isuzu 4BB1, 4BD1, 6BB1, 6BD1, 6BG1, 4BDIT, 6BD1T, 6BG1T
#### Tools and Equipment Needed:
1. **Transmission Flush Machine** (if available) or **Fluid Pump**
2. **Drain Pan** (minimum 5 quarts capacity)
3. **Socket Set** (metric)
4. **Wrench Set** (metric)
5. **Torque Wrench**
6. **Fluid Transfer Hose**
7. **Funnel**
8. **New Transmission Fluid** (specify type as per manufacturer’s recommendation)
9. **New Transmission Filter** (if applicable)
10. **Gasket/Sealing Material** (if applicable)
#### Safety Precautions:
1. **Wear Safety Glasses** to protect your eyes from fluid splashes.
2. **Gloves** should be worn to avoid skin contact with transmission fluid.
3. **Work in a well-ventilated area** to avoid inhaling fumes.
4. **Ensure the vehicle is on a flat surface** and use wheel chocks to prevent rolling.
5. **Disconnect the battery** to avoid any electrical issues while working.
#### Step-by-Step Procedure:
1. **Prepare the Vehicle:**
- Park the vehicle on a level surface and engage the parking brake.
- Disconnect the negative battery terminal.
2. **Access the Transmission:**
- Remove any undercarriage covers if necessary to access the transmission pan.
- Place a drain pan under the transmission pan.
3. **Drain Old Fluid:**
- Remove the transmission pan bolts using the socket set.
- Carefully lower the transmission pan; let the old fluid drain into the pan completely.
- Inspect the old fluid for metal shavings or debris indicating internal damage.
4. **Replace Filter (if applicable):**
- Remove the old transmission filter. Use a wrench if necessary.
- Install the new filter securely, ensuring a proper seal.
5. **Clean and Replace Gasket:**
- Clean the transmission pan thoroughly to remove old gasket material.
- If required, apply a new gasket or sealing material to the pan.
6. **Reinstall the Transmission Pan:**
- Reattach the transmission pan and torque the bolts to the manufacturer's specifications.
- Ensure there are no cross-threaded bolts.
7. **Flush the Transmission:**
- If using a transmission flush machine, connect the input and output hoses according to the manufacturer’s instructions.
- If not, use a fluid pump to push new fluid through the system by disconnecting the cooler line and routing it into a bucket.
- Start the engine and let the pump run until the fluid flowing out is clean. This may take several quarts.
8. **Reconnect Cooler Line:**
- Reconnect the cooler line to the transmission and tighten securely.
9. **Add New Fluid:**
- Using a funnel, add the new transmission fluid through the dipstick tube or fill plug as per the vehicle specifications.
- Check the fluid level using the dipstick and add fluid until the correct level is reached.
10. **Check for Leaks:**
- Start the engine and let it idle.
- Check for any leaks around the pan and cooler lines.
11. **Final Level Check:**
- With the engine running, shift through all the gears, then check the fluid level again and add as needed.
12. **Reassemble:**
- Reattach any undercarriage covers.
- Reconnect the negative battery terminal.
#### Common Pitfalls to Avoid:
- **Overfilling or Underfilling**: Always check the fluid level multiple times for accuracy.
- **Neglecting to Replace Filter**: Skipping the filter can lead to poor transmission performance.
- **Inadequate Cleaning**: Ensure the transmission pan and magnet are free of debris.
- **Not Following Torque Specs**: Over-tightening can damage the pan or cause leaks.
#### Replacement Parts:
- **Transmission Fluid**: Ensure compatibility with Isuzu specifications.
- **Transmission Filter**: Must be replaced if applicable.
- **Gasket/Sealing Material**: Replace if damaged or old.
By following these steps and precautions, you can successfully perform a transmission fluid flush on Isuzu 4BB1, 4BD1, 6BB1, 6BD1, 6BG1, 4BDIT, 6BD1T, and 6BG1T models.
rteeqp73
Tools & PPE
- PPE: safety glasses, gloves, steel-toe boots.
- Lifting: hydraulic floor jack, jack stands (rated), wheel chocks.
- Hand tools: metric socket set (6–32 mm), ratchet, breaker bar, combination wrenches.
- Torque wrench (range to cover 10–200 Nm or 7–150 ft·lb depending on bolt sizes).
- Impact wrench (air/electric) optional for seized nuts.
- Penetrating oil (PB Blaster, WD‑40 Specialist).
- Hammer, rubber mallet, cold chisel/punch.
- Pry bar(s).
- Ball‑joint / tie‑rod separator or puller (for end links if ball joint type).
- Wire brush, rag, degreaser.
- Silicone grease or approved rubber bushing grease / molykote.
- Replacement parts: anti‑roll (sway) bar (if damaged), bushings, bushing brackets/clamps (recommended), end links, mounting bolts/nuts/washers (replace corroded/hardened bolts), threadlocker (medium strength).
- Service manual or access to Isuzu torque specs for exact values.
Safety precautions (must follow)
1. Chock wheels and work on level ground.
2. Support vehicle with jack stands under manufacturer jack points — never rely on the jack alone.
3. Before removing suspension fasteners, support axle/beam with a secondary jack or stand so the suspension does not drop uncontrolled.
4. Wear eye protection when removing rusted bolts (broken parts can fly).
5. If using penetrating oil, allow soak time (10–30 min) and reapply as needed.
6. Use correct rated tools; do not extend breaker bar with cheater pipe unless you know bolt will not shear.
General notes for Isuzu 4BB1 / 4BD1 / 6BB1 / 6BD1 / 6BG1 / 4BDIT / 6BD1T / 6BG1T platforms
- Anti‑roll bars and mounting hardware differ by model year/chassis (cab‑chassis, pickup, truck). Always verify part numbers for front vs rear, left/right orientation.
- Torque specs vary; consult the specific Isuzu workshop manual. If unavailable, use the bolt‑size torque guide: M8 ≈ 25 Nm, M10 ≈ 50 Nm, M12 ≈ 80 Nm, M14 ≈ 120 Nm, M16 ≈ 180–200 Nm as approximate reference only.
Step‑by‑step replacement (front or rear anti‑roll bar — adapt orientation as needed)
1. Preparation
a. Park level, set parking brake, chock rear wheels.
b. Loosen wheel lug nuts slightly if replacing front sway bar and you will remove wheels.
c. Raise vehicle and place on stands under frame. Remove wheel(s) for access.
2. Support suspension
a. Place a hydraulic jack or stand under the axle/beam or control arm to support the suspension so the bar is not under load when you remove links. Keep jack contact on safe lifting point.
b. Do NOT let suspension hang uncontrolled.
3. Access & inspect
a. Locate anti‑roll bar, bushings/clamps, and end links. Clean surrounding dirt with wire brush and degreaser so fasteners are visible.
b. Apply penetrating oil to end link studs and bracket bolts; allow soak.
4. Remove end links
a. If end links have nuts on studs: hold the stud with wrench/hex and remove nut with socket. If stud spins, use ball‑joint separator or clamp to stop rotation.
b. For ball‑joint type end link, use a puller or separator to break the taper; be careful not to damage ball boot.
c. Remove lower + upper link fasteners as applicable and separate link from bar/axle. Replace end links if worn or bent.
5. Remove mounting brackets/bushings
a. Unbolt the bushing bracket(s). Some designs use two bolts each. Remove bolts; use breaker bar or impact if seized.
b. Pry the old rubber bushings off the bar or split them open if they are slit type. Inspect bracket and mounting points; clean paint/rust with wire brush.
6. Remove the anti‑roll bar
a. With links and brackets removed, pry the bar from between chassis and axle/arms. Use a pry bar and rubber mallet to free any corrosion. Be careful not to overstress brake lines, ABS wires, or hoses — zip‑tie them out of the way.
b. Remove bar from vehicle.
7. Prepare new bar & parts
a. Compare new bar to old for correct bends, mount locations and tube diameter.
b. Fit new bushings onto bar (many are split/slit; open and slide into position). Apply a thin film of silicone rubber grease to bushing inner face to prevent squeak and ease installation. Do NOT use petroleum greases on rubber.
c. Fit new brackets/clamps if supplied.
8. Install anti‑roll bar
a. Position the bar into place carefully, making sure bar arms clear chassis and brake lines. Start with one end and feed bar into bracket locations.
b. Fit bushing brackets loosely over bushings — do not fully torque yet.
9. Install end links
a. Connect lower/upper end links to bar and axle. If using new hardware, insert studs and hand‑tighten nuts. Use threadlocker on bolts if specified.
b. For tapered studs, align and press into seat; torque only after suspension is at ride height if required by manual (see note below).
10. Final tightening & torqueing
a. Lower vehicle so suspension bears weight (some manufacturers require bracket and link fasteners tightened at normal ride height to avoid preloading bushes). Check Isuzu manual — if unknown, lower to wheels on ground, then torque to spec.
b. Torque bracket bolts and end link nuts to Isuzu specified values. If spec not available, use approximate values for bolt sizes listed earlier. Use torque wrench correctly: set value, tighten smoothly until click/reading.
11. Check clearances & test
a. Cycle suspension through full droop/compression to check for binding or contact with lines.
b. Ensure end links and bar do not contact any chassis or exhaust.
c. Road test at low speed, listen for clunks; re‑check torque after 100–200 km.
How each tool is used (short)
- Floor jack & jack stands: lift and securely support vehicle. Always place stands on solid frame points.
- Socket/ratchet/breaker bar: remove and loosen nuts/bolts. Use breaker bar for stubborn fasteners; impact for quick removal but finish torque with torque wrench.
- Torque wrench: set desired torque, apply steady pressure until wrench clicks (click‑type) or reads target for beam/digital. Always re‑check critical fasteners.
- Penetrating oil: spray and let soak to free rusted bolts; reapply and tap with hammer to drive oil into threads.
- Ball‑joint separator/puller: used to break tapered joint of end link ball studs without damaging stud. Position between stud and cup and force stud out.
- Pry bar/rubber mallet: lever bar out of tight mounts and tap into position without deforming bar.
- Wire brush/cleaner: clean mounting surfaces for correct seating and to assess damage.
Common pitfalls & how to avoid them
- Reusing old bushings or brackets: old rubber is often compressed/rotted — always replace bushings and consider new brackets.
- Seized fasteners: apply penetrating oil and allow soak; heat cautiously with torch only if safe and no nearby flammable lines. Use proper extractor sockets if head rounds.
- Not supporting suspension: removing end links without supporting axle can cause sudden drop and injury/damage.
- Incorrect torque or torquing with suspension unloaded: may pre‑load bushings and cause premature wear or noise. Follow manual — if unknown, torque with vehicle on ground.
- Damaging ABS/brake lines or wiring when removing bar: secure and check routing before final assembly.
- Over‑greasing or using wrong grease (petroleum on rubber): use silicone or manufacturer‑approved grease only.
Replacement parts recommended
- New rubber or polyurethane bushings (model specific).
- New bushing brackets/clamps and bolts if corroded.
- New end links (especially if ball joints are worn).
- New bolts/nuts/washers for mounting if original hardware shows corrosion or stretch.
- Anti‑roll bar itself only if bent, cracked, or excessively corroded.
Final notes
- Always confirm torque specs and any vehicle‑specific instructions from the Isuzu workshop manual for the particular chassis/model year.
- Inspect related suspension components (bushings, control arms, ball joints) while you have access.
Done.
rteeqp73
